UPS APC Smart-UPS C

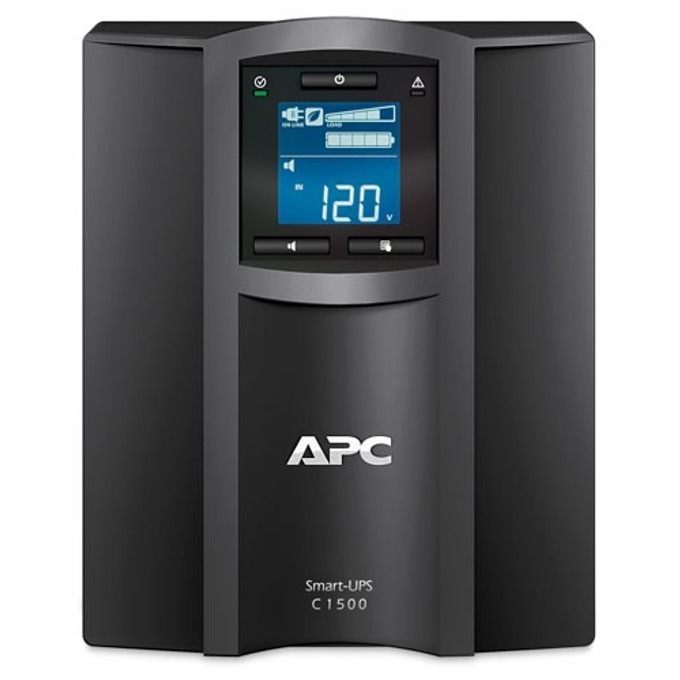

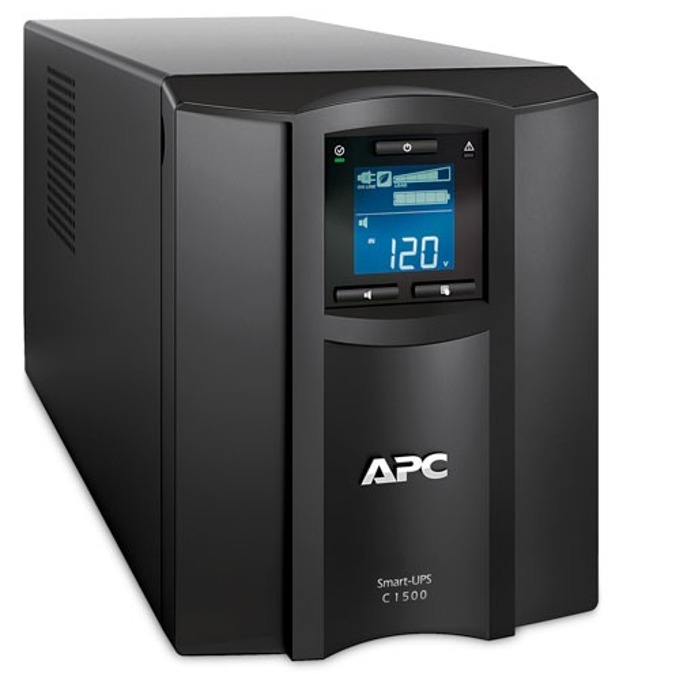

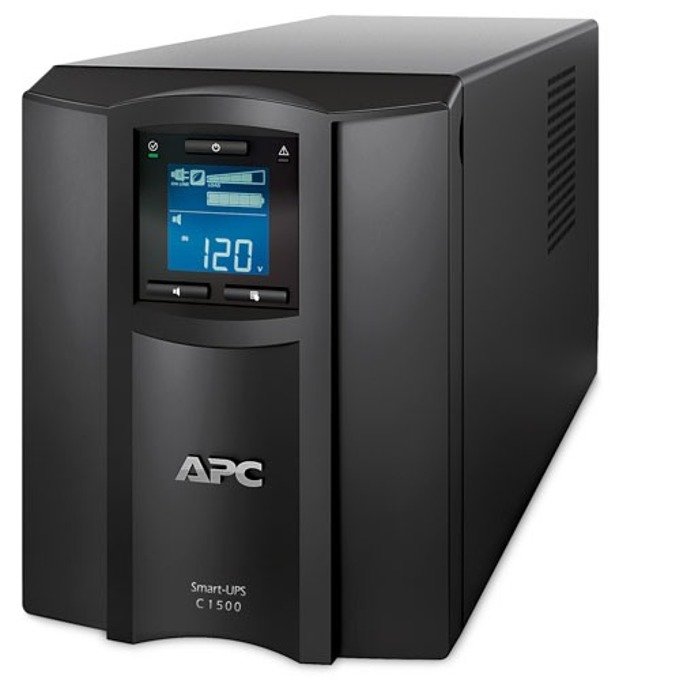

APC Smart-UPS C 1500VA LCD 230V with SmartConnect

SMC1500IC

Output

Output power capacity
900Watts / 1.5 kVA

Max Configurable Power (Watts)
900Watts / 1.5 kVA

Nominal Output Voltage
230V

Output Voltage Distortion
Less than 5%

Output Frequency (sync to mains)
50/60Hz +/- 3 Hz

Other Output Voltages
220, 240

Topology
Line Interactive

Waveform type
Sine wave

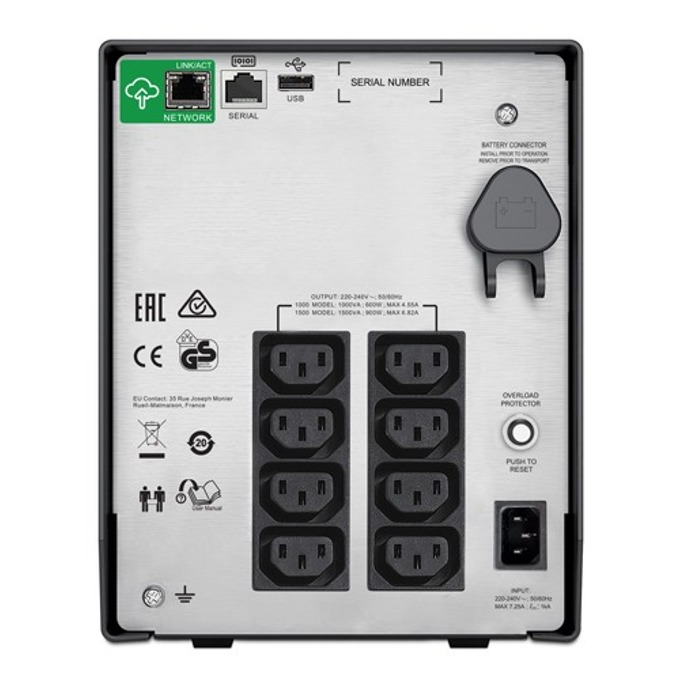

Output Connections
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)

Transfer Time
6ms typical : 10ms maximum

Input

Nominal Input Voltage
230V

Input frequency
50/60 Hz +/- 3 Hz (auto sensing)

Input Connections
IEC-320 C14

Input voltage range for main operations
180 - 287V

Input voltage adjustable range for mains operation
170 - 300V

Other Input Voltages
220, 240

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time
3hour(s)

Replacement Battery
RBC6

Expected Battery Life (years)
3 - 5

RBC Quantity
1

Runtime
View Runtime Graph
View Runtime Chart

Communications & Management

Interface Port(s)
USB

Control panel
Multi-function LCD status and control console

Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)
--

Surge Protection and Filtering

Surge energy rating
459Joules

Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height
