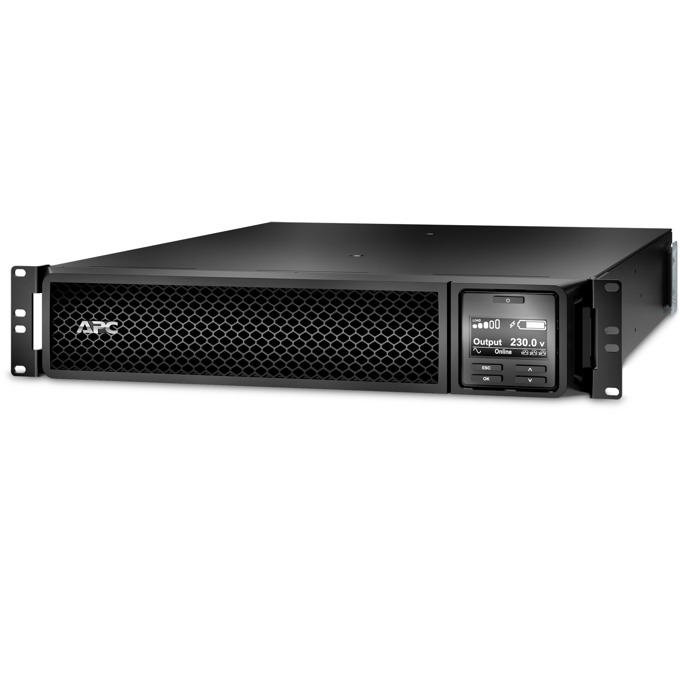

UPS APC Smart SRT в комплект с UPS APC Back-UPS Connect 12V/36W

Technical Specifications

Output

Output power capacity

1.5kWatts / 1.5kVA

Max Configurable Power (Watts)

1.5kWatts / 1.5kVA

Nominal Output Voltage

230V

Output Voltage Distortion

Less than 2%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double Conversion Online

Waveform type

Sine wave

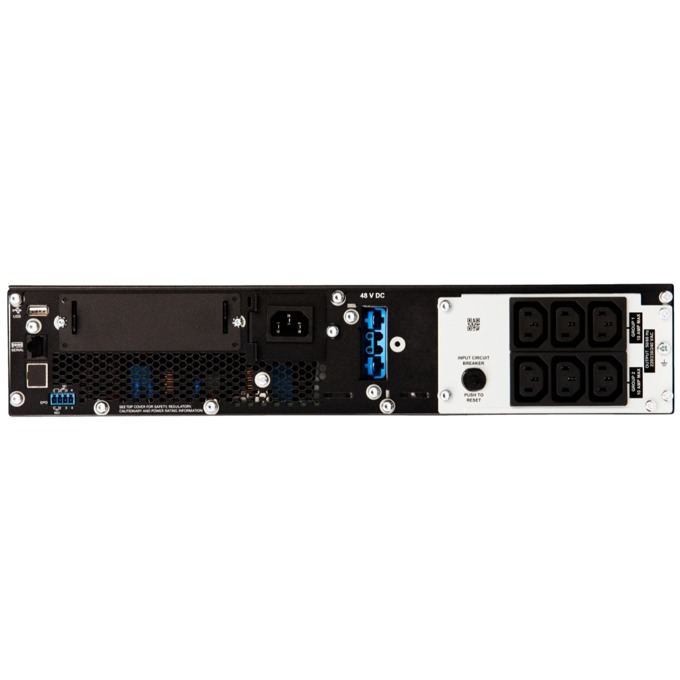

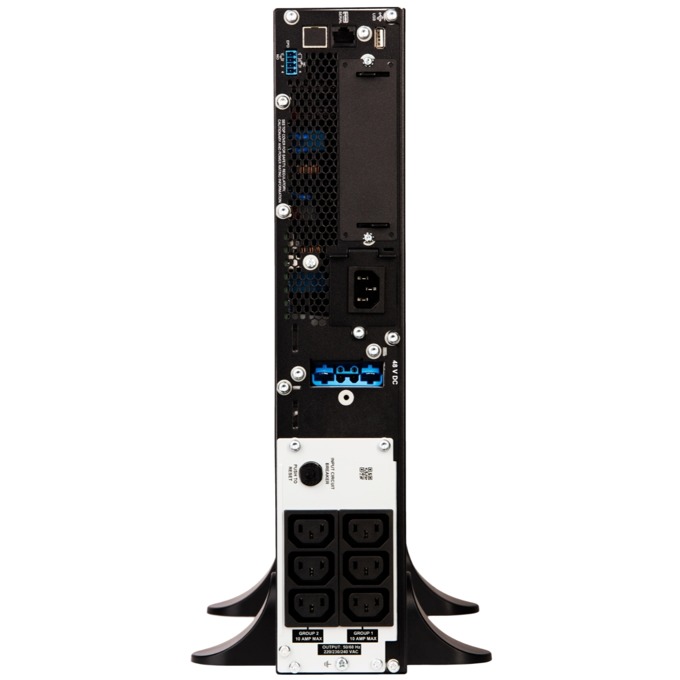

Output Connections

(6) IEC 320 C13 (Battery Backup)

Bypass

Built-in Bypass

Input

Nominal Input Voltage

230V

Input frequency

40 - 70 Hz (auto sensing)

Input Connections

IEC-320 C14

Cord Length

1.83meters

Input voltage range for main operations

100 - 275V

Number of Power Cords

1

Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Included Battery Modules

1

Typical recharge time

3hour(s)

Nominal Battery Voltage

48V

Replacement Battery

APCRBC155

Expected Battery Life (years)

3 - 5

Extendable Run Time

1

Battery Volt-Amp-Hour Capacity

324

Extended Run Options

APC-Smart-UPS-SRT-1500VA-230V

Runtime

View Runtime Graph

View Runtime Chart

Communications & Management

Interface Port(s)

RJ-45 Serial, Smart-Slot, USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

432Joules

Physical

Maximum Height
