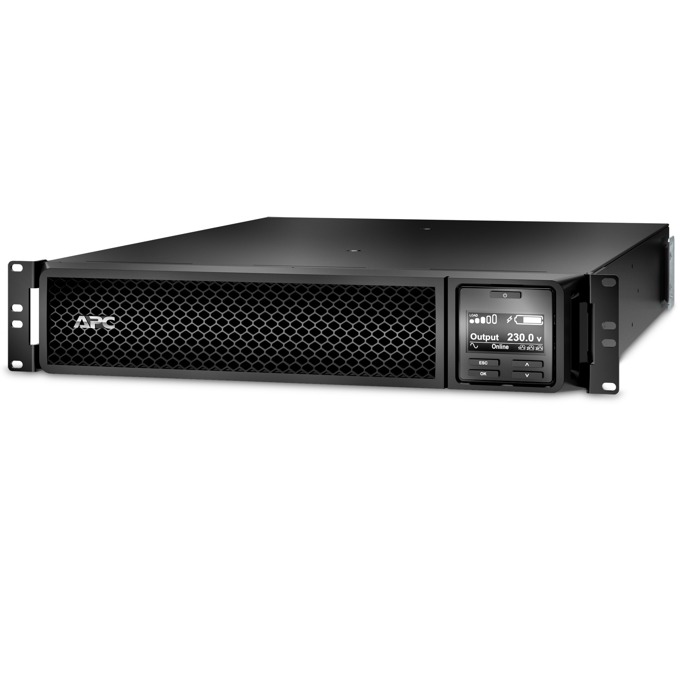

UPS APC Smart SRT 1000VA / 1000W 230V

Technical Specifications

Output

Output power capacity 1.0kWatts / 1.0kVA Max Configurable Power (Watts) 1.0kWatts / 1.0kVA Nominal Output Voltage 230V Output Voltage Distortion Less than 2% Output Frequency (sync to mains) 50/60Hz +/- 3 Hz Other Output Voltages 220, 240 Load Crest Factor 3 : 1 Topology Double Conversion Online Waveform type Sine wave Output Connections (6) IEC 320 C13 (Battery Backup) Bypass Built-in Bypass

Input

Nominal Input Voltage 230V Input frequency 40 - 70 Hz (auto sensing) Input Connections IEC-320 C14 Cord Length 1.83meters Input voltage range for main operations 50-150 (40% Load), 80 - 150V Number of Power Cords 1 Other Input Voltages 220, 240

Batteries & Runtime

Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Included Battery Modules 1 Typical recharge time 3hour(s) Nominal Battery Voltage 48V Replacement Battery APCRBC155 Expected Battery Life (years) 3 - 5 RBC Quantity 1 Extendable Run Time 1 Battery Volt-Amp-Hour Capacity 293 Extended Run Options APC-Smart-UPS-SRT-1000VA-230V Runtime View Runtime Graph View Runtime Chart

Communications & Management

Interface Port(s) RJ-45 Serial, Smart-Slot, USB Control panel Multi-function LCD status and control console Audible Alarm Audible and visible alarms prioritized by severity Emergency Power Off (EPO) Yes Available SmartSlot™ Interface Quantity 1

Surge Protection and Filtering

Surge energy rating 432Joules

Physical

Maximum Height 432MM, 43.2CM Maximum Width 85MM, 8.5CM Maximum Depth 505MM, 50.5CM Net Weight 20.5KG Shipping weight 29.6KG Shipping Height 246MM, 24.6CM Shipping Width 594MM, 59.4CM Shipping Depth 749MM, 74.9CM Color Black Units per Pallet 12.0

Environmental

Operating Temperature 0 - 40 °C Operating Relative Humidity 0 - 95 (non-condensing) % Operating Elevation 0-3000meters Storage Temperature -20 - 50 °C Storage Relative Humidity 0 - 95 (non-condensing) % Storage Elevation 0-15000meters Audible noise at 1 meter from surface of unit 50.0dBA Online thermal dissipation 317.0BTU/hr Protection Class IP 20
