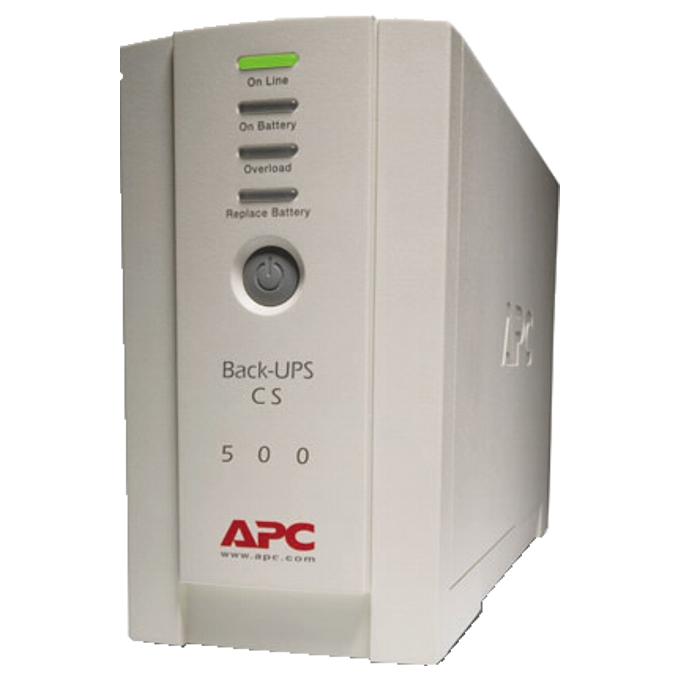

UPS APC Back-UPS

Output

Output Power Capacity - 300 Watts / 500 VA

Max Configurable Power - 300 Watts / 500 VA

Nominal Output Voltage - 230V

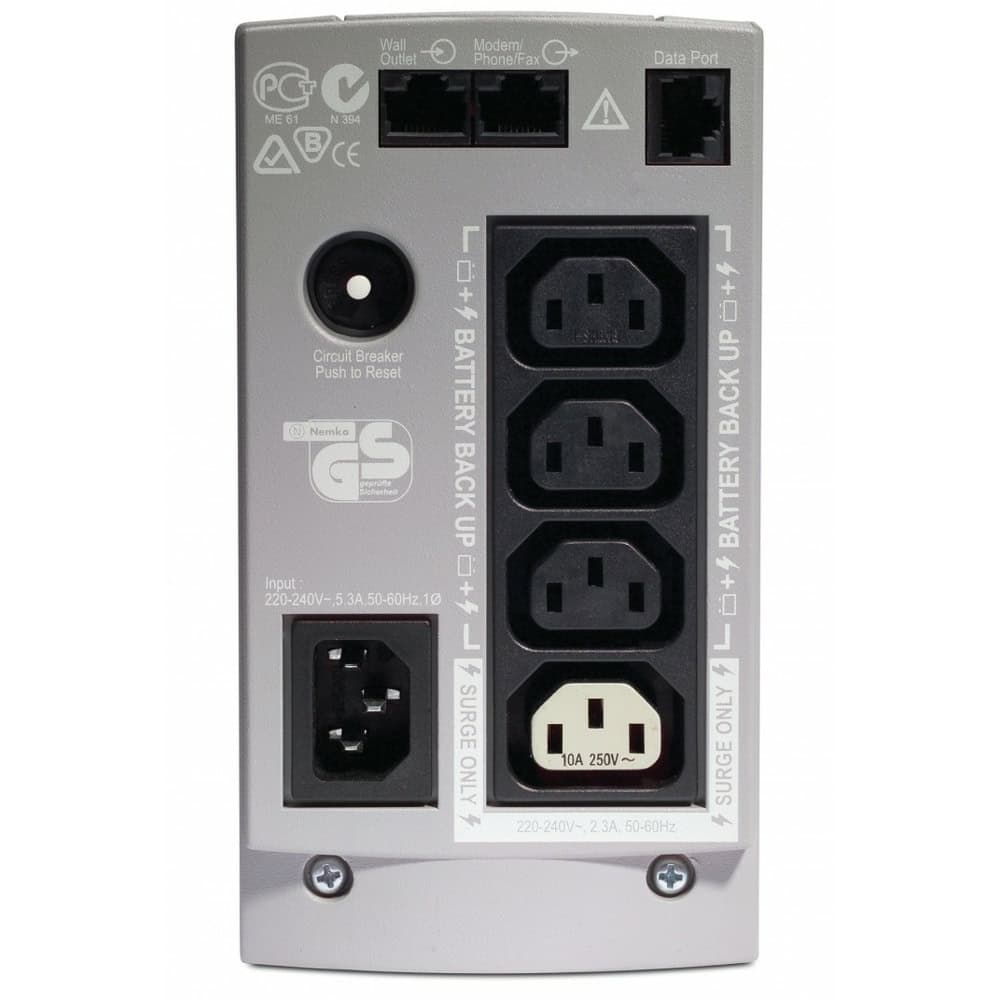

Output Connections -

(1) IEC 320 C13 (Surge Protection)

(3) IEC 320 C13 (Battery Backup)

Input

Nominal Input Voltage - 230V

Input Frequency - 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections - IEC-320-C14 inlet

Cord Length - 1.83 meters

Input voltage range for main operations - 196 - 280V

Input voltage adjustable range for mains operation - 160 - 300V

Batteries & Runtime

Battery Type - Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time - 6 hour(s)

Replacement battery cartridge - RBC2

RBC™ Quantity - 1

Typical Backup Time at Half Load - 13.9 minutes (150 Watts)

Typical Backup Time at Full Load - 2.4 minutes (300 Watts)

Communications & Management

Interface Port(s) - DB-9 RS-232,USB
