Output
Output Power Capacity 210 Watts / 350 VA
Max Configurable Power 210 Watts / 350 VA
Nominal Output Voltage 230V

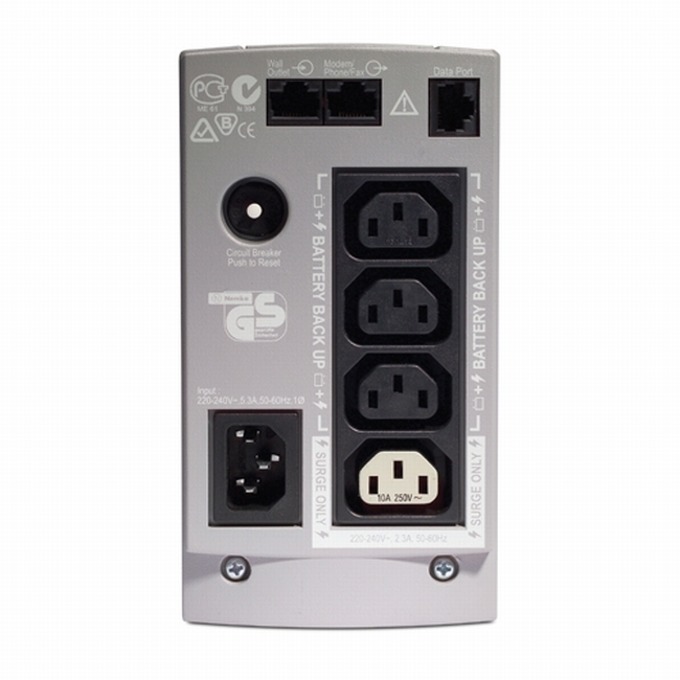

Output Connections
(1) IEC 320 C13 (Surge Protection)
(3) IEC 320 C13 (Battery Backup)
Input
Nominal Input Voltage 230V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections IEC-320-C14 inlet
Cord Length 1.83 meters
Input voltage range for main operations 196 - 280V
Batteries & Runtime
Battery Type - Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time - 6 hour(s)
Replacement battery cartridge - RBC2
RBC™ Quantity - 1
Typical Backup Time at Half Load - 18.1 minutes (105 Watts)
Typical Backup Time at Full Load - 4.7 minutes (210 Watts)
Communications & Management
Interface Port(s) - DB-9 RS-232,USB

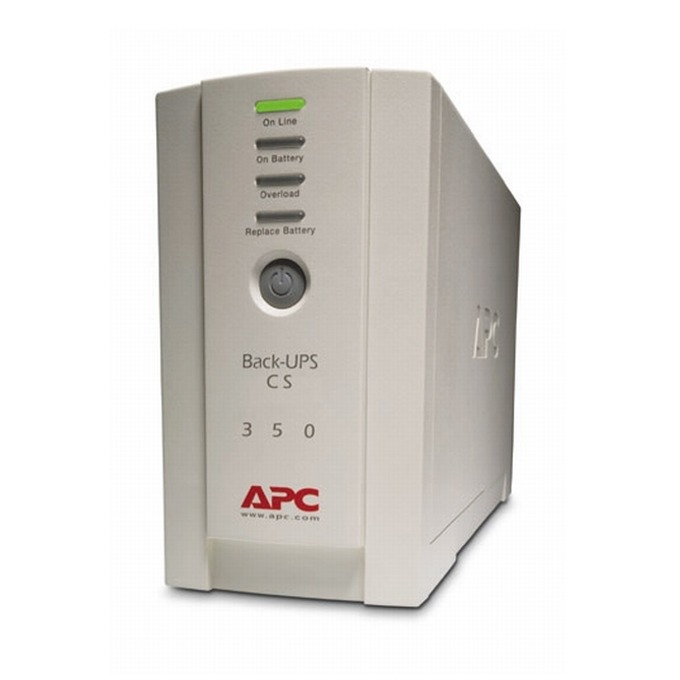

Control panel - LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm - Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating 300 Joules
Filtering - Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Dataline protection - RJ-45 Modem/Fax protection (two wire single line)
Physical
Output Power Capacity 210 Watts / 350 VA
Max Configurable Power 210 Watts / 350 VA
Nominal Output Voltage 230V
Output Connections
(1) IEC 320 C13 (Surge Protection)
(3) IEC 320 C13 (Battery Backup)
Input
Nominal Input Voltage 230V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections IEC-320-C14 inlet
Cord Length 1.83 meters
Input voltage range for main operations 196 - 280V
Batteries & Runtime
Battery Type - Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time - 6 hour(s)
Replacement battery cartridge - RBC2
RBC™ Quantity - 1
Typical Backup Time at Half Load - 18.1 minutes (105 Watts)
Typical Backup Time at Full Load - 4.7 minutes (210 Watts)
Communications & Management
Interface Port(s) - DB-9 RS-232,USB
Control panel - LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm - Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating 300 Joules
Filtering - Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Dataline protection - RJ-45 Modem/Fax protection (two wire single line)
Physical
Характеристики
| Physical | Maximum Height 165.00 mm |
| Maximum Width 91.00 mm | Maximum depth 284.00 mm |
| Net Weight 6.32 KG | Environmental |
| Operating Environment 0 - 40 °C | Operating Relative Humidity 0 - 95% |
