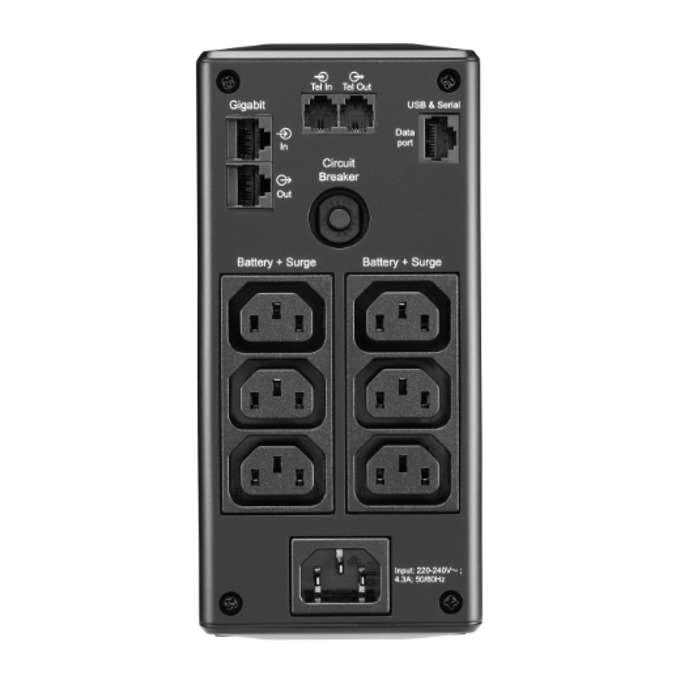

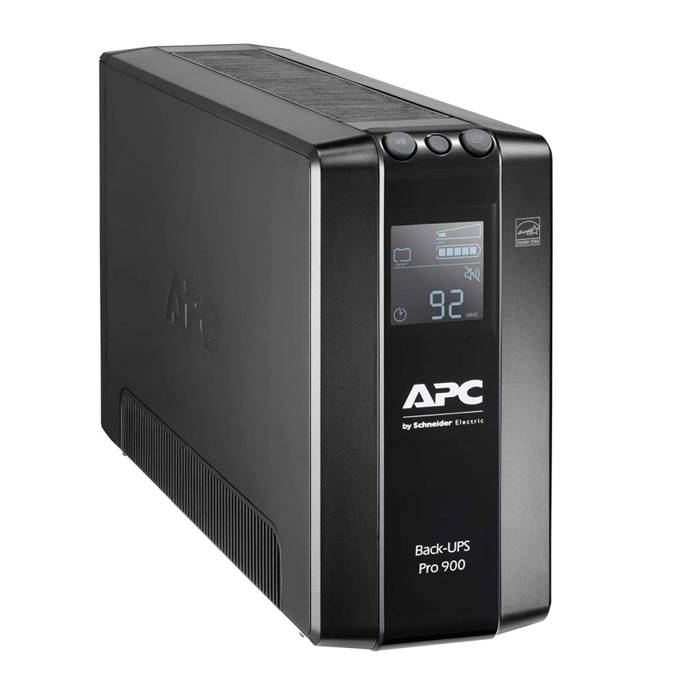

UPS APC Back UPS Pro BR BR900MI
Technical Specifications
Output
Max Configurable Power (Watts): 540Watts / 900VA
Output Frequency (sync to mains): 50/60 Hz +/-1 Hz
Topology: Line Interactive
Waveform type: Stepped approximation to a sinewave
Transfer Time: 10ms typical : 12ms maximum
Input
Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations: 176 - 294V
Batteries & Runtime
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Battery Volt-Amp-Hour Capacity: 128
Communications & Management
Interface Port(s): USB
Control panel: Multi-function LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating: 310JoulesControl panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators
Physical
Технически характеристики
| Max Configurable Power (Watts) | 540Watts / 900VA |
| Topology | Line Interactive |
| Waveform type | Stepped approximation to a sinewave |
| Transfer Time | 10ms typical : 12ms maximum |
| Input frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Interface Port(s) | USB |
| Control panel | Multi-function LCD status and control console |
| Surge energy rating | 310JoulesControl panel |
| Maximum Height | 190MM, 19.0CM |
| Maximum Width | 91MM, 9.1CM |
| Maximum Depth | 310MM, 31.0CM |
| Нето тегло | 7.0KG |
| Shipping weight | 8.0KG |
| Shipping Height | 255MM, 25.5CM |
| Shipping Width | 440MM, 44.0CM |
| Shipping Depth | 143MM, 14.3CM |
| Master Carton Units | 2.0 |
| Master Carton Weight | 16.85 |
| Работна температура | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95 % |
| Operating Elevation | 0-3000meters |
| Температура на съхранение | -15 - 45 °C |
| Storage Relative Humidity | 0 - 95 % |
| Storage Elevation | 0-15000meters |
