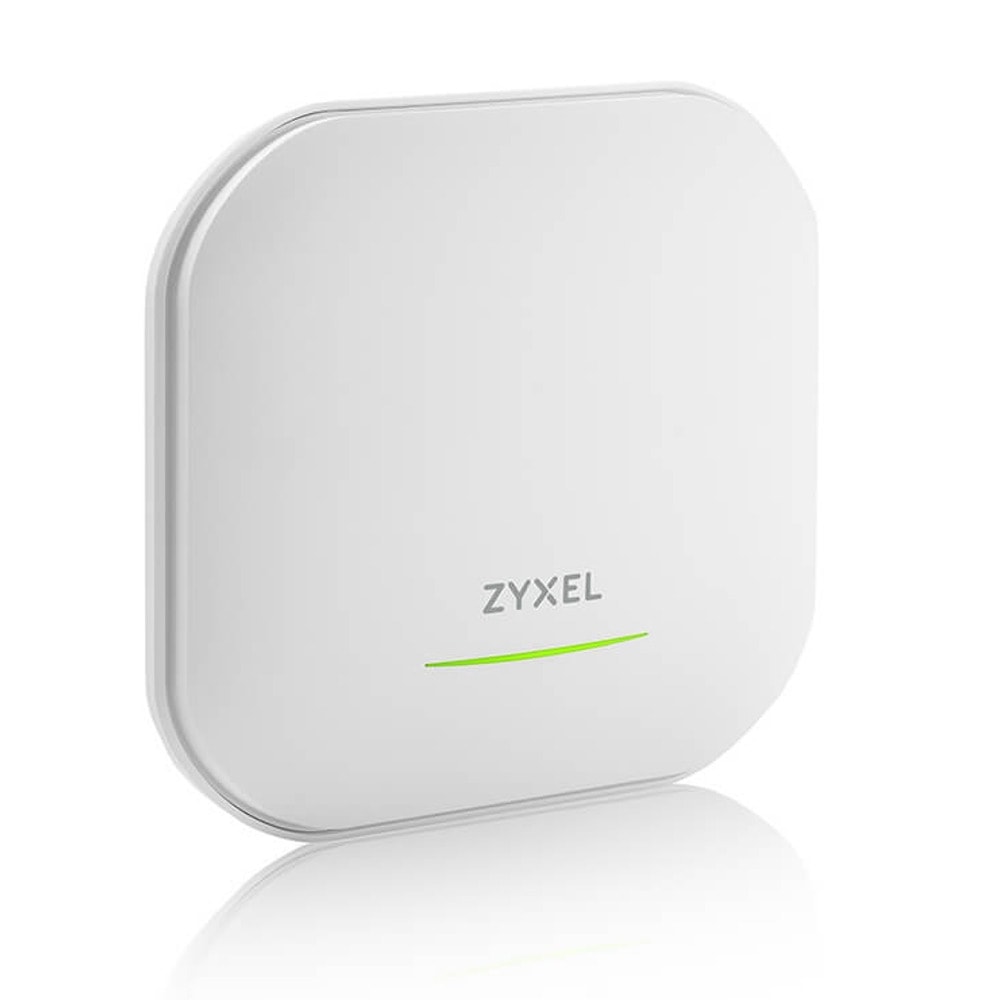

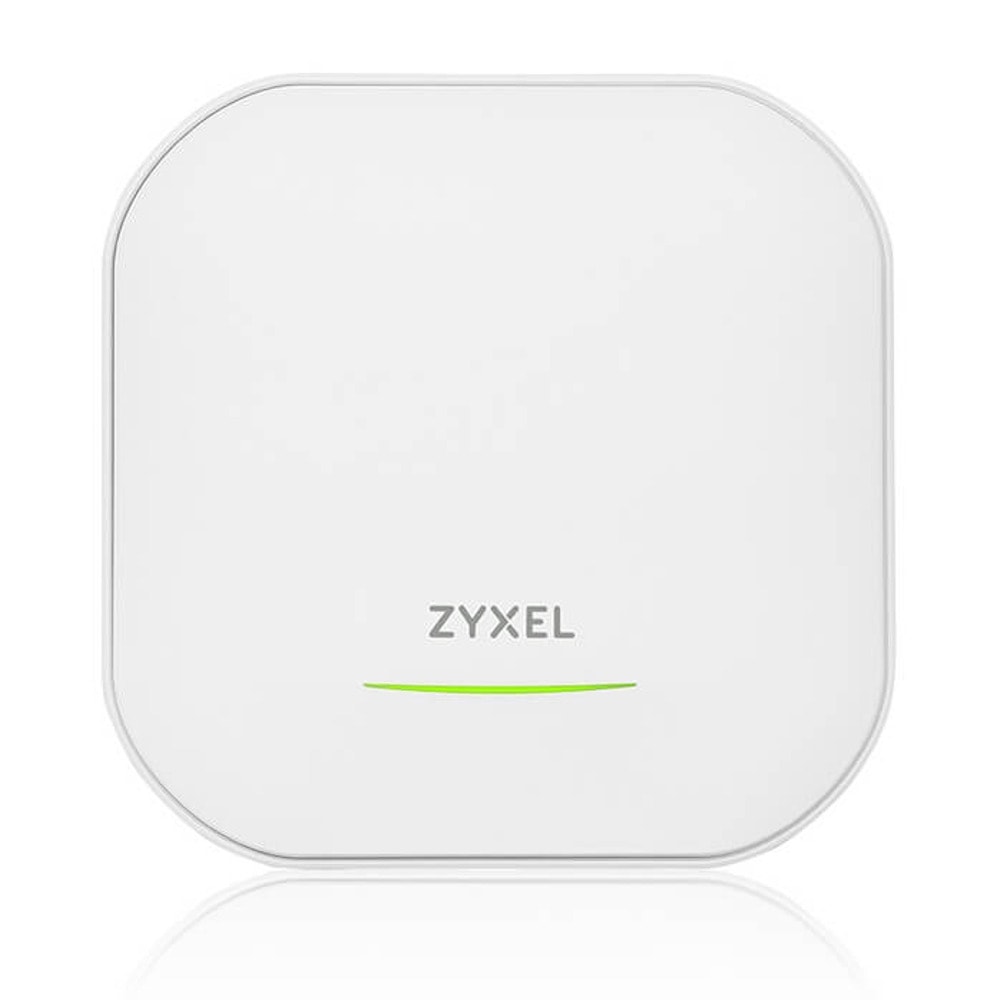

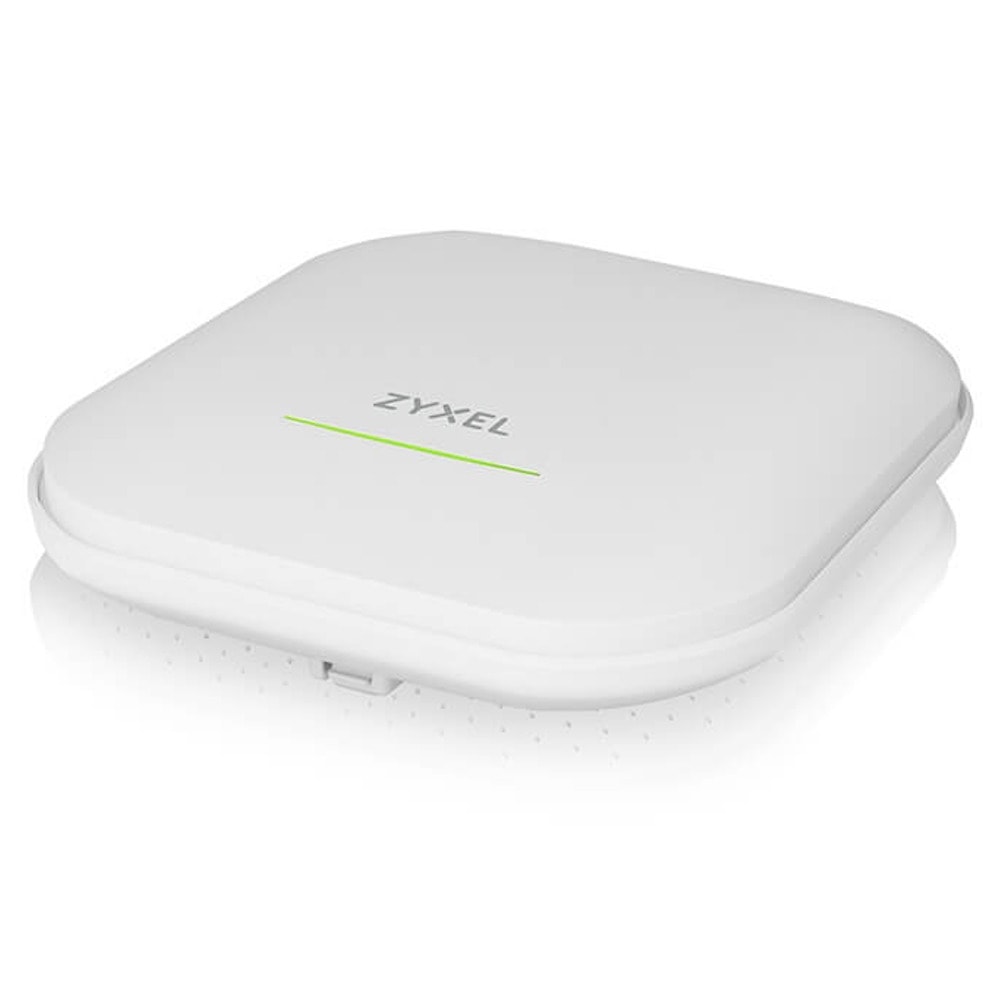

Точка за достъп ZyXEL NWA220AX-6E

WiFi 6E – the Fastest Speed EVER
WiFi 6E, the extended version of the WiFi 6, provides a huge innovation leap to wireless industry by taking it into a much wider 6GHz radio spectrum that more than doubles WiFi capacity to further meet today’s demands and tomorrow’s challenges.
It includes all the benefits of WiFi 6 capabilities like OFDMA, MU-MIMO, BSS Coloring, and brings them into the brand-new, interference-free 6GHz that more than doubles the WiFi capacity to deliver ultra-fast speed and low-latency connections.

NWA220AX-6E for High-density WiFi
WiFi 6E, the new 6 GHz band, presents a solution to quenching the thirst for today’s hunger for more bandwidth. The NWA220AX-6E’s BandFlex radio design allows the AP to support either 5GHz or 6GHz band by configuration, making it the most economical choice to fit into your existing 5GHz coverage, as well as futureproofing the use of 6Ghz. The NWA220AX-6E is a perfect choice for:

The Zyxel NWA220AX-6E is the dual-radio access point with a BandFlex radio design that can support either 5GHz or 6GHz by configuration, making it the most economical choice to fit into your existing 5GHz coverage as well as futureproofing the use of 6GHz.

Wireless
Conducted typical transmit output power*1
(limited by local regulatory requirements)
RF Design
WLAN Feature
Security
Networking
Management
Physical Specifications

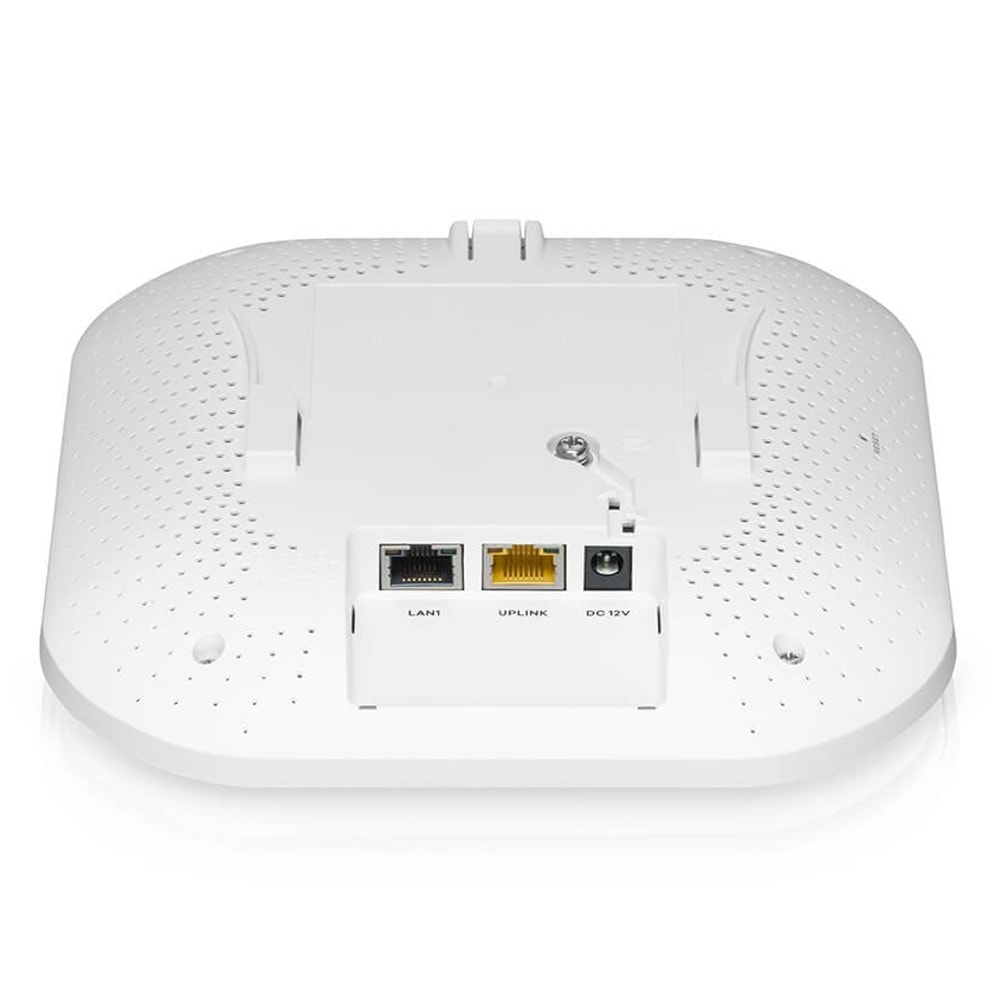

Physical Interfaces
Технически характеристики
| 2.4GHz | 575 Mbps |
| 5GHz | 4800 Mbps |
| 6GHz | 4800 Mbps |
| USA (FCC) | 2.412 to 2.462 GHz |
| Europe (ETSI) | 2.412 to 2.472 GHz |
| USA (FCC) | 5.15 to 5.35 GHz; 5.470 to 5.850 GHz |
| European (ETSI) | 5.15 to 5.35 GHz; 5.470 to 5.725 GHz |
| USA (FCC) | 5.925 to 6.425 GHz; 6.525 to 7.125 GHz |
| European (ETSI) | 5.925 to 6.425 GHz |
| US (2.4GHz/5GHz/6GHz) | 24/25/24dBm |
| EU (2.4GHz/5GHz/6GHz) | 18/22/19dBm |
| 2.4 GHz | Peak Gain 3dBi |
| 5 GHz | Peak Gain 5dBi |
| 6 GHz | Peak Gain 6dBi |
| PoE (802.3)at | power draw 21 W |
| DC input | 12 VDC 2A |
| IEEE802.3af | No Wireless |
| IEEE802.3at | Unrestricted |
| IEEE802.3bt | Unrestricted |
