Точка за достъп Zyxel NWA1123ACv3

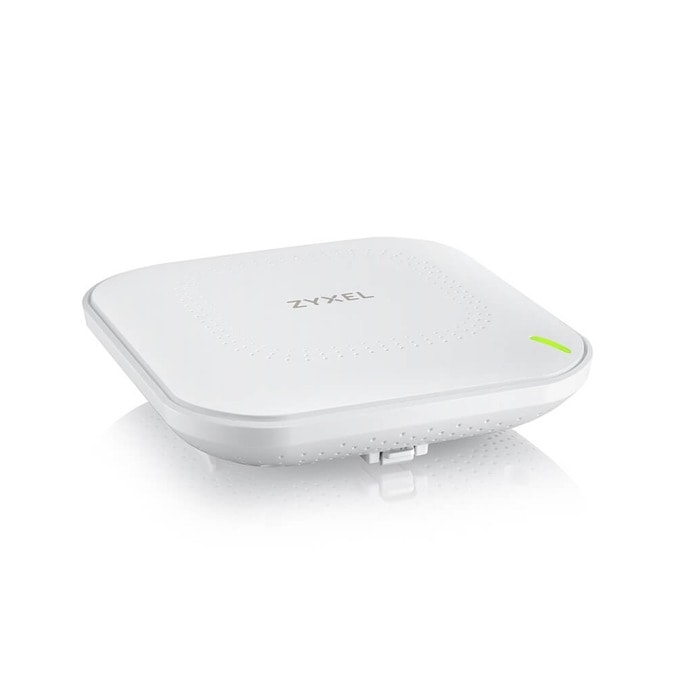

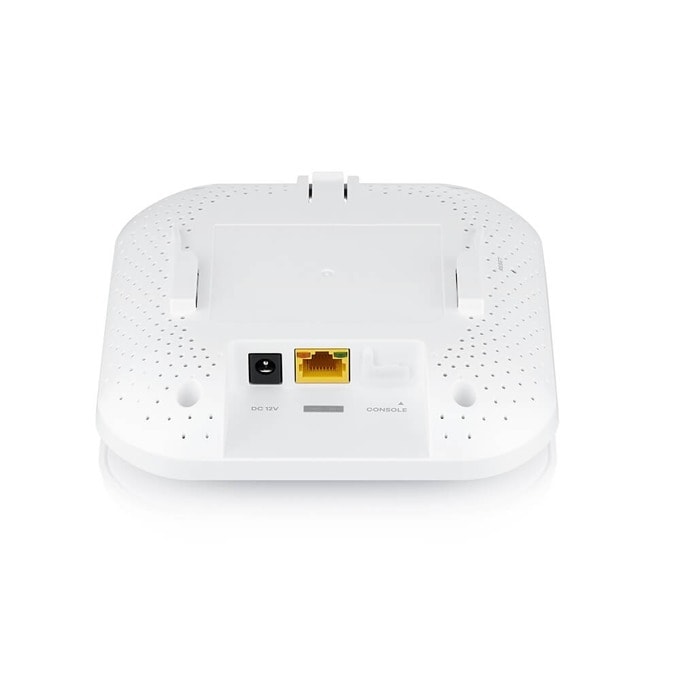

Zyxel NWA1123ACv3

Wireless
Standard IEEE802.11 ac/n/g/b/a
MIMO MU-MIMO

Wireless speedfications
2.4 GHz 300Mbps
5 GHz 866Mbps

Frequency band
2.4 GHz • USA (FCC): 2.412 to 2.462 GHz
• Europe (ETSI): 2.412 to 2.472 GHz
5 GHz • USA (FCC): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz
• European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Wireless
Bandwidth 20-, 40- and 80-MHz
Conducted typical transmit output power
US (2.4GHz/5GHz) 23/23dBm
EU (2.4GHz/5GHz) 19/23dBm

RF Design
Antenna type 2x2 MIMO Embedded Antenna
Antenna gain
2.4 GHz 3 dBi
5 GHz 4 dBi
Minimum receive sensitivity up to -99 dBm

WLAN feature
Band Steering Yes
WDS/ Mesh Yes
Fast roaming Pre-authentication, PMK caching and 802.11r/k/v
DCS Yes
Load balancing Yes

Security
encryption WEP/ WPA/WPA2-PSK/WPA3
authentication WPA/WPA2-Enterprise/ EAP/ IEEE 802.1X/ RADIUS authentication
Access management L2-isolation/ MAC filtering

Networking
IPv6 Yes
VLANs Yes
WMM Yes
U-APSD Yes
DiffServ marking Yes

Management
Operating mode Cloud managed / standalone

ZON Utility • Discovery of Zyxel switches, APs and gateways
• Centralized and batch configurations
- IP configuration
- IP renew
- Device reboot
- Device locating
- Web GUI access
- Firmware upgrade
- Password configuration

Zyxel Wireless Optimizer
• WiFi AP planning
• WiFi coverage detection
• Wireless health management

Web UI/ CLI Yes
SNMP Yes

Item Dimensions (WxDxH) (mm/in.)
140 x 140 x 37.5 /5.51 x 5.51 x 1.48
Weight (kg/lb.) 249/0.55
