Точка за достъп Ubiquiti UniFi U6 Mesh Pro
Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.
WiFi 6
4 spatial streams
185 m² (2,000 ft²) coverage with the integrated omnidirectional super antenna
350+ connected devices
Powered using PoE
GbE uplink with (1) GbE passthrough port

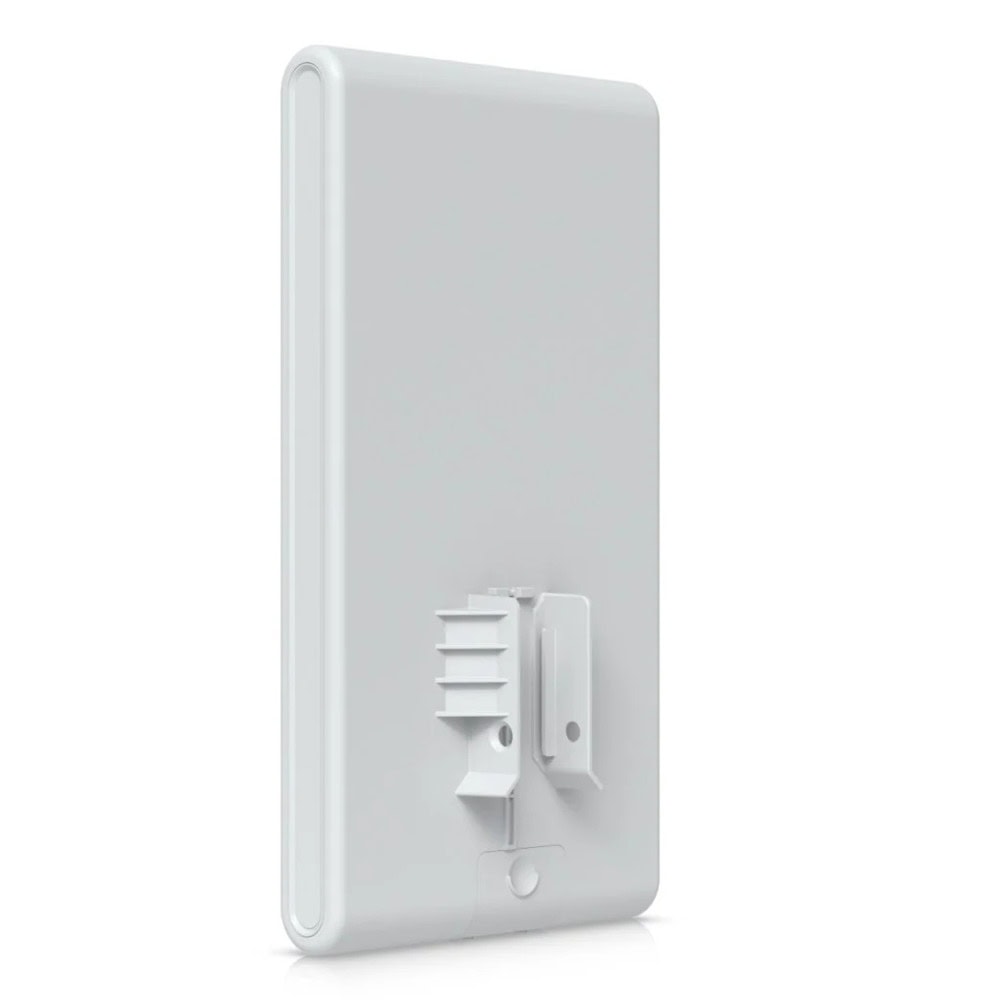

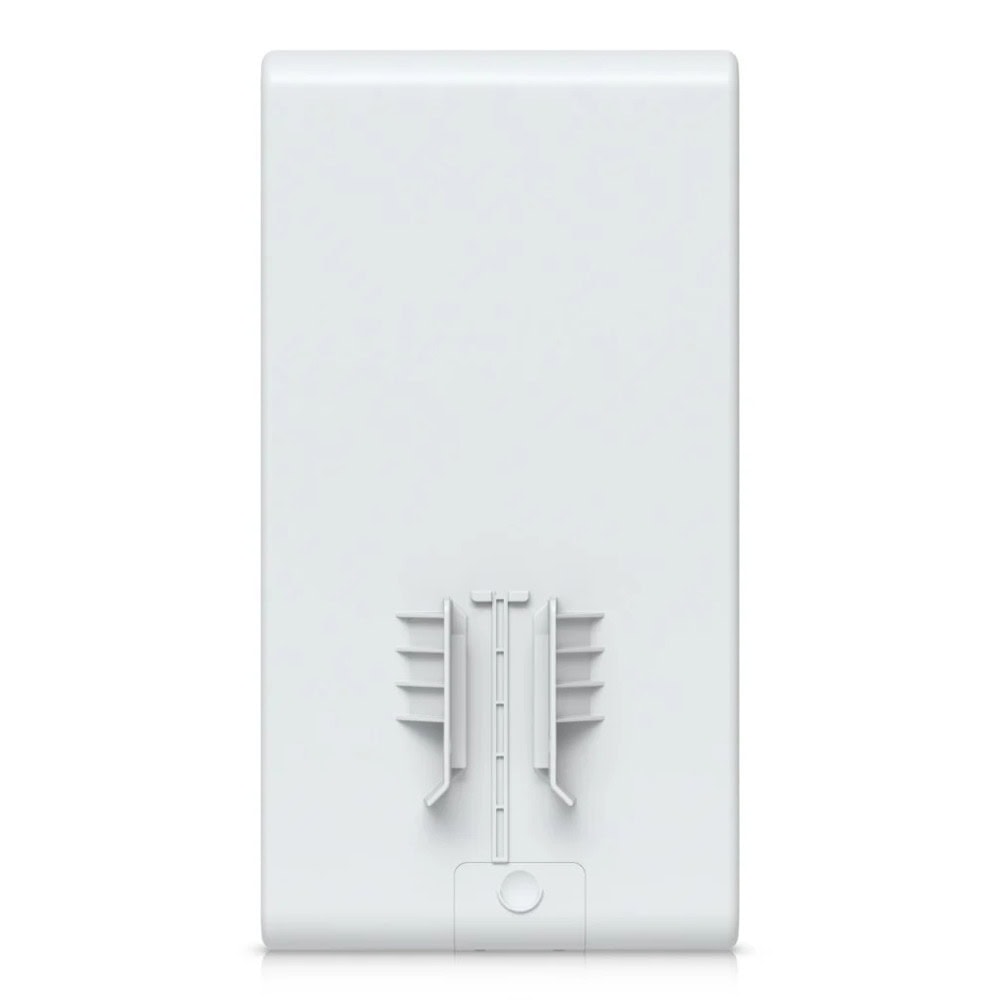

Versatile wall and pole mounting
Weatherproof (outdoor exposed)
Mechanical: Dimensions: 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
Weight: 819 g (1.8 lb)
Enclosure material: UV-stabilized polycarbonate
Mount material: Aluminum alloy, steel
Pole mount diameter: 1~2.5" on pipe outer diameter
Weatherproofing: IPX6

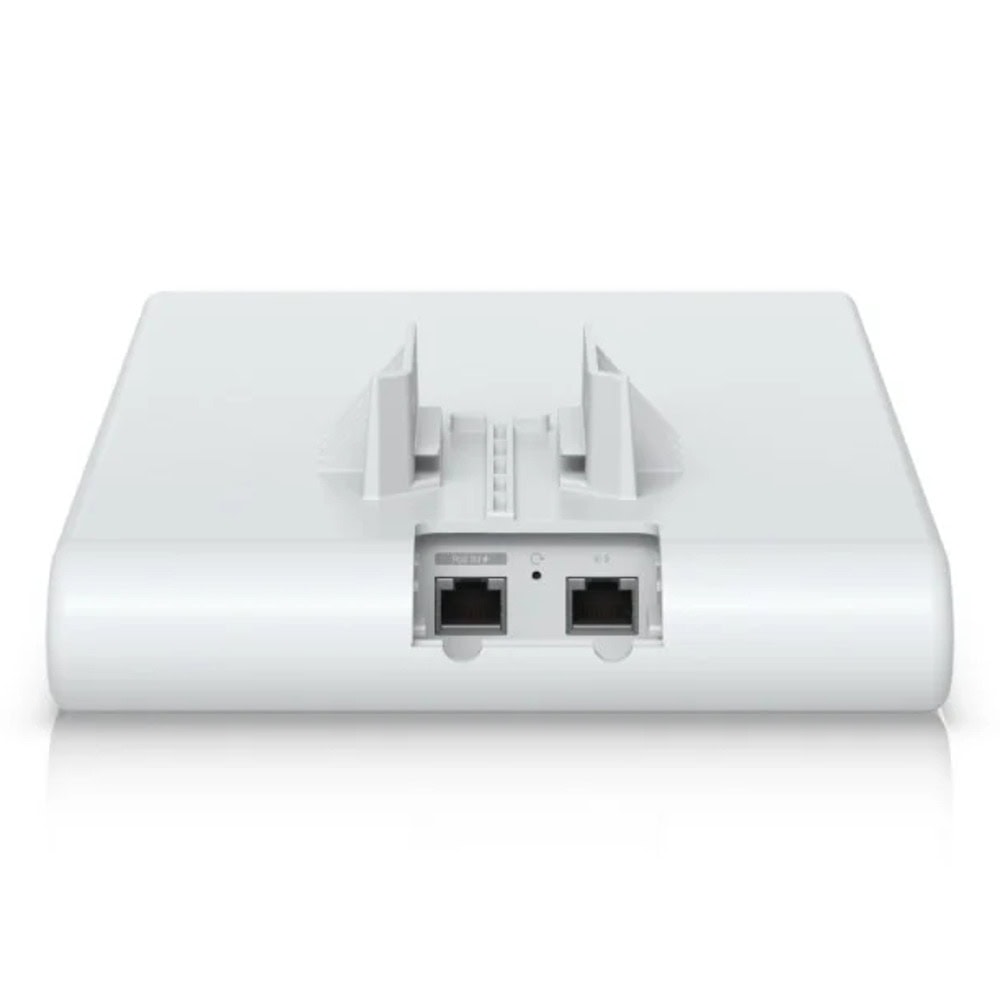

Hardware: Networking interface: (2) GbE RJ45 ports
Management interface: Ethernet, WiFi
Power method: PoE
Power supply: UniFi PoE switch, 48V, 0.5A PoE adapter (Included)
Supported voltage range: 42.5—57V DC
Max. power consumption: 9W
MIMO: 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
6 GHz: –
Software: WiFi standards: 802.11a/b/g/n/ac/ax (WiFi 6)
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 350+
Supported data rates: 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Технически характеристики
| Mechanical | Dimensions: 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4") |
| Тегло | 819 g (1.8 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Mount material | Aluminum alloy, steel |
| Pole mount diameter | 1~2.5" on pipe outer diameter |
| Weatherproofing | IPX6 |
| Hardware | Networking interface: (2) GbE RJ45 ports |
| Management interface | Ethernet, WiFi |
| Power method | PoE |
| Захранване | UniFi PoE switch, 48V, 0.5A PoE adapter (Included) |
| Supported voltage range | 42.5—57V DC |
| Max. power consumption | 9W |
| Max. TX power | 2.4 GHz: 22 dBm |
| 5 GHz | 27 dBm |
| 6 GHz | – |
| MIMO | 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | – |
| Max. data rate | 2.4 GHz: 573.5 Mbps (BW40) |
| 5 GHz | 2.4 Gbps (BW160) |
| 6 GHz | – |
| Antenna gain | 2.4 GHz: 8 dBi |
| 5 GHz | 8 dBi |
| 6 GHz | – |
| LEDs | White/blue |
| Button | Factory reset |
| Монтаж | Wall, pole (Included) |
| Ambient operating temperature | -30 to 60°C (-22 to 140°F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Софтуер | WiFi standards: 802.11a/b/g/n/ac/ax (WiFi 6) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 350+ |
| Supported data rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
