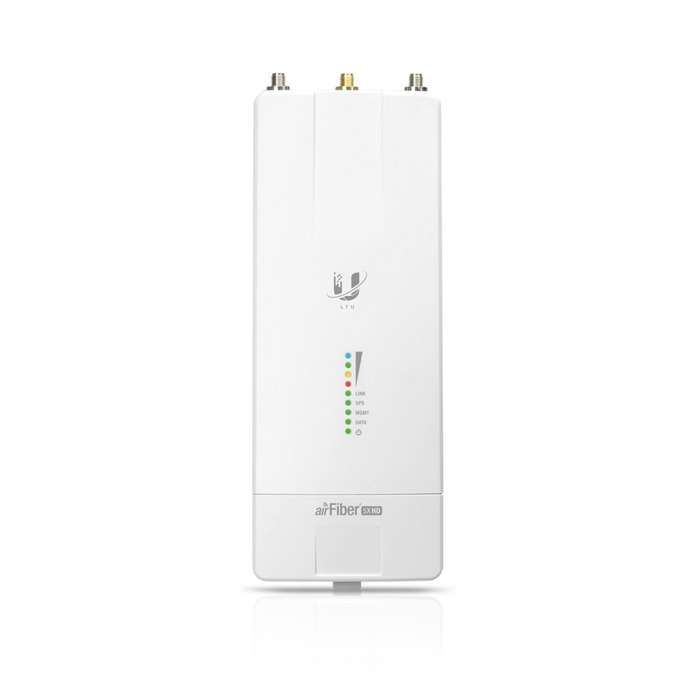

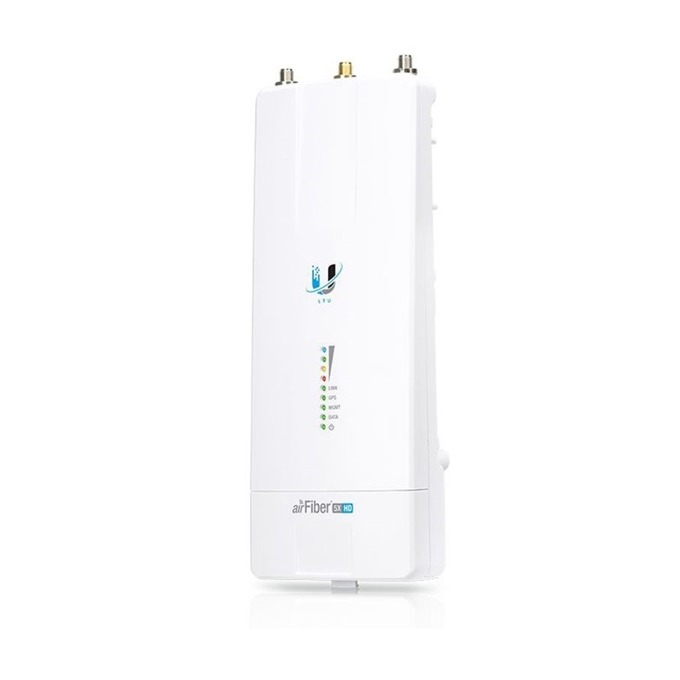

Точка за достъп Ubiquiti AF-5XHD

Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
Weight 0.35 kg (12.3 oz)
RF Connectors (2) RP-SMA Weatherproof (CH0, CH1)
(1) SMA Weatherproof (GPS)
GPS Antenna External, Magnetic Base
Power Supply 24V, 1A Gigabit PoE Adapter (Included)
Power Method Passive Power over Ethernet
Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
Max. Power Consumption 6-12W1
Supported Voltage Range +18 to +54VDC2
Mounting airFiber X Mount (Rocket Mount Compatible)
GPS Pole Mount (Included)
Operating Temperature -40 to 55° C (-40 to 131° F)
Weatherproofing IP673
Certifications CE, FCC, IC

Networking Interface
Data Port (1) 10/100/1000 Ethernet Port
Management Port (1) 10/100/1000 Ethernet Port
Bluetooth v4.0

System
Processor airFiber LTU IC
Maximum Throughput 1.34 Gbps4, 5
Maximum Range 100 km4
Packets per Second 2+ Million6
Latency 1.5 ms - 3.5 ms7
Encryption AES-256
OS airOS LTU
Wireless Modes Master/Slave

Radio
Frequency Range 5GHz
(Dependent on Regulatory Region)
Max. Conducted TX Power 29 dBm*
(Dependent on Regulatory Region)
Frequency Accuracy < 2 ppm
Channel Bandwidth 10/20/30/40/50/60/80/100 MHz Selectable
Programmable Uplink and Downlink Duty Cycles
