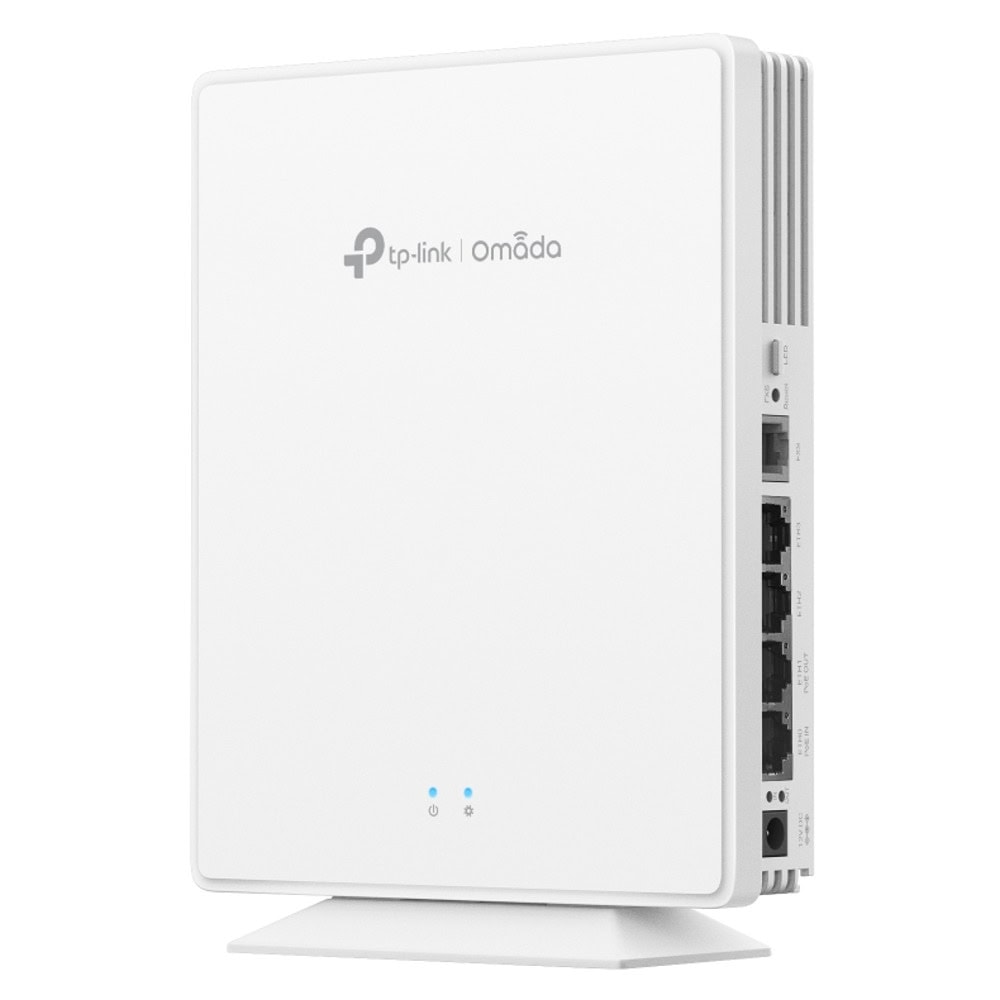

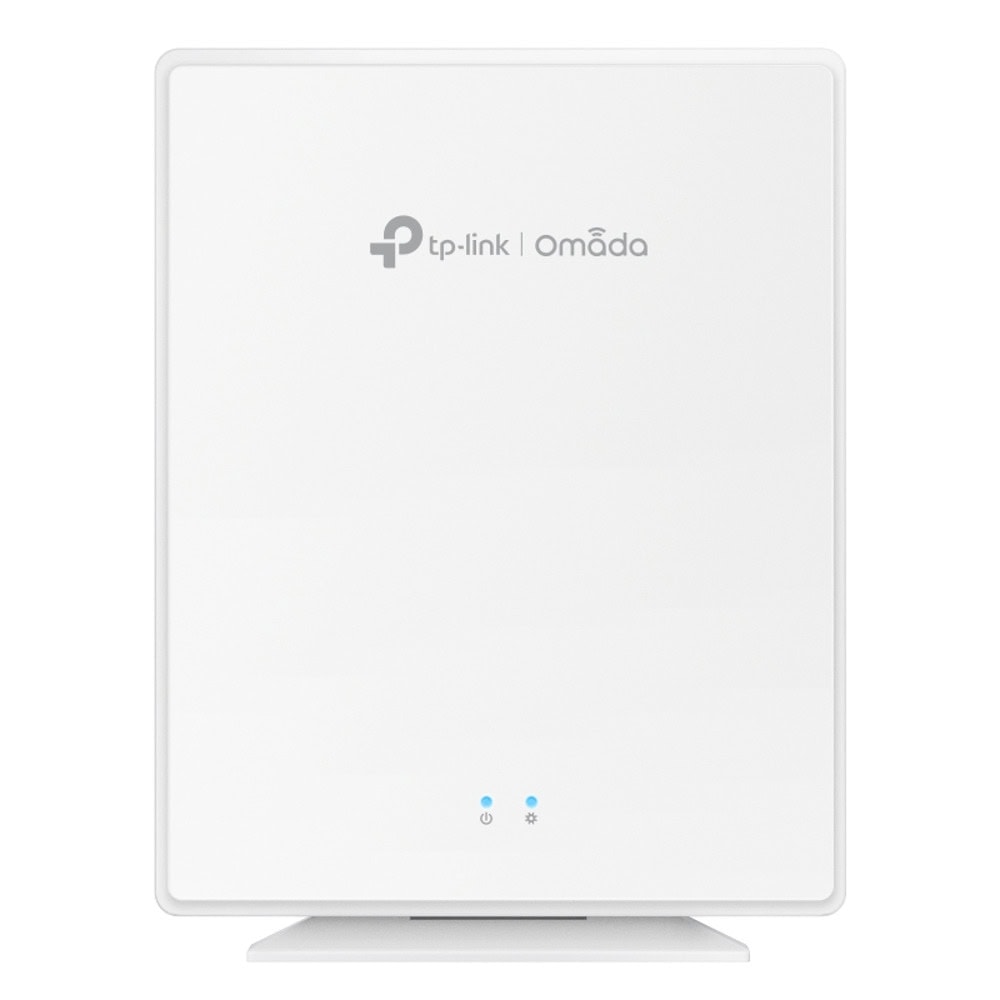

Точка за достъп TP-Link Omada EAP650-Desktop

TP-Link Omada EAP650-Desktop

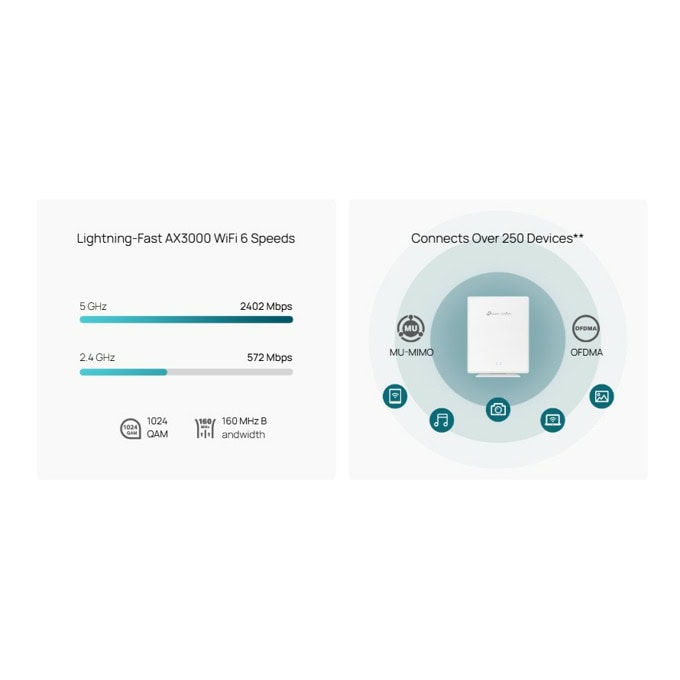

• Blazing-Fast AX3000 WiFi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps WiFi speeds. †
• Multiple Gigabit Ports: Connect multiple devices with 4× Gigabit Ethernet Ports.
• Convenient Deployment: Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment.
• No Installation needed: Supports desktop installation without the need for additional setup.

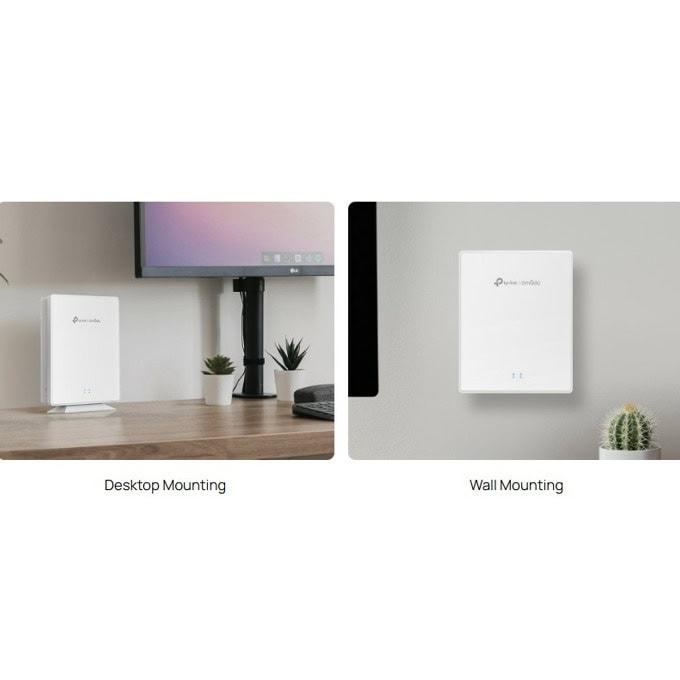

• High Flexibility: Provide flexible installation solutions for both desktop and wall mounting.

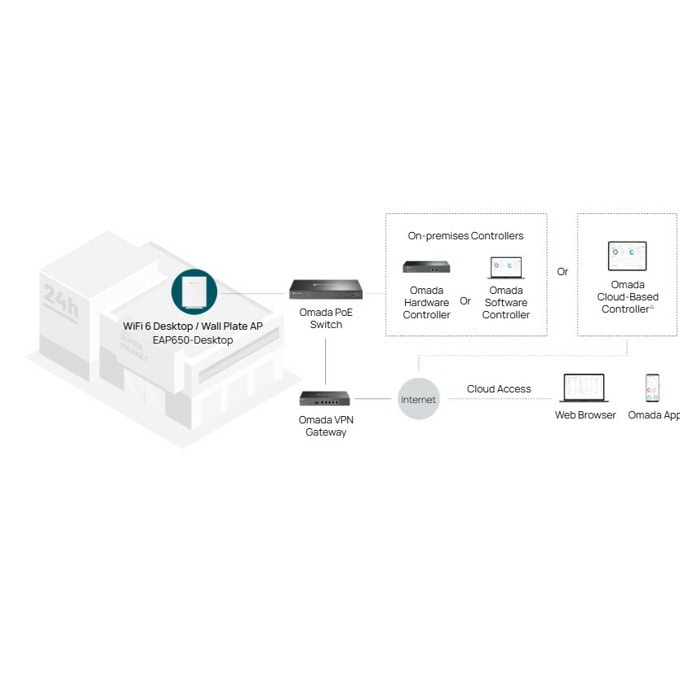

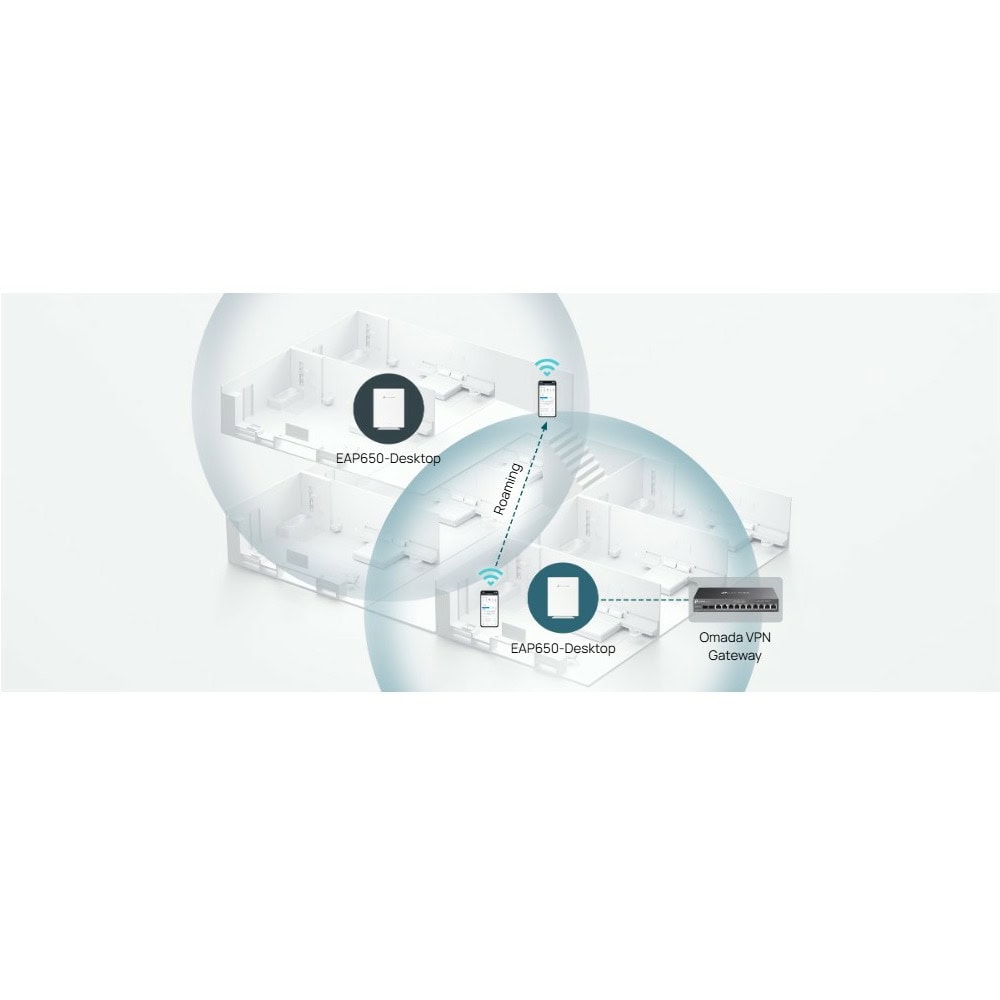

• Advanced Functions: Omada Mesh, Seamless Roaming, Centralized Cloud Management.§

Категория:

ХАРДУЕРНИ ХАРАКТЕРИСТИКИ

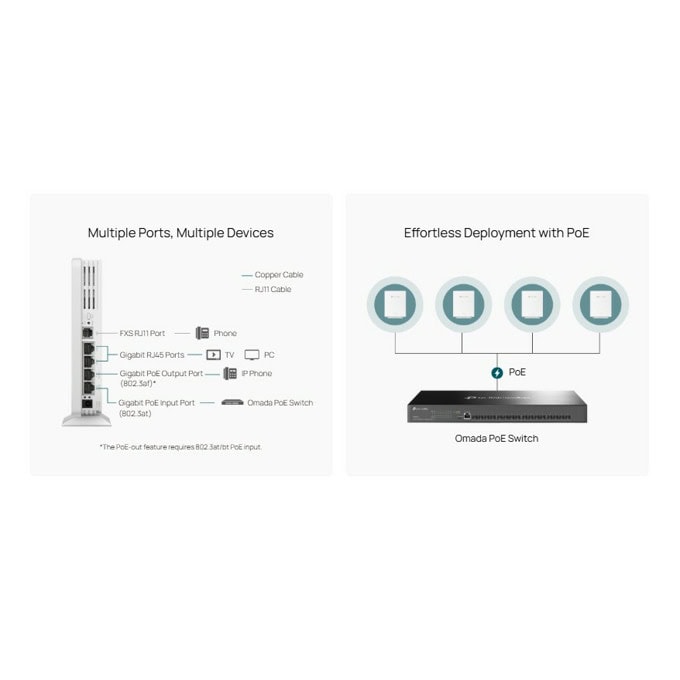

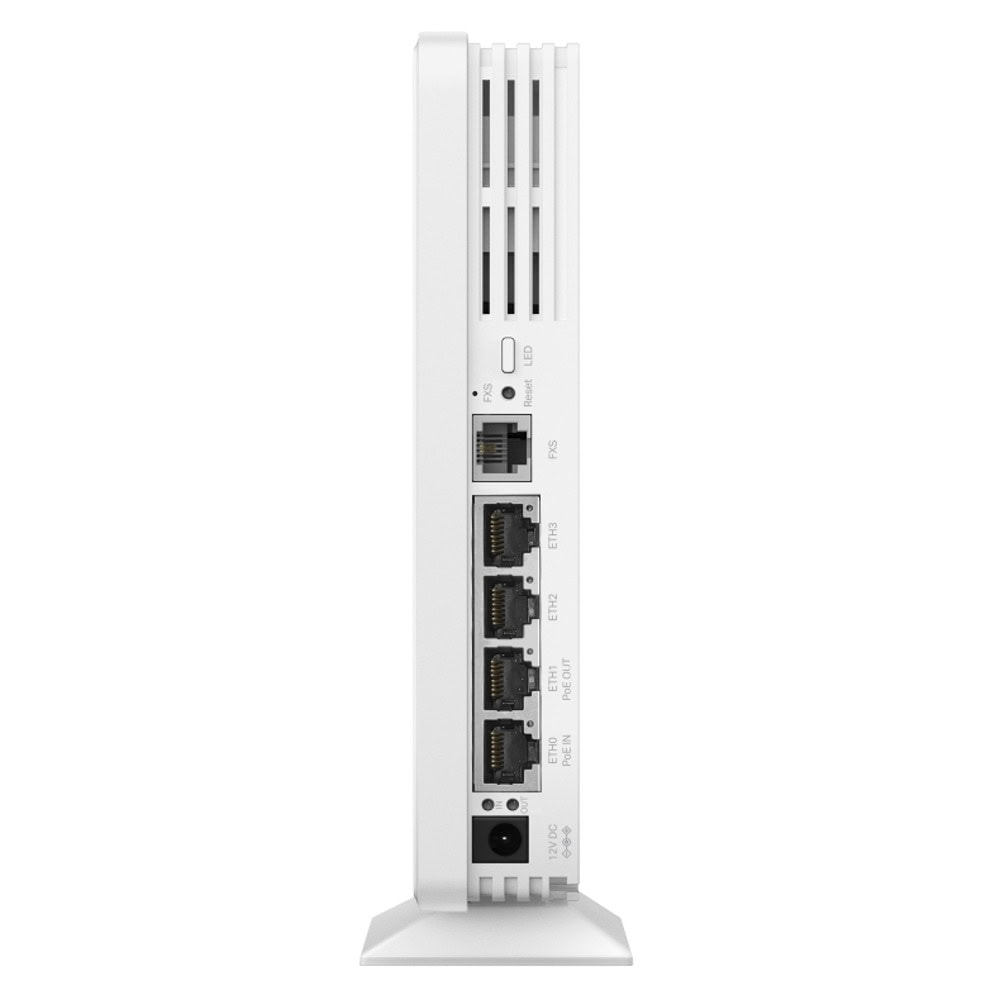

Интерфейс4× 1Gbps Ethernet Ports + 1× FXS Port (One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input)

Бутон• Reset • LED

Захранване802.3 af/at/bt PoE or 12V/1.5A DC *PoE Out requires 802.3at/bt PoE power supply

Консумирана енергия17.3W (PoE Out Off)

Тегло452g (excluding mounting base)

Размери (Ш x Д x В)6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)

АнтенаInternal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 3× 4.7 dBi

Обхват140㎡(1500 ft²)*

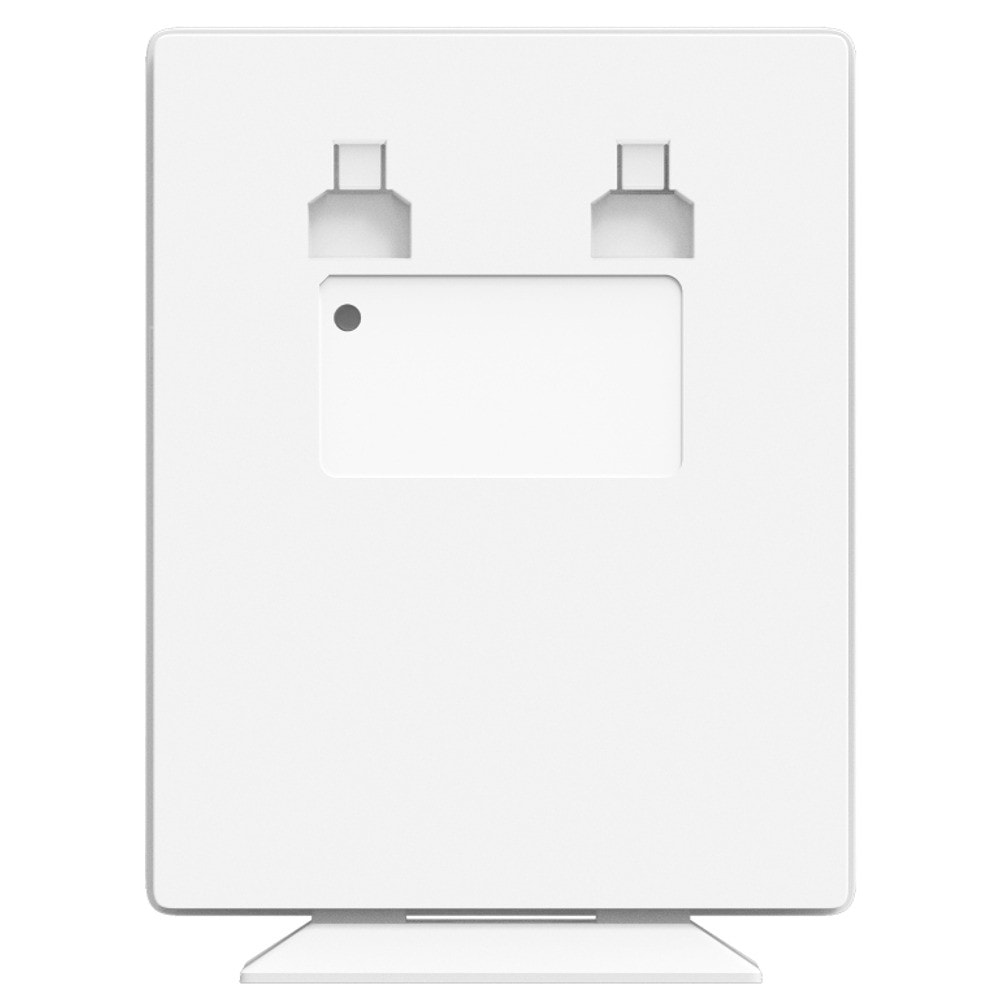

МонтажDesktop / Wall mounting (Kits included)

БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ

Concurrent Clients250+*

Безжични стандартиIEEE 802.11 a/b/g/n/ac/ax

Честота2.4 GHz and 5 GHz

Скорост на сигнала• 5 GHz: 2402 Mbps† • 2.4 GHz: 574 Mbps

Безжични функции• 2×2 (2.4G & 5G) MU-MIMO‡ • HE160 (160 MHz Bandwidth)‡ • OFDMA‡ • Omada Mesh • Seamless Roaming § • Multiple SSIDs (16 SSIDs, 8 on each band)

• Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • Guest Network • Automatic Channel Assignment • Beamforming

• Rate Limit (Based on SSID/Client) • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control • QoS (WMM)

• RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule and Statistics • Static IP/Dynamic IP

Безжична сигурност• Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN

• Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Предавателна мощност• CE:
