TP-Link
Точка за достъп TP-Link Omada EAP613
Артикул №: 1000024740
Категория:
Аксеспойнт/Репитер Безжични
101,99 €
✓ Налично във външен склад
EAP613
AX1800 Ceiling Mount WiFi 6 Access Point
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
- PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations.
- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
(28).png "Точка за достъп TP-Link Omada EAP613, 1800 Mbps, 2.4 GHz (574 Mbps)/ 5GHz (1201 Mbps), 1x RJ-45, 2x външни антени - характеристика 1 | Аксеспойнт/Репитер Безжични")
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
(15).png "Точка за достъп TP-Link Omada EAP613, 1800 Mbps, 2.4 GHz (574 Mbps)/ 5GHz (1201 Mbps), 1x RJ-45, 2x външни антени - характеристика 2 | Аксеспойнт/Репитер Безжични")
Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
(14).png "Точка за достъп TP-Link Omada EAP613, 1800 Mbps, 2.4 GHz (574 Mbps)/ 5GHz (1201 Mbps), 1x RJ-45, 2x външни антени - характеристика 3 | Аксеспойнт/Репитер Безжични")

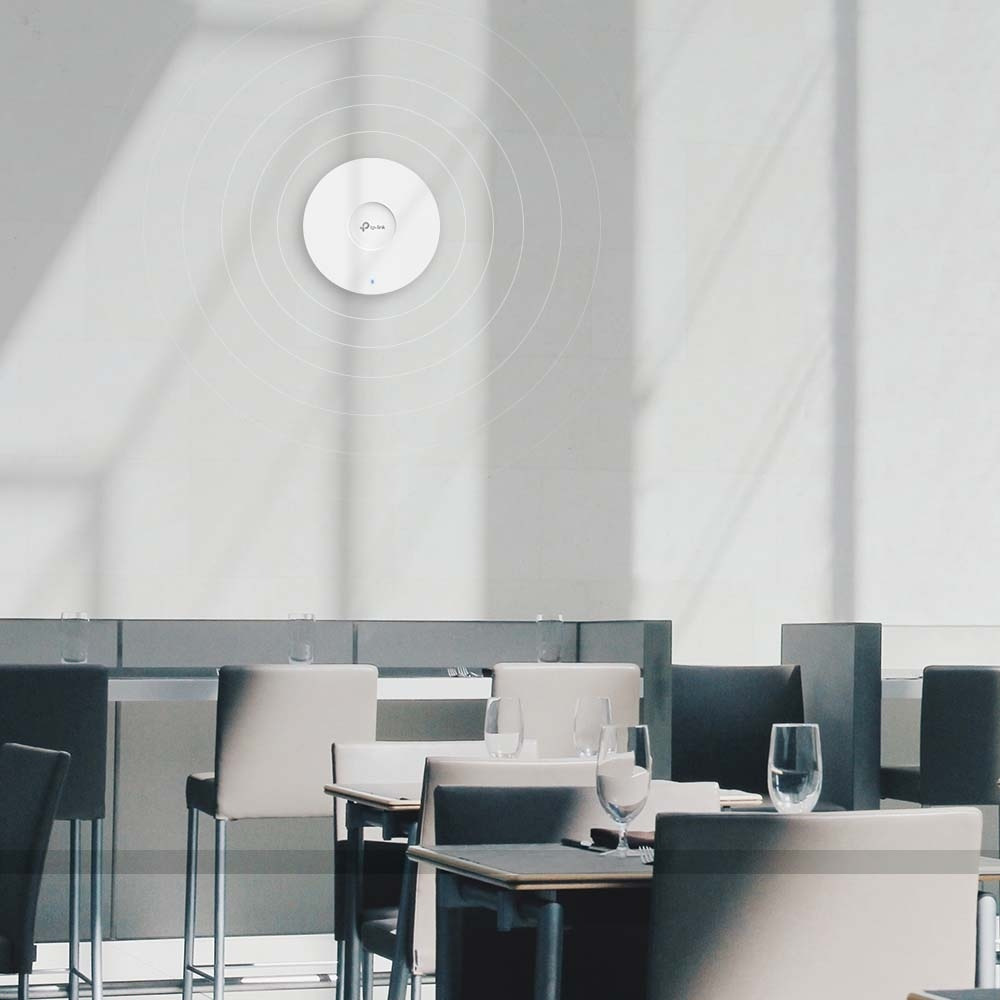

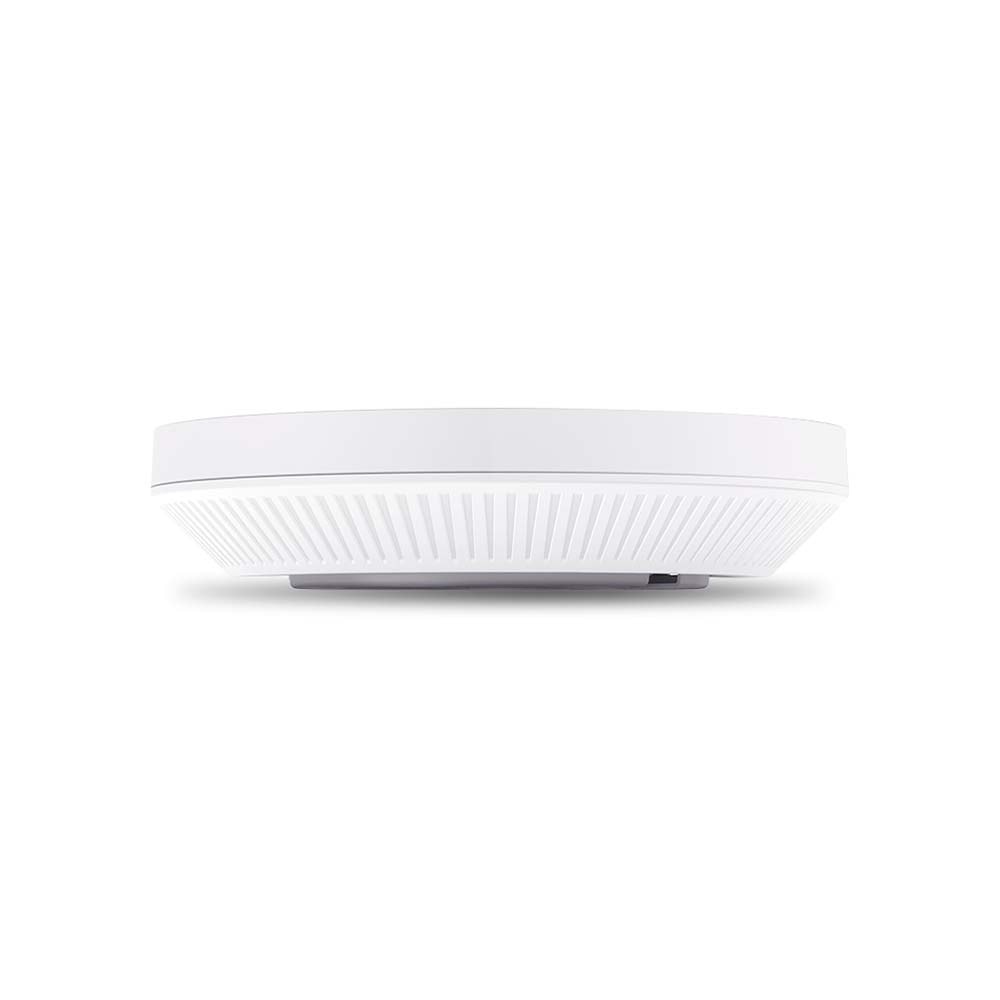

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP613 perfectly blend into any modern office, hotel, classroom, or café.
ХАРДУЕРНИ ХАРАКТЕРИСТИКИ

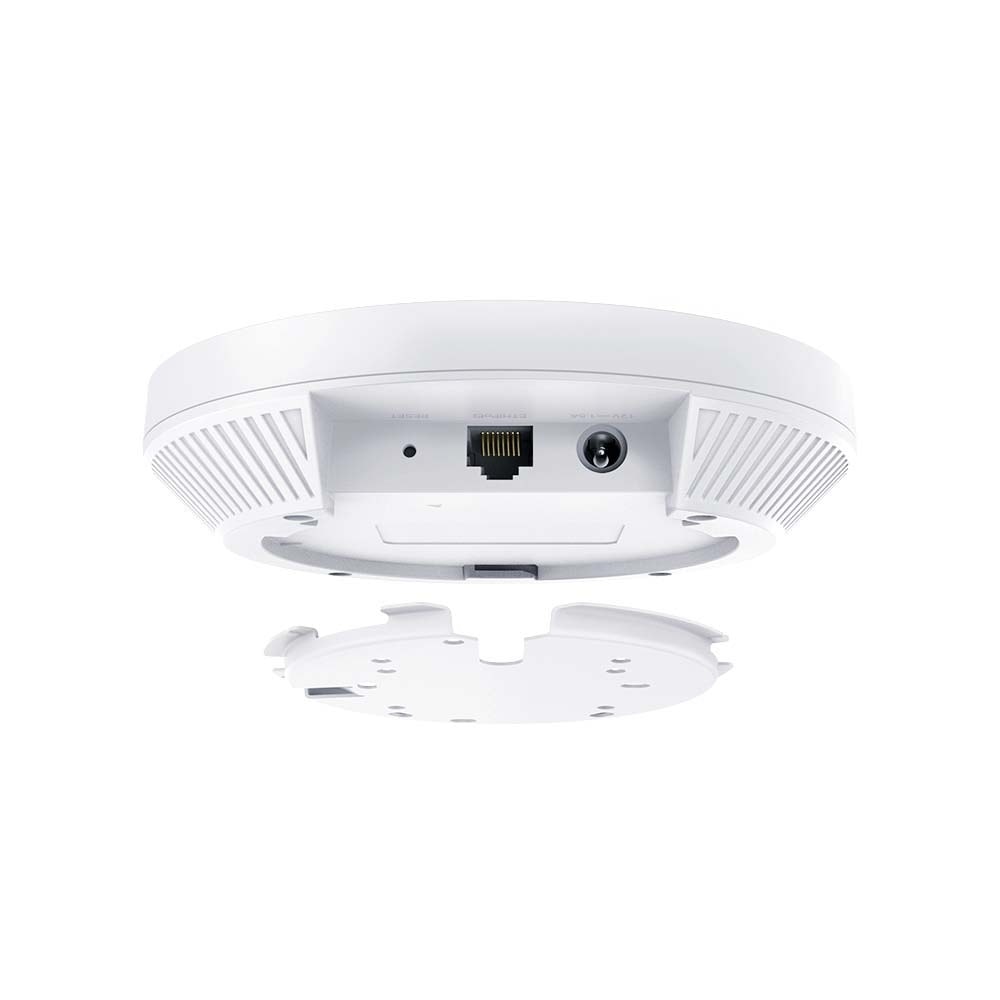

| Интерфейс | 1× Gigabit Ethernet (RJ-45) Port |
| Бутон | Reset |
| Захранване | • 802.3at PoE · • 48 V Passive PoE · • 12 V / 1 A DC (Power Adapter IS NOT included) |
| Консумирана енергия | 11.0W (For PoE); · 9.9W (For DC) |
| Размери (Ш x Д x В ) | V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Тип антена | Internal Omni Antenna · • 2.4 GHz: 2× 4 dBi · • 5 GHz: 2× 5 dBi |
| Монтаж | • Ceiling /Wall Mounting (Kits included) · • Junction Box Mounting |
БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ
| Безжични стандарти | IEEE 802.11ax/ac/n/g/b/a |
| Честотa | 2.4 GHz and 5 GHz |
| Скорост на сигнала | • 5 GHz: Up to 1201 Mbps · • 2.4 GHz: Up to 574 Mbps |
| Безжични функции | • 1024-QAM · • 4× Longer OFDM Symbol · • OFDMA · • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) · • Enable/Disable Wireless Radio · • Automatic Channel Assignment · • Transmit Power Control (Adjust Transmit Power on dBm) · • QoS(WMM) · • MU-MIMO · • Seamless Roaming § · • Omada Mesh§ · • Band Steering · • Load Balance · • Airtime Fairness · • Beamforming · • Rate Limit · • Reboot Schedule · • Wireless Schedule · • Wireless Statistics based on SSID/AP/Client |
| Безжична сигурност | • Captive Portal Authentication§ · • Access Control · • Wireless Mac Address Filtering · • Wireless Isolation Between Clients · • SSID to VLAN Mapping · • Rogue AP Detection · • 802.1X Support · • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Предавателна мощност | • CE: · <20 dBm(2.4 GHz, EIRP) · <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3) · · • FCC: · <25 dBm (2.4 GHz) · <25 dBm (5 GHz) |
MANAGEMENT
| Omada App | Да |
| Centralized Management | • Omada Cloud-Based Controller · • Omada Hardware Controller OC300 · • Omada Hardware Controller OC200 · • Omada Software Controller |
| Cloud Access | Yes, through · • OC300 · • OC200 · • Omada Software Controller · • Omada Cloud-Based Controller |
| Сигнали по електронна поща | Да |
| Управление Вкл/Изкл на LED | Да |
| Управление на контрола на достъпа по МАС адрес | Да |
| SNMP | v1, v2c, v3 |
| Влизане в системата Локално/Отдалечение | Local/Remote Syslog |
| SSH | Да |
| Уеб-базирано управление | HTTP/HTTPS |
| L3 управление | Да |
| Управление на множество сайтове | Да |
| Управление на VLAN | Да |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
ДРУГИ
| Сертификати | CE, FCC, RoHS |
| Съдържание на пакета | • EAP613 · • Ceiling/ Wall Mounting Kits · • Installation Guide |
| Системни изисквания | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Околна среда | • Operating Temperature: 0–40 ℃ (32–104 ℉) · • Storage Temperature: -40–70 ℃ (-40–158 ℉) · • Operating Humidity: 10–90% RH non-condensing · • Storage Humidity: 5–90% RH non-condensing |
