TP-Link
Точка за достъп TP-Link Omada EAP225-Wall
Артикул №: 1000000362
Категория:
Аксеспойнт/Репитер Безжични
88,99 €
✓ Налично в централен склад
Omada Wireless Wall-Plate Access Point EAP225-Wall
- AC1200 wireless with 100Mbps Ethernet backhaul
- Designed for office cubical and hotel room wired and wireless connections
- Easy-mount construction allows installation into 1-gang electric wall-box
- Compact, low-profile design fits discreetly with any existing interior style
- Free cloud management and Omada App supported for ultra convenience and easy management
- Power over Ethernet (802.3af/802.3at) support makes deployment effortless and flexible
- Enterprise-class Wi-Fi security helps to decrease network security threats
- Supports management VLAN for an enhanced network management
HARDWARE FEATURES

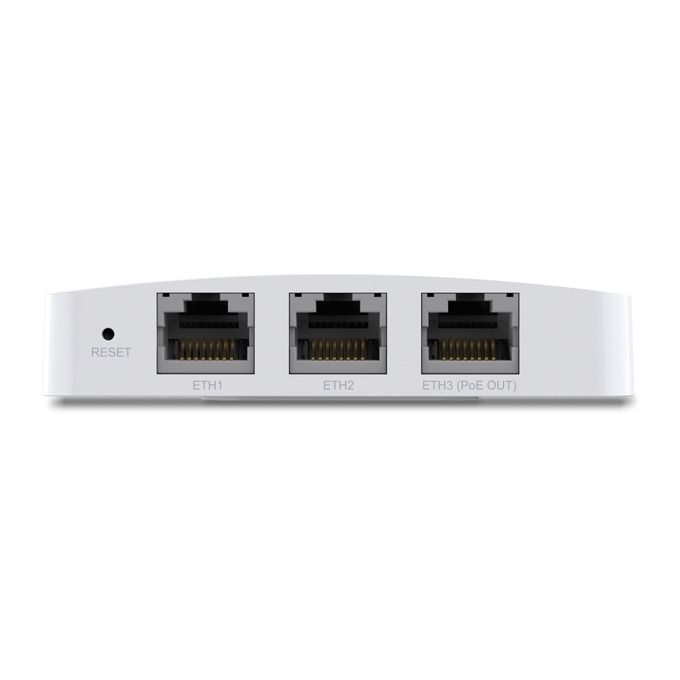

| Интерфейс | 1 × 10/100Mbps Ethernet uplink port accepts 802.3af/at power supply as PoE power device (PD) · 2 × 10/100Mbps Ethernet Port · 1 × 10/100Mbps with PoE pass-thru (requires 802.3at PoE+ power supply on PD port.) |
| Physical Security Lock | Да |
| Button | Reset |
| Захранване | 802.3af or 802.3at PoE |
| Консумация на енергия | 9 watts or · 25.5 watts including PoE Out |
| Размери | 5.6 × 3.4 × 0.8 in. · (143 × 86 × 19.7mm) |
| Antenna | 2 Dual-Band Antennas · 2.4GHz: 2 × 3dBi · 5GHz: 2 × 4dBi |

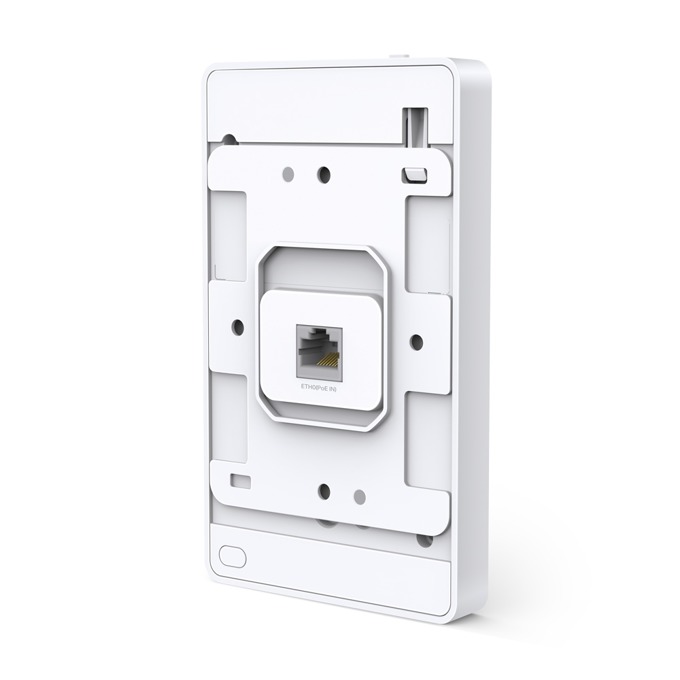

| Монтаж | Wall Plate Mounting |
| Hardware Watch Dog | Да |
WIRELESS FEATURES
| Wireless Standards | IEEE 802.11n/g/b/ac |
| Честота | 2.4GHz and 5GHz |
| Signal Rate | 5GHz: Up to 867Mbps · 2.4GHz: Up to 300Mbps |
| Wireless Functions | 16 SSIDs（Up to 8 SSIDs on each band） · Enable/Disable Wireless Radio · Automatic Channel Assignment · Transmit Power Control (Adjust Transmit Power on dBm) · QoS(WMM) · Load Balance · Rate Limit · Reboot Schedule · Wireless Schedule · Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication · Access Control · Wireless Mac Address Filtering · Wireless Isolation Between Clients · SSID to VLAN Mapping · Local LAN port based VLAN · Rogue AP Detection · 802.1X Support · 64/128/152-bit WEP / WPA / WPA2-Enterprise, · WPA-PSK / WPA2-PSK |
| Transmission Power | CE: · ≤20 dBm (2.4 GHz, EIRP) · ≤23 dBm (5 GHz, EIRP) · FCC: · ≤21 dBm (2.4 GHz) · ≤21 dBm (5 GHz) |
MANAGEMENT
| Omada Cloud Access | Да |
| Omada App | Да |
| Omada Cloud Controller | Да |
| Omada Controller Software | Да |
| Email Alerts | Да |
| LED ON/OFF Control | Да |
| Management MAC Access Control | Да |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Да |
| SSH | Да |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Да |
| Multi-site Management | Да |
| Management VLAN | Да |
OTHERS
| Сертификация | FCC, RoHS |
| Съдържание на пакета | AC1200 MU-MIMO Wall-Plate Access Point · EAP225-Wall · Installation Guide · Mounting Screw |
| System Requirements | EAP discover utility: Microsoft Windows or MAC OS · EAP software controller: Microsoft Windows (64-bit and 32-bit or Linux (64bit) |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) · Storage Temperature: -40℃~70℃ (-40℉~158℉) · Operating Humidity: 10%~90% non-condensing · Storage Humidity: 5%~90% non-condensing |
