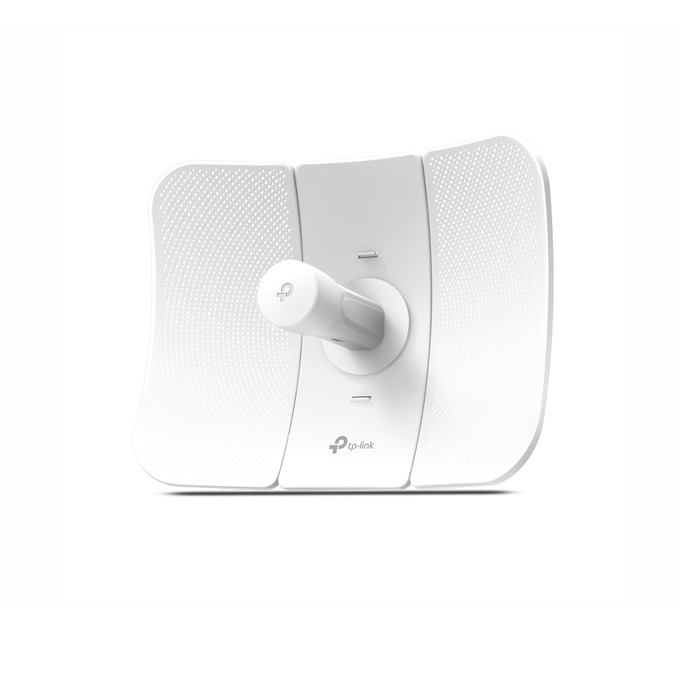

Точка за достъп TP-Link CPE610

HARDWARE FEATURES
Processor: Qualcomm 560MHz CPU, MIPS 74Kc
Memory: 64MB DDR2 RAM,8MB Flash
Interface: 1x 10/100Mbps Shielded Ethernet Port (LAN/POE), 1x Reset Button
Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins), Voltage range: 16-27VDC
Dimensions: 360 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) (No mount)
Antenna Gain: 23dBi
Antenna Beamwidth: 9°(Azimuth), 7°(Elevation)
Protection: 15KV ESD Protection, 6KV Lightning Protection
Enclosure: Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES
Wireless Standards: IEEE 802.11a/n
Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds:
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency: 5.15~5.85GHz
Transmit Power: Max. 27dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES
Network Configuration:
WAN: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/DHCP
Forwarding: ALG/UPnP/Virtual Server/Port Trigger
Security: SPI Firewall/ Ping Forbidden/DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding

Wireless Configurations:
Pharos MAXtream TDMA Technology
Selectable Channel Width: 5/10/20/40MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Management:
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server

System Tools:
Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute

System-level Optimizations:
Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog

OTHERS
Certification:
CE, FCC, RoHS, IP65
Package Contents: Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide

System Requirements:
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Environment:
Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
CPE610 предлага възможност да бъде управлявано от Pharos централизирано управления, което позволява на потребителите лесно да управляват всички устройства от едно единствено място.
