Точка за достъп Ruijie RG-RAP1260

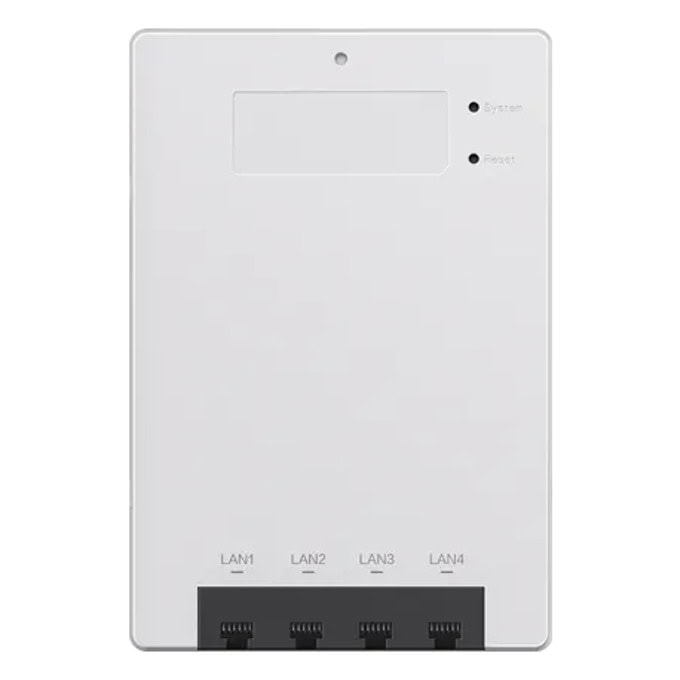

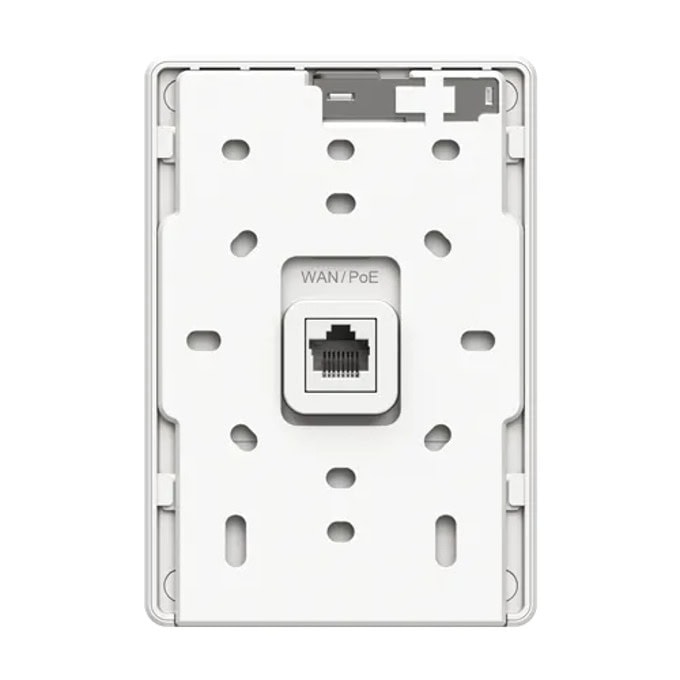

Ruijie RG-RAP1260

Highlight Features

• Dual-radio performance, gigabit wireless wall-mounted AP
• Better experience with MU-MIMO under 802.11ax
• Easy installation, worldwide compatible
• Capable of Reyee Mesh and 802.11K/V/R
• Powerful Standalone Portal via Ruijie Cloud

Smart AI Roaming Enhances Wireless Experience Anywhere You Go

Hardware Specifications

Wi-Fi Radio

Radio design

• Dual-radio
  4 spatial streams
  ● 2.4 GHz: 2 x 2, MU-MIMO
  ● 5 GHz: 2 x 2, MU-MIMO

Maximum wireless data rate

• 2974 Mbps

6 GHz wireless data rate

• No

5 GHz wireless data rate

• 2401 Mbps

2.4 GHz wireless data rate

• 573 Mbps

Antenna

Antenna

• 5 GHz: 1 built-in omnidirectional antenna
  Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas

Dimensions and Weight

Product dimensions (W x D x H)

• 86 mm x 24 mm x
  124 mm (3.39 in. x 0.94 in. x 4.88 in.) (excluding the mounting bracket)

Color

• White

Weight

• ≤ 0.26 kg (0.57 lbs.) (without packaging materials)

Port Specifications

Number of 10/100/1000BASE-T ports

• 5

Power Supply and Consumption

Power supply

• PoE/PoE+

Local power supply

• No

Dimensions of the DC connector

• No

PoE budget

• No

Maximum power consumption

• 12 W

Environment and Reliability

Operating temperature

• 0°C to 40°C (32°F to 104°F)

Mounting options

• Junction box

IP rating

• IP41

Software Specifications

WLAN

Maximum number of associated wireless clients

• 64 (2.4 GHz)
  256 (5 GHz)
  256 (2.4 GHz and 5 GHz enabled)

Maximum number of devices that can be managed

• 300

IP Service

IPv6

• Yes
