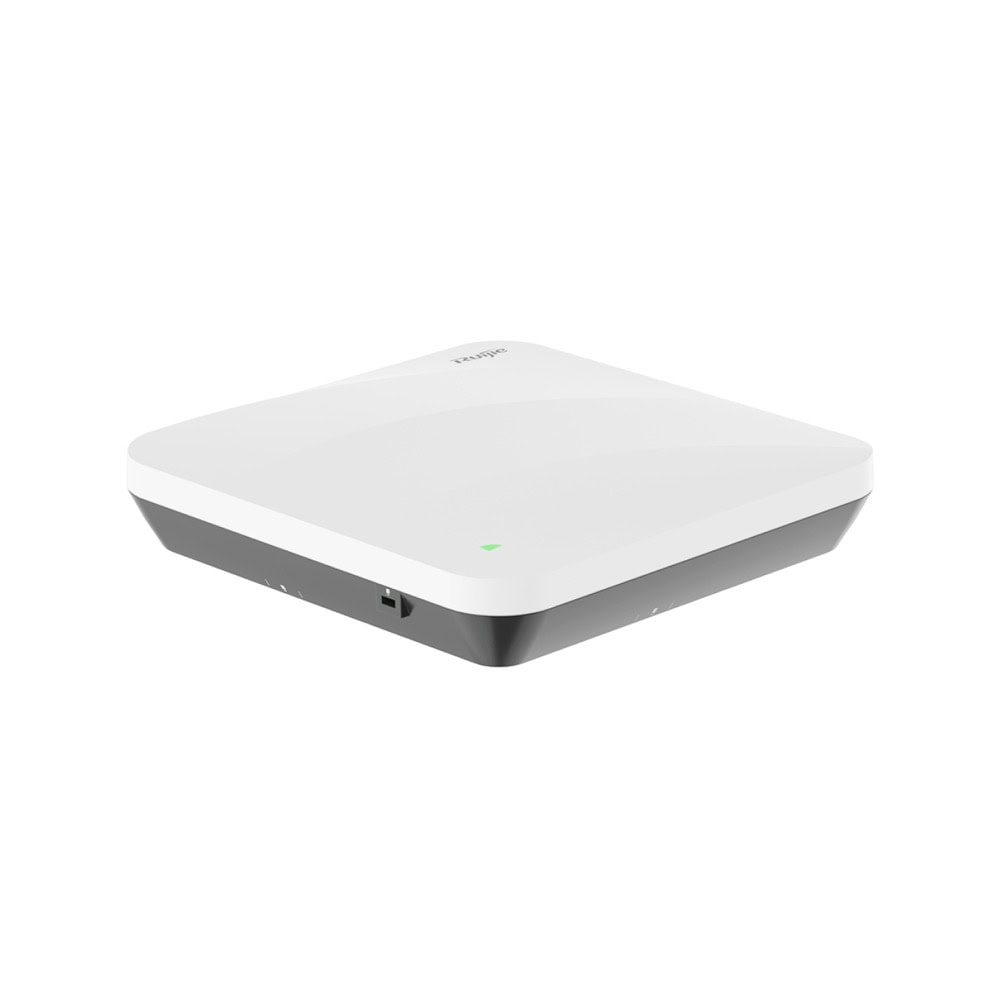

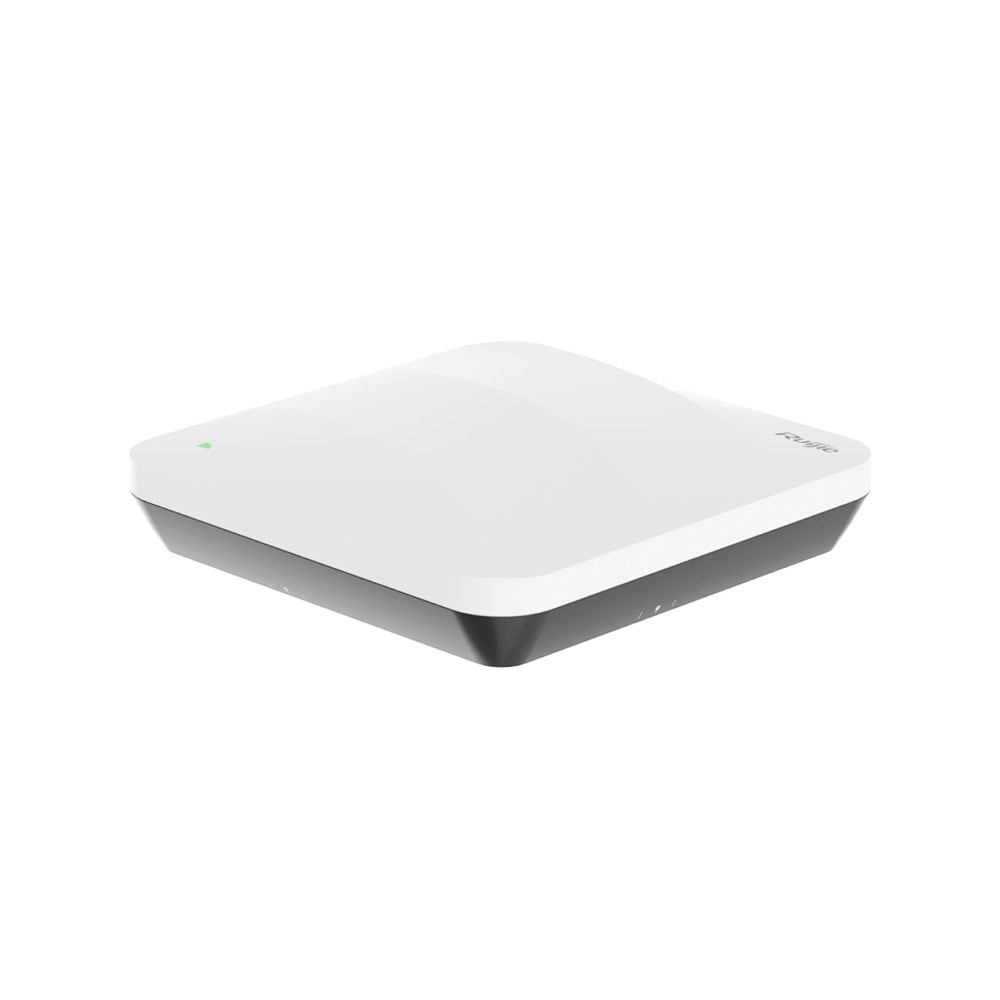

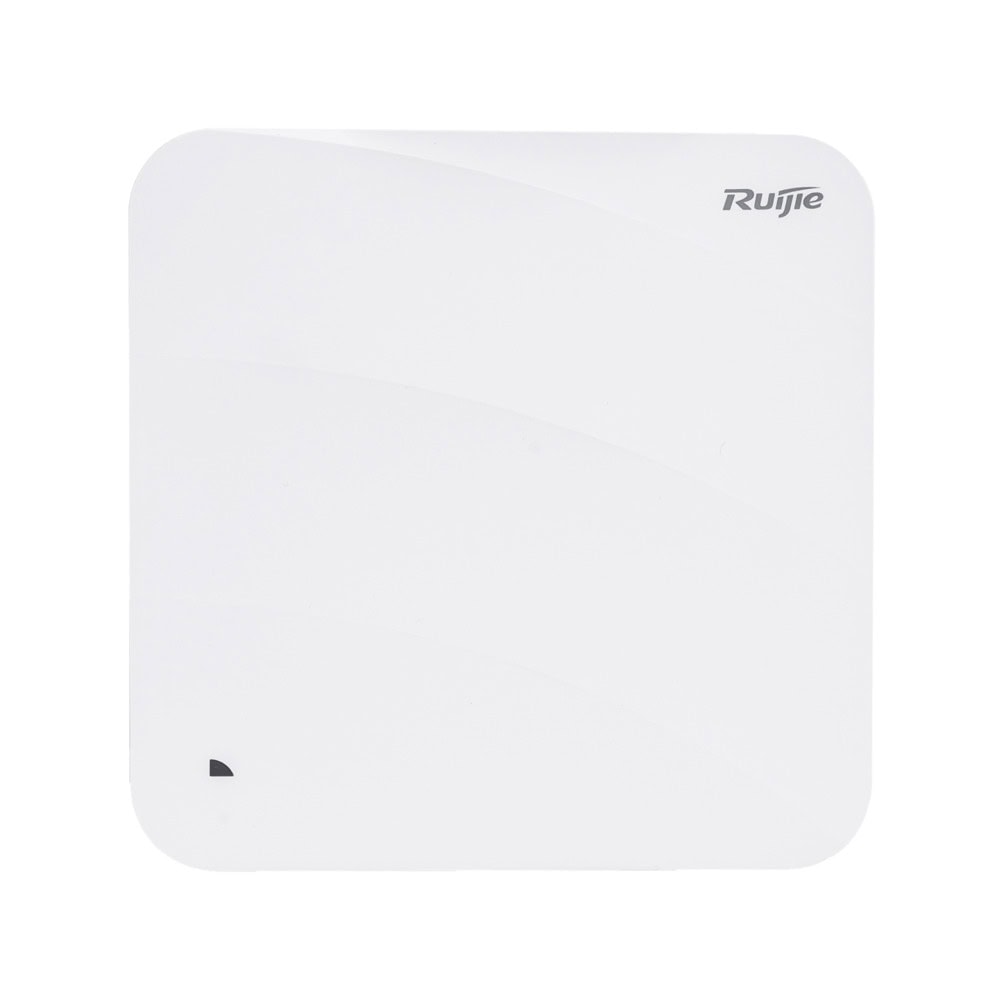

Точка за достъп Ruijie RG-AP820-L(V3)

RG-AP820-L(V3), Wi-Fi 6 AX3000 Indoor AP

Indoor scenarios for higher education, government, general education, finance, and business sectors.

Highlight Features

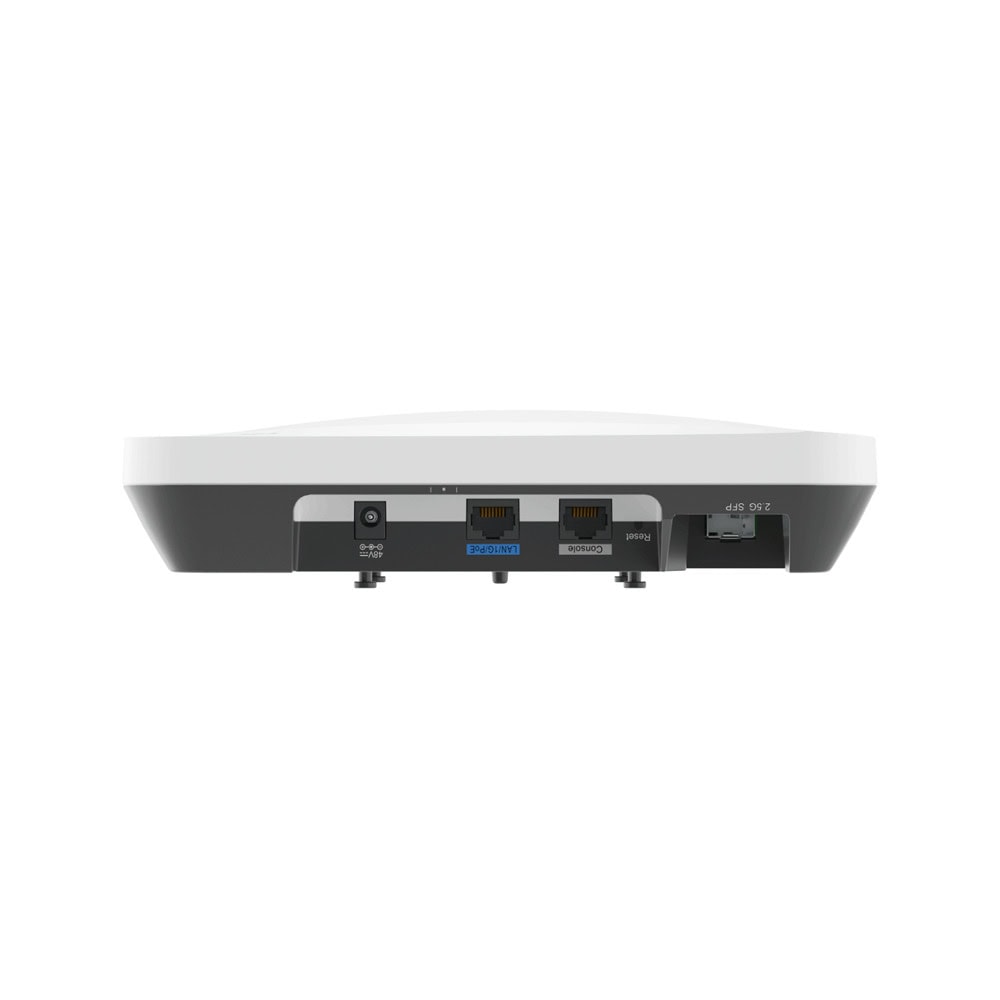

• 2.5 Gbps SFP Port, Multi-Gigabit Networking
• Next-generation AX3000 chip, supporting 160 MHz 2.976 Gbps
• Next-generation Wi-Fi 6 technology, higher concurrency, lower latency
• Unified cloud management, intelligent tuning, easy O&M

Ultimate Speed and Capacity with Wi-Fi 6, Up To 2.976 Gbpss

Hardware Specifications

Dimensions and WeightRG-AP820-L(V3)

Unit dimensions(W x D x H)220 mm x 220 mm x 49 mm (8.66 in. x 8.66 in. x 1.93 in.)

Shipping dimensions(W x D x H)514 mm x 326 mm x 292 mm (20.24 in. x 12.83 in. x 11.50 in.)

Unit weightMain unit: 0.6 kg (1.32 lbs)Mounting bracket: 0.2 kg (0.44 lbs)

Shipping weight8.46 kg (18.65 lbs)

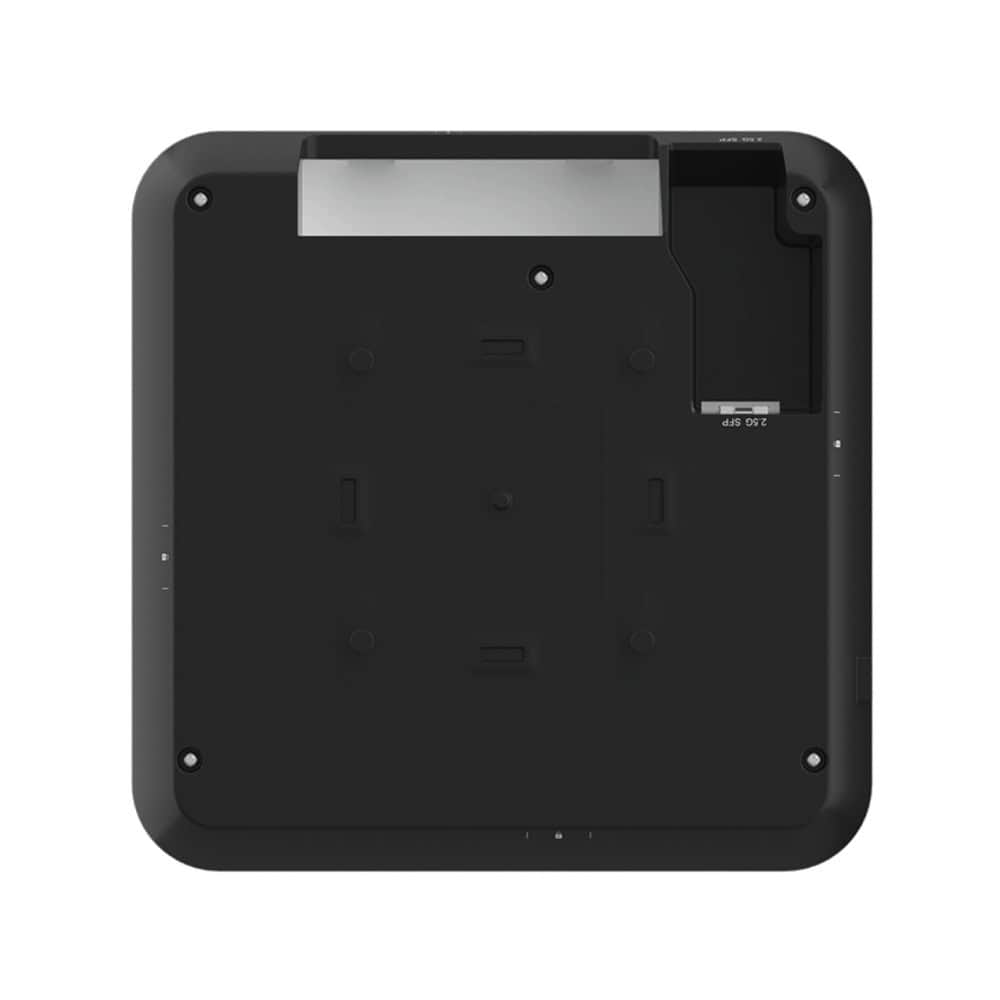

MountingWall/Ceiling-mount (a mounting bracket is delivered with the main unit)

Lock optionKensington lock and securing latch

Wi-Fi RadioRG-AP820-L(V3)

Radio designDual-radio and up to four spatial streams:● Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO● Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO

Operating frequenciesRadio 1, 802.11b/g/n/ax:● 2.400 GHz to 2.4835 GHz, ISMRadio 2, 802.11a/n/ac/ax: ● 5.150 GHz to 5.250 GHz, U-NII-1● 5.250 GHz to 5.350 GHz, U-NII-2A● 5.470 GHz to 5.725 GHz, U-NII-2C● 5.725 GHz to 5.850 GHz, U-NII-3/ISM Country-specific restrictions apply:EgyptRadio 1: 802.11b/g/n: 2.400 GHz to 2.4835 GHzRadio 2: 802.11a/n/ac: 5.150 GHz to 5.350 GHz

Data ratesCombined peak data rate: 2.976 Gbps2.4 GHz radio● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum)● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical)5 GHz radio● Two spatial stream Single User (SU) MIMO for up to 2.402 Gbps wireless data rate to individual 2SS HE160 802.11ax client devices (maximum)● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical)

Data rate setThe following 802.11-compliant data rates in Mbps are supported:2.4 GHz radio● 802.11b: 1, 2, 5.5, 11● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)5 GHz radio● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)● 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160)● 802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)

Packet aggregation802.11n/ac/ax: A-MPDU and A-MSDU

Antenna typeBuilt-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas)

Antenna gain2.4 GHz: 5 dBi5 GHz: 5 dBi

Maximum transmit power2.4 GHz radio: 26 dBm (23 dBm per chain)5 GHz radio: 26 dBm (23 dBm per chain) Thailand2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm5.470 GHz to 5.725 GHz, EIRP ≤ 30 dBm5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm Egypt2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm

Power incrementConfigurable in increments of 1 dBm

Radio technologies802.11b: Direct-Sequence Spread-Spectrum (DSSS)802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)

Modulation types802.11b: BPSK, QPSK, CCK802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation.

Wi-Fi Radio Frequency PerformanceRG-AP820-L(V3)

Frequency Band and ProtocolData RateMaximum Transmit Power per Transmit ChainMaximum Receive Sensitivity per Receive Chain

2.4 GHz 802.11b1 Mbps23 dBm-91 dBm
