MikroTik

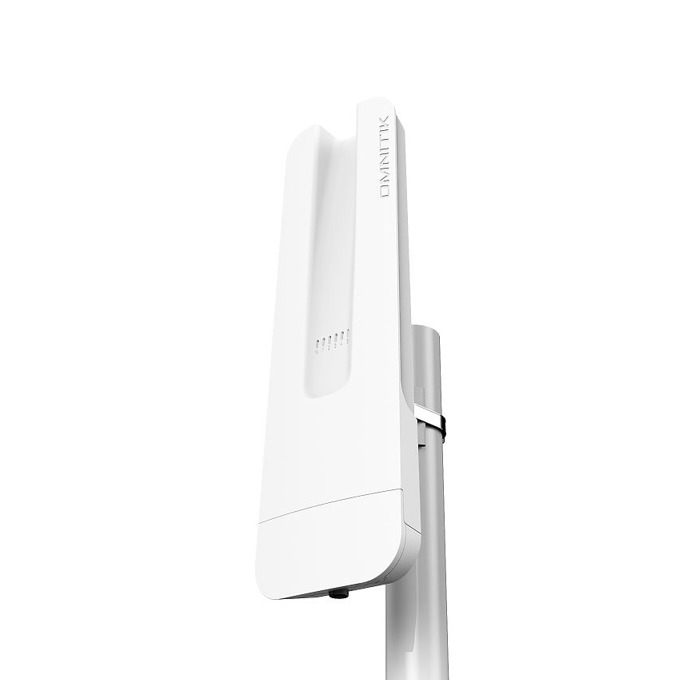

Точка за достъп MikroTik OmniTIK 5
Артикул №: 1000009330
Категория:
Аксеспойнт/Репитер Безжични
131,99 €
✓ Налично във външен склад
Specifications
Architecture: MIPSBE
CPU: QCA9557
CPU core count: 1
CPU nominal frequency: 720 MHz
Dimensions: 416 x 129 x 58 mm
License level: 4
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -40°C to 70°C
Powering
PoE in: Passive PoE
PoE out: 802.3af/at
PoE in input Voltage: 12-57 V
Number of DC inputs: 1 (PoE-IN)
Max out per port output (input > 30 V): 450 mA
Max out per port output (input < 30 V): 1 A
Max total out (A): 2 A
Max power consumption: 66 W
Max power consumption without attachments: 18 W
Wireless
Wireless 5 GHz number of chains: 2
Wireless 5 GHz Max data rate: 867 Mbit/s
Wireless 5 GHz standards: 802.11a/n/ac
Antenna gain dBi for 5 GHz: 7.5
Wireless 5 GHz chip model: QCA9892
Ethernet

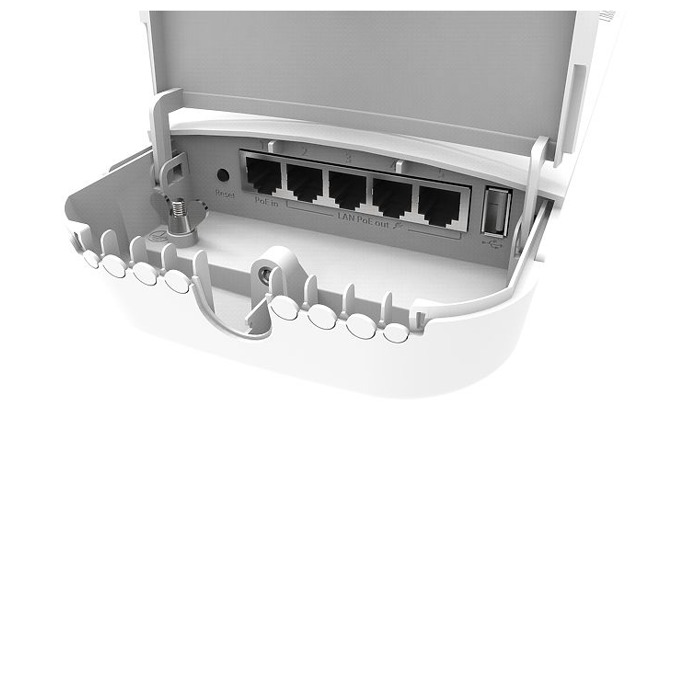

10/100/1000 Ethernet ports: 5
Peripherals
Number of USB ports: 1
USB Power Reset: Yes
USB slot type USB type: A
Max USB current (A): 1
Other
PCB temperature monitor: Yes
Voltage Monitor: Yes
Architecture: MIPSBE
CPU: QCA9557
CPU core count: 1
CPU nominal frequency: 720 MHz
Dimensions: 416 x 129 x 58 mm
License level: 4
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -40°C to 70°C
Powering
PoE in: Passive PoE
PoE out: 802.3af/at
PoE in input Voltage: 12-57 V
Number of DC inputs: 1 (PoE-IN)
Max out per port output (input > 30 V): 450 mA
Max out per port output (input < 30 V): 1 A
Max total out (A): 2 A
Max power consumption: 66 W
Max power consumption without attachments: 18 W
Wireless
Wireless 5 GHz number of chains: 2
Wireless 5 GHz Max data rate: 867 Mbit/s
Wireless 5 GHz standards: 802.11a/n/ac
Antenna gain dBi for 5 GHz: 7.5
Wireless 5 GHz chip model: QCA9892
Ethernet
10/100/1000 Ethernet ports: 5
Peripherals
Number of USB ports: 1
USB Power Reset: Yes
USB slot type USB type: A
Max USB current (A): 1
Other
PCB temperature monitor: Yes
Voltage Monitor: Yes
Технически характеристики
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Размери | 416 x 129 x 58 mm |
| License level | 4 |
| Операционна система | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| PoE in | Passive PoE |
| PoE out | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max total out (A) | 2 A |
| Max power consumption | 66 W |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Wireless 5 GHz chip model | QCA9892 |
| 10/100/1000 Ethernet ports | 5 |
| Number of USB ports | 1 |
| USB Power Reset | Да |
| Max USB current (A) | 1 |
| PCB temperature monitor | Да |
| Voltage Monitor | Да |
