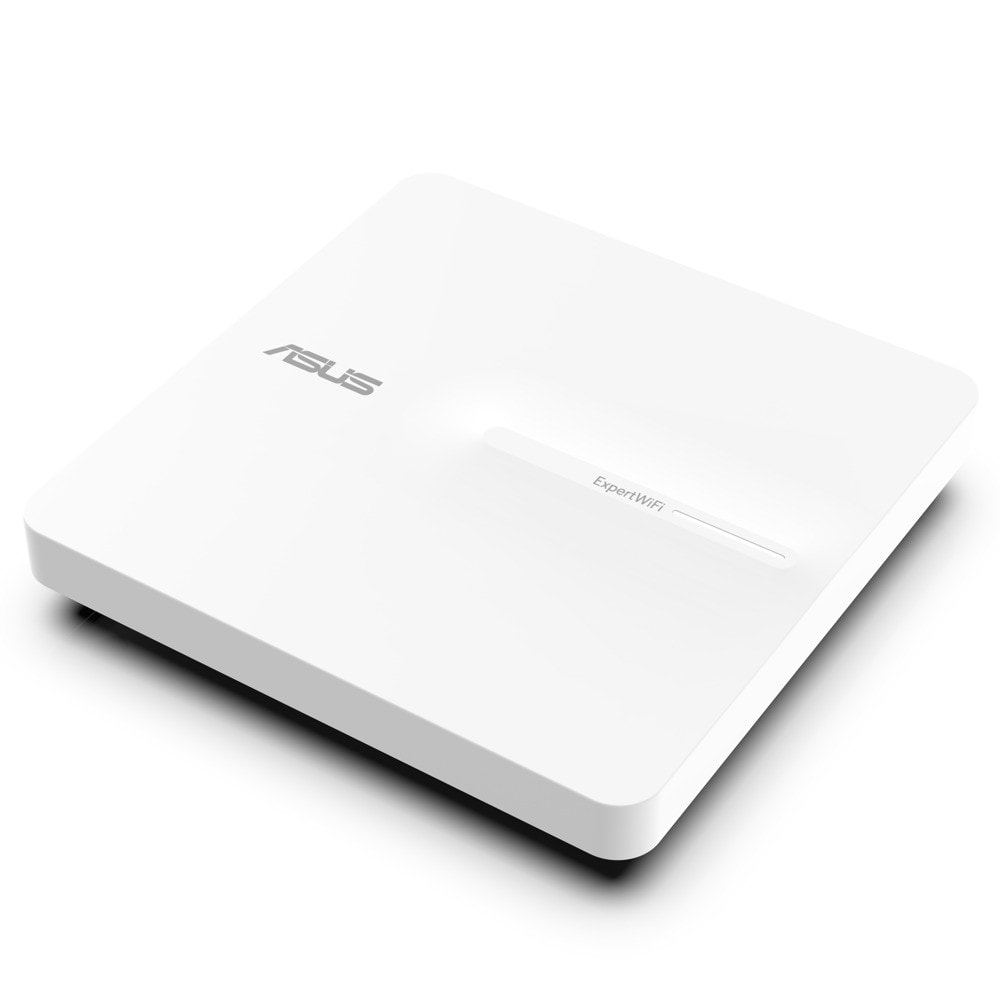

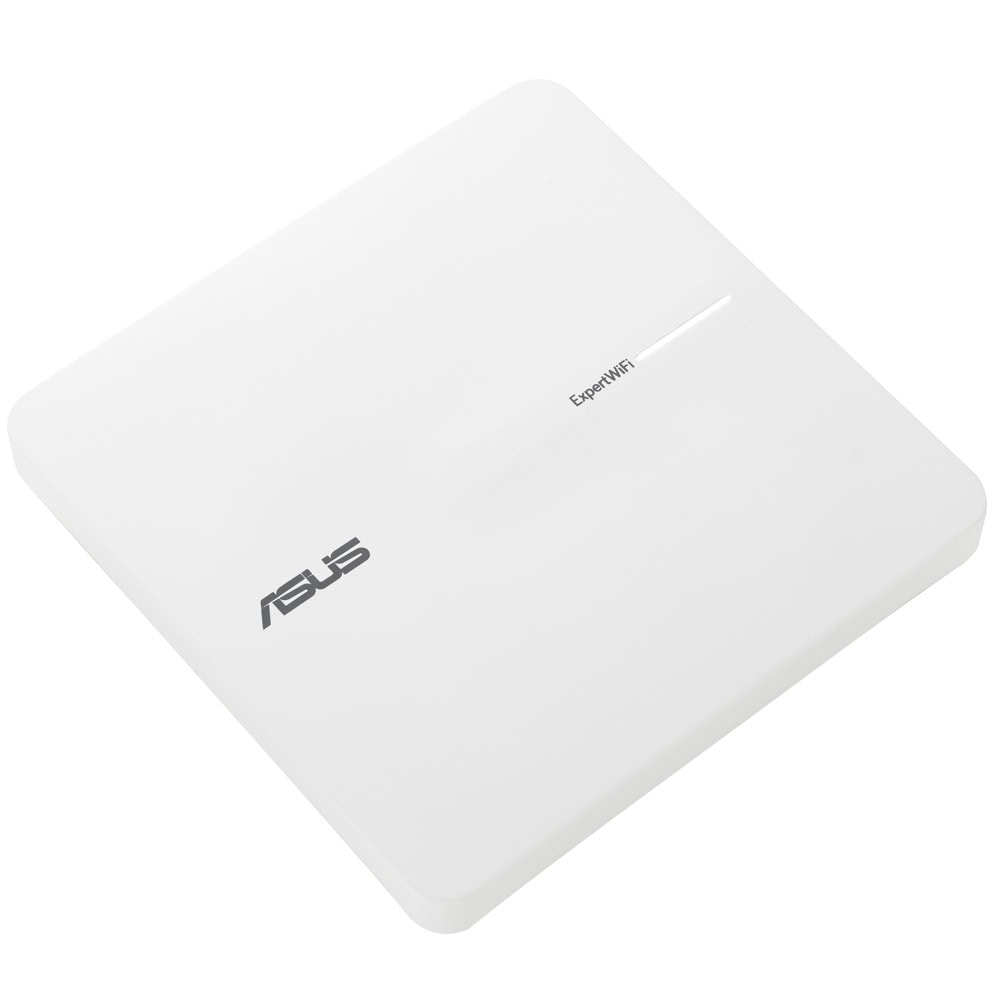

Точка за достъп Asus ExpertWiFi EBA63

Asus ExpertWiFi EBA63
90IG0880-MO3C00

Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Product Segment
AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps

Data Rate
802.11a: up to 54 Mbps
802.11b: up to 11 Mbps
802.11g: up to 54 Mbps
WiFi 4 (802.11n): up to 300 Mbps
WiFi 5 (802.11ac): up to 1734 Mbps
WiFi 6 (802.11ax) (2.4GHz): up to 574 Mbps
WiFi 6 (802.11ax) (5GHz): up to 2402 Mbps

Antenna
Internal antenna x4

Transmit / Receive
2.4GHz 2x2
5GHz 2x2

Processor
1.7 GHz quad-core processor

Memory
256 MB Flash
512 MB RAM

Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency
2.4 GHz
5 GHz

Operating Mode
AiMesh Node Mode
Access Point Mode

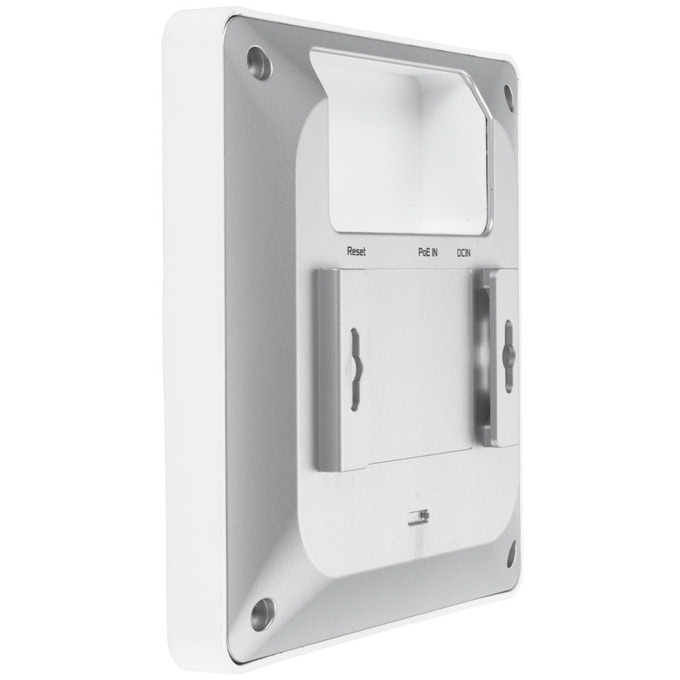

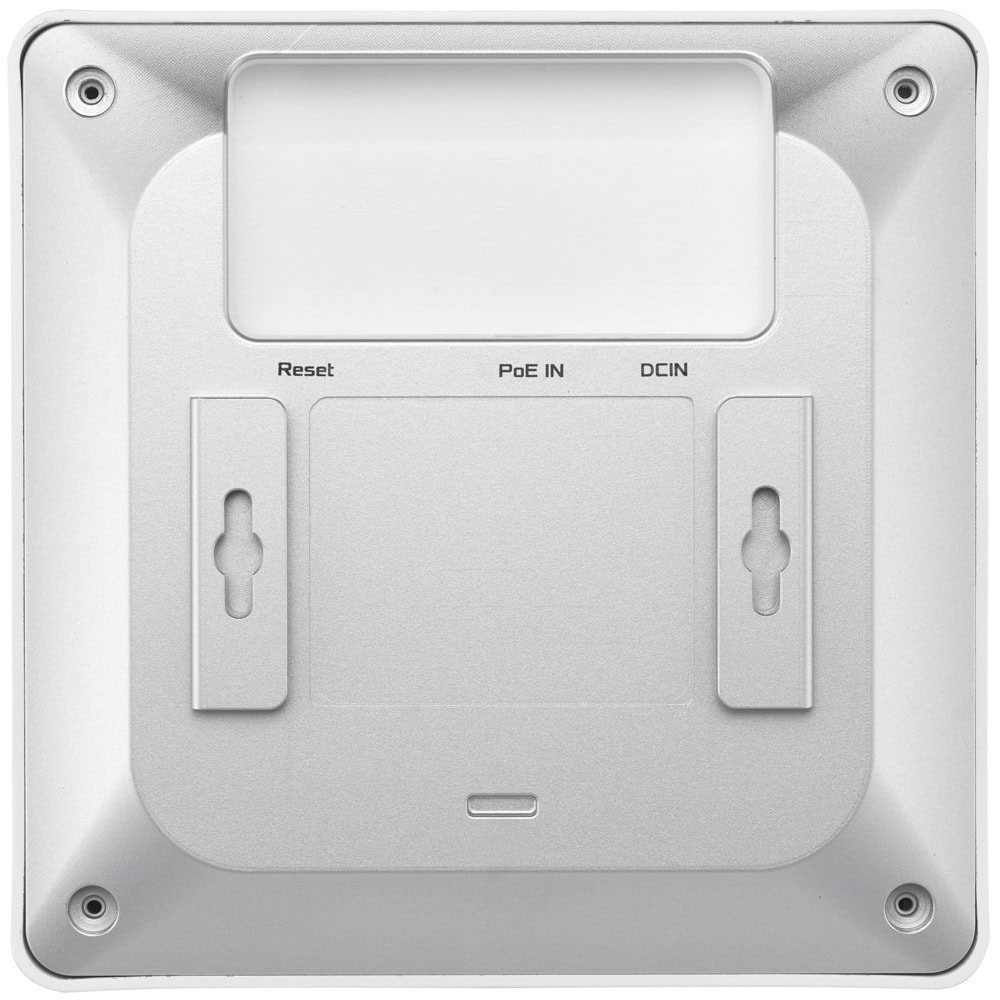

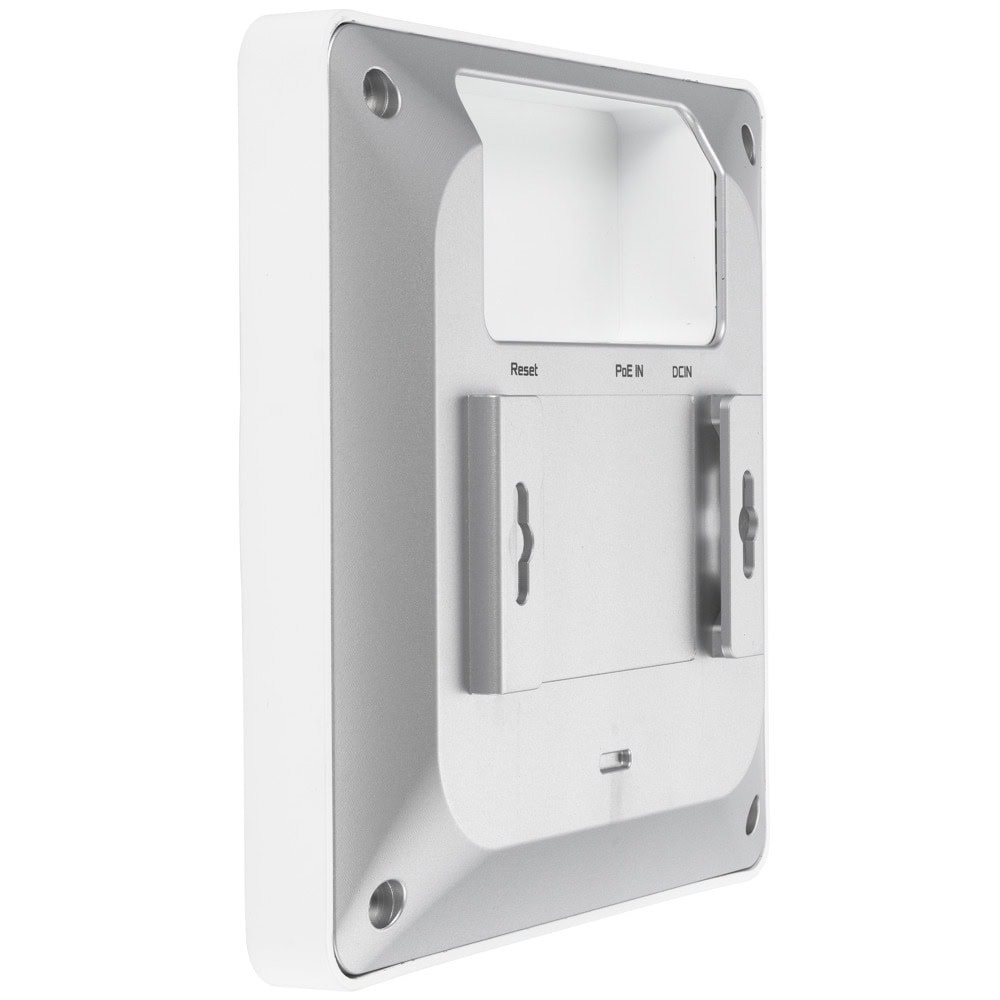

I/O Ports
10/100/1000 Gigabit Ethernet Port (support PoE) x1

Buttons
Reset Button

LED Indicator
Power x2

Power Supply
802.3af PoE
12 V with max. 1.5 A current DC (power adapter included)

Power Consumption
US: 10.0W
EU: 9.1W

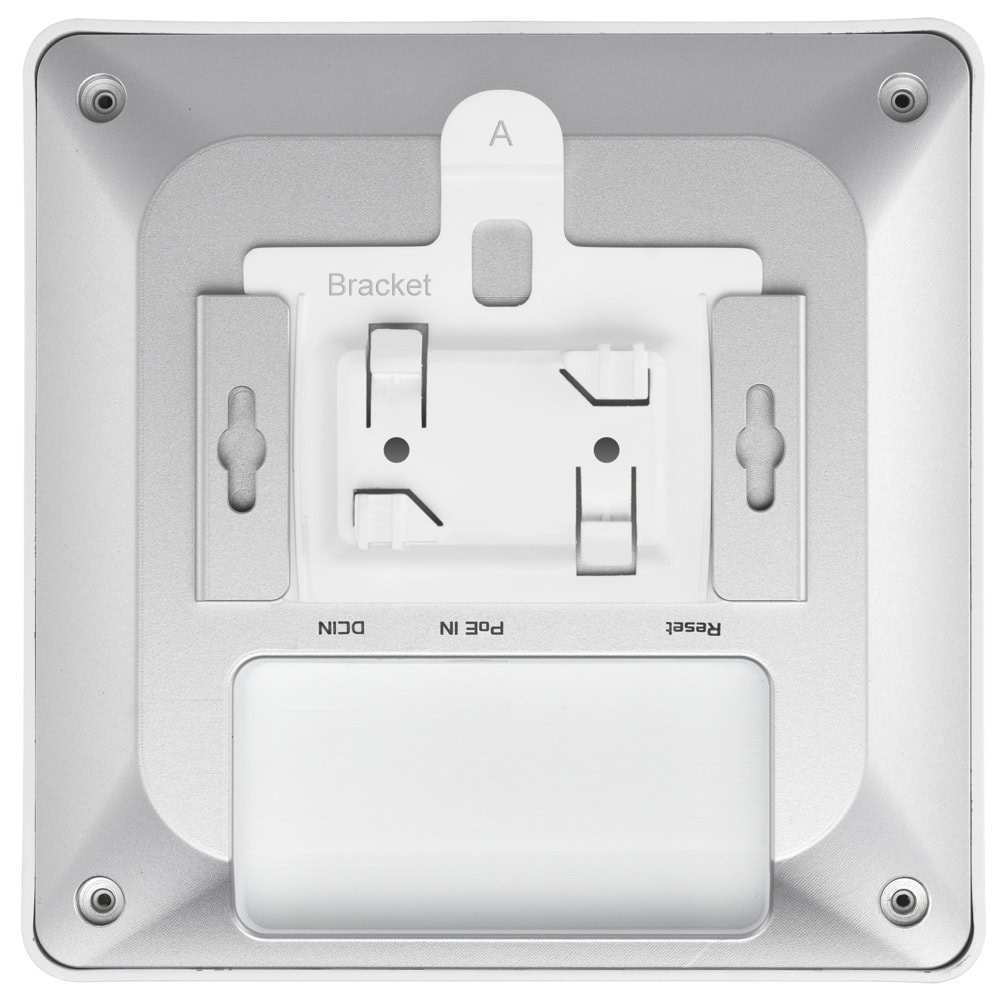

Mounting
Wall Mount
Ceiling Mount

Product Weight (g)
426g

Product Dimentions
160x160x42

AiMesh
• AiMesh Node

Device Access Control
Time Scheduling
Reward
Customized Internet Schedule
• Maximum Device Access Control Profile: 12
• Maximum Device Access Control Content Filter Rule: 12
Dashboard

Self-Defined Network Type
• Employee
• Guest Network
• Scheduled Network
• Maximum Self-Defined Network Rule :16
VLAN
WiFi Scheduling: One Time Access
WiFi Scheduling: Weekly Schedule
WiFi share: QR code, PDF file
AP isolate

Security
WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
SSH

Traffic Control
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor

Wireless
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
User Interface
WEB: ASUSWRT
APP: ASUS ExpertWiFi APP

Administration
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
