Суич TRENDnet TPE-224WS

TRENDnet
TPE-224WS

Reduces equipment cost by delivering data and power over existing network cables

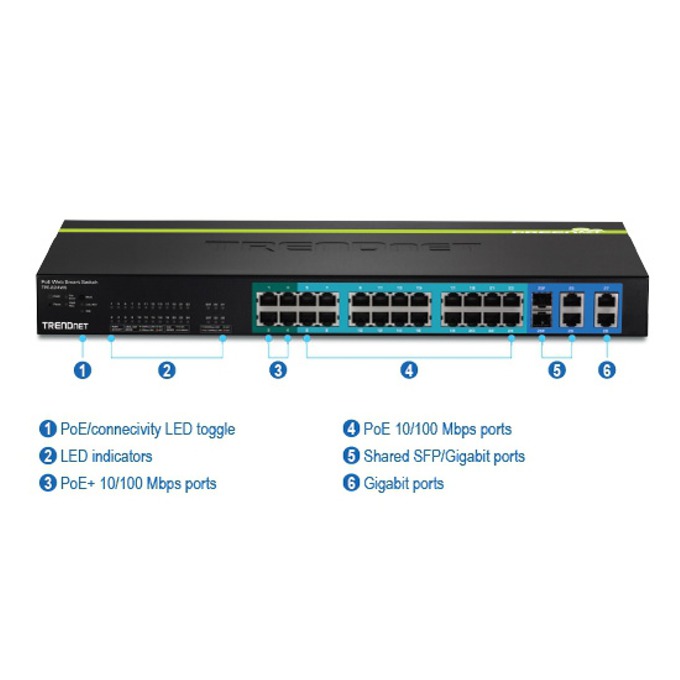

24 x PoE 10/100Mbps ports, 4 x Gigabit Auto-MDIX ports and 2 x shared Mini-GBIC slots
12.8Gbps switching capacity with SNMP v1, 802.1X and STP support
Features 802.1Q VLAN, Asymmetric VLAN, QoS, IGMP, Trunking and Mirroring
Up to 15 Watts per port with a 170 Watt total power budget

The 24-Port 10/100Mbps Web Smart PoE Switch with 4 Gigabit Ports and 2 Shared Mini-GBIC Slots (model TPE-224WS) delivers a 12.8Gbps switching capacity with Power over Ethernet (PoE) technology and managed layer 2 features at a reduced cost. Support for SNMP v1, 802.1x, STP, 802.1Q VLAN, QoS, IGMP snooping, Broadcast Storm Control and port Trunking provide a cost effective, scalable and secure backbone PoE switch solution for SMB networks.
Power over Ethernet (PoE) technology reduces equipment and installation costs by delivering data and power over existing Ethernet cables. SNMP support enables the switch to provide valuable status and event information, saving system administrators time and resources. Access the Web-browser management interface and segment up to 256 Virtual Local Area Networks, manage network priority with 802.1p support and dedicate bandwidth with port-based Trunking.

Standard

• IEEE 802.3af Power over Ethernet
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000base-T
• IEEE 802.3z 1000Base-SX/LX (Mini-GBIC)
• IEEE 802.3x Flow Control and Back Pressure
• IEEE 802.3ad Port Trunk
• IEEE 802.1D Spanning Tree Protocol
• IEEE 802.1p QoS
• IEEE 802.1Q VLAN Tag
• IEEE 802.1X Authentication
• SNMP v1

Network Media

• Ethernet: UTP/STP Cat. 3, 4, 5 up to 100m
• Fast Ethernet: UTP/STP Cat. 5, 5e up to 100m
• Gigabit: UTP/STP Cat. 5, 5e, 6 up to 100m
• PoE: 4-pair UTP Cat. 5, 5e up to 100m
• Protocol / Topology
• CSMA/CD, Star

LAN Ports

• 24 x 10/100Mbps Auto-MDIX PoE ports
• 4 x 10/100/1000Mbps Auto-MDIX Gigabit ports
• 2 x 1000Base-SX/LX Mini-GBIC slots (shared with Gigabit ports)

Data Transfer Rate

• Ethernet: 10/20Mbps (Half/Full Duplex)
• Fast Ethernet: 100/200Mbps (Half/Full Duplex)
• Gigabit: 2000Mbps (Full Duplex)

Address Table

• 8K entries
• Switch Fabric
• 12.8Gbps forwarding capacity

Forwarding Rate

• 9.5 Mpps
• Data RAM Buffer
• 128KBytes

Power Supply

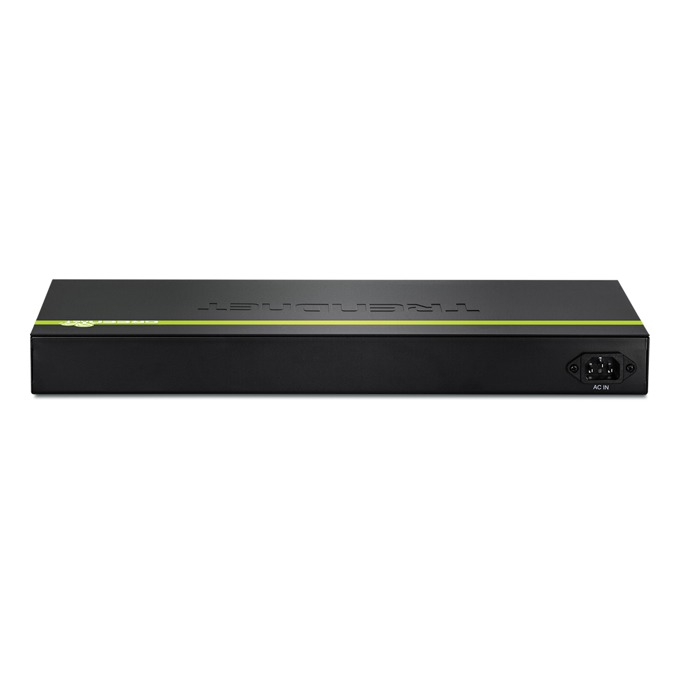

• 100~240V AC, 50/60Hz, internal universal power supply
• Diagnostic LEDs
• Per unit: Power, System
• Per port: Link/Activity, Speed
• PoE: PoE Status

Power Consumption

• 26.5 watts (no Powered Device (PD) connected)
• 170 watts max. power to PoE ports (11 x 15.4 watts PoE PD connected)
• 196.5 watts max. power total consumption

Dimensions (W x D x H)

• 440 x 210 x 45 mm (17.3 x 8.27 x 1.75 in.)

Weight

• 4.4kg (9.75lbs)

Temperature

• Operating: 0° ~ 40° C (32° ~ 104°F); storage: -10° ~ 70° C (14° ~ 158°F)

Humidity

• 10%- 90% (non-condensing); storage: 5% ~ 90% RH (non-condensing)

Certifications

• CE, FCC
• PoE
• Power over Ethernet
• Up to 15.4 watts per port; Max 170W for all PoE ports
• PD classification Identify; Manual setting for PoE power limitation
• Supports PoE priority setting; PoE over current protection and
• PoE short circuit protection
• RJ-45 PoE power (pin 3,6 for power+ and pin 1,2 for power-)
