TP-Link
Суич TP-Link TL-SL1218MP
Артикул №: 1000000038
Категория:
Суич
158,99 €
✓ Налично във външен склад

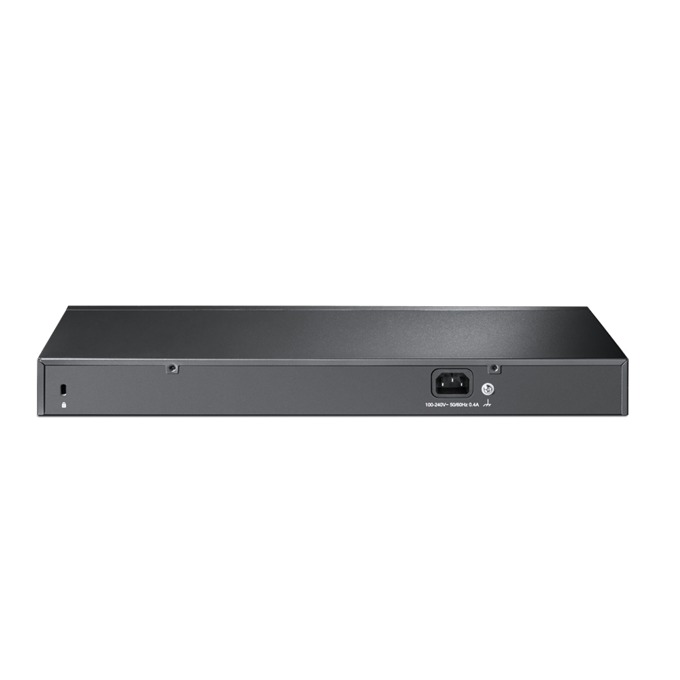

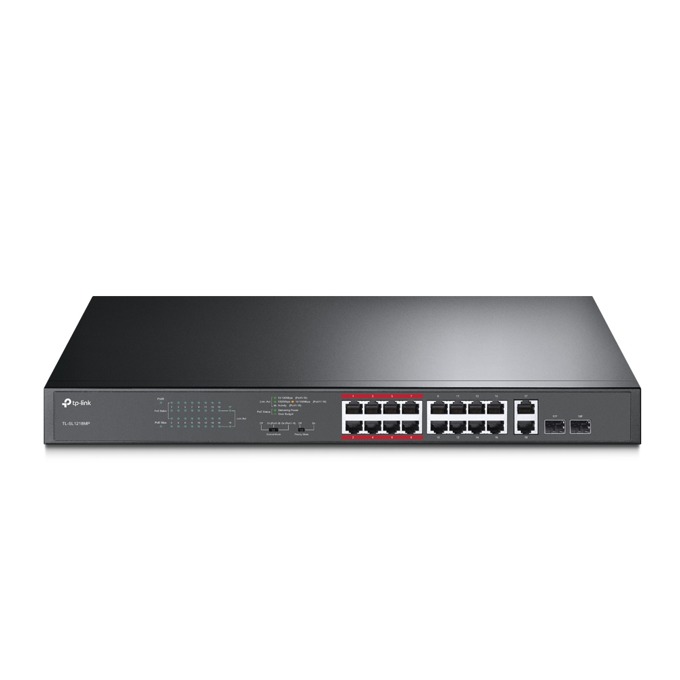

TP-Link TL-SL1218MP
Спецификации:
HARDWARE FEATURES
Interface:
- 16 PoE+ 10/100Mbps RJ45 Ports
- 2 10/100/1000Mbps RJ45 Ports
- 2 Combo Gigabit SFP Slots
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity:
2 Fans
Physical Security Lock
Yes
Power Supply
100-240V AC, 50/60 Hz
Backup Bandwidth
7.2 Gbps
PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port16
PoE Power Budget: 192W
Mac Address Table
8K
Dimensions ( W x D x H )
17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
Max Power Consumption
18.73 W (220/50Hz. no PD connected)
217.22 W (220/50Hz. with 192W PD connected)
Max Heat Dissipation
63.89 BTU/h (no PD connected)
741.15 BTU/h (with 192W PD connected)
SOFTWARE FEATURES
Advanced Features
Compatible With IEEE 802.3at/af Compliant PDs
Port Priority Mode
Extend Mode (Up to 250m PoE power supply and data transmission)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transmission Method
Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents
TL-SL1218MP, Power Cable, Installation Guide, Two mounting brackets and the fittings
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
Спецификации:
HARDWARE FEATURES
Interface:
- 16 PoE+ 10/100Mbps RJ45 Ports
- 2 10/100/1000Mbps RJ45 Ports
- 2 Combo Gigabit SFP Slots
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity:
2 Fans
Physical Security Lock
Yes
Power Supply
100-240V AC, 50/60 Hz
Backup Bandwidth
7.2 Gbps
PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port16
PoE Power Budget: 192W
Mac Address Table
8K
Dimensions ( W x D x H )
17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
Max Power Consumption
18.73 W (220/50Hz. no PD connected)
217.22 W (220/50Hz. with 192W PD connected)
Max Heat Dissipation
63.89 BTU/h (no PD connected)
741.15 BTU/h (with 192W PD connected)
SOFTWARE FEATURES
Advanced Features
Compatible With IEEE 802.3at/af Compliant PDs
Port Priority Mode
Extend Mode (Up to 250m PoE power supply and data transmission)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transmission Method
Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents
TL-SL1218MP, Power Cable, Installation Guide, Two mounting brackets and the fittings
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
Технически характеристики
| 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX | UTP category 5, 5e cable (maximum 100m) |
| 1000BASE-T | UTP category 5, 5e, 6 or above cable (maximum 100m) |
| Standard | 802.3at/802.3af compliant |
| PoE Ports | Port1- Port16 |
| PoE Power Budget | 192W |
| Environment Operating Temperature | 0°C~40°C (32°F~104°F) |
| Температура на съхранение | -40°C~70°C (-40°F~158°F) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
