Суич TP-LINK TL-SG1016PE
Артикул №: 1000004333
Категория:
Суич
148,99 €
✓ Налично във външен склад

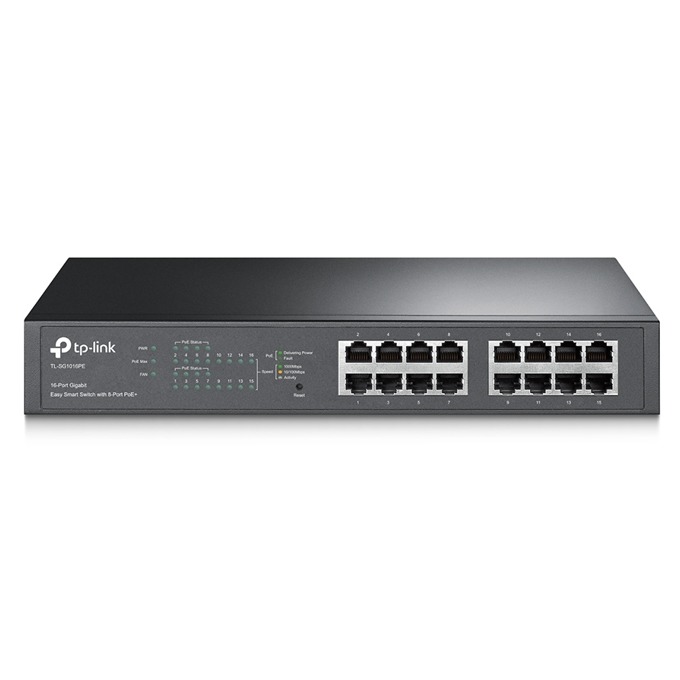

TP-LINK 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+
TL-SG1016PE
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
Technical Specifications:
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface: 16 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T:
UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX:
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T:
UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
TL-SG1016PE
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
Technical Specifications:
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface: 16 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T:
UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX:
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T:
UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Технически характеристики
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Интерфейс | 16 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX |
| Switching Capacity | 32Gbps |
| Packet Forwarding Rate | 23.8Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mbit |
| Jumbo Frame | 9KB |
| Transmission Method | Store-And-Forward |
| System Requirements | Microsoft® Windows® for running Utility |
| Работна температура | 0℃~40℃ (32℉~104℉) |
| Температура на съхранение | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Fan Quantity | 1 |
| Захранване | 100-240VAC, 50/60Hz |
| Power Consumption (Maximum) | 124.4W (220V/50Hz) |
| PoE Ports (RJ45) | Standard: 802.3 at compliant |
| PoE Ports | Port 1- Port 8 |
| PoE Power Budget | 110W |
| Dimensions ( W x D x H ) | 294 x 180 x 44 mm |
