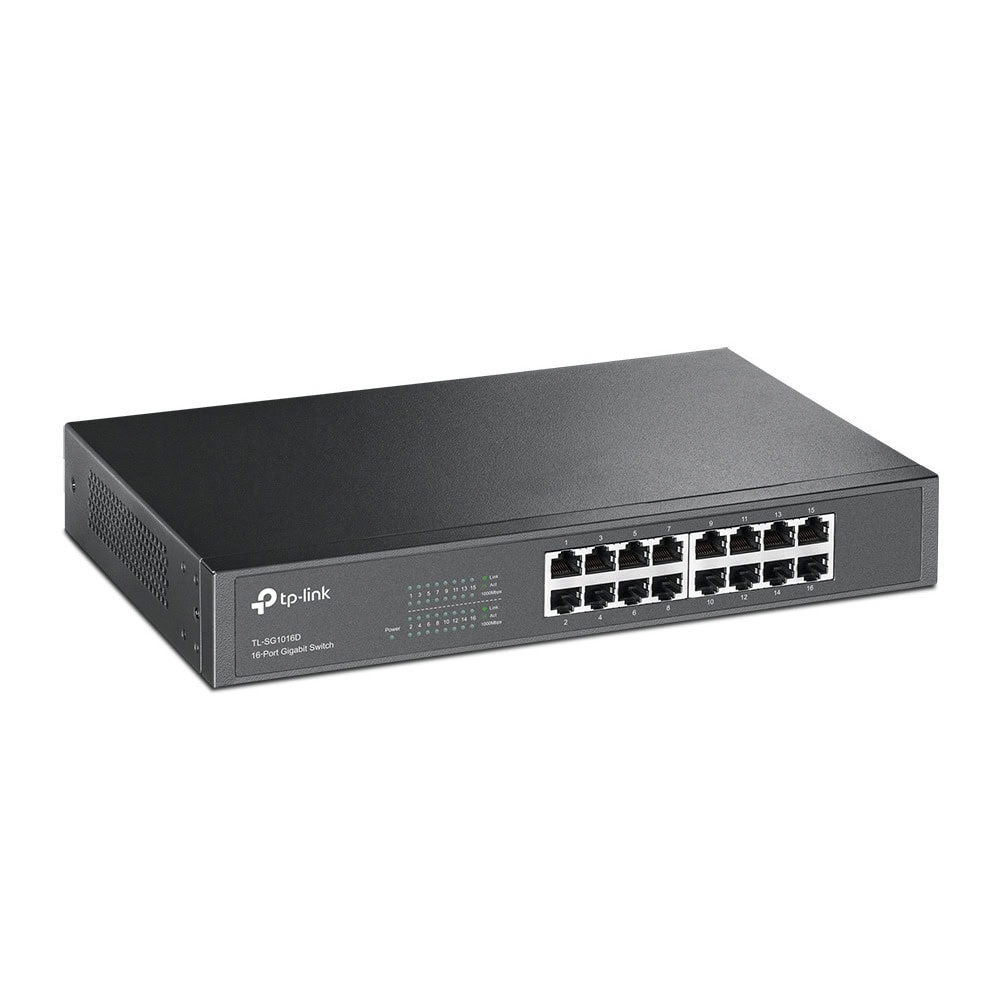

Суич TP-Link TL-SG1016D

TP-Link TL-SG1016D
16-Port Gigabit Switch

- 16 10/100/1000Mbps ports
- Innovative energy-efficient technology saves power up to 40%*
- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
- Plug & play design

Standards and Protocols:
IEEE802.3, 802.3u, 802.3ab, 802.3x
CSMA/CD, TCP/IP

Basic Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode

Switch capacity - 32Gbps
MAC Address Table - 8k

Forwarding Rate:
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port

Transmission Method - Store-and-Forward
Ports - 16 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

Network Media
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100U` STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100U` STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
