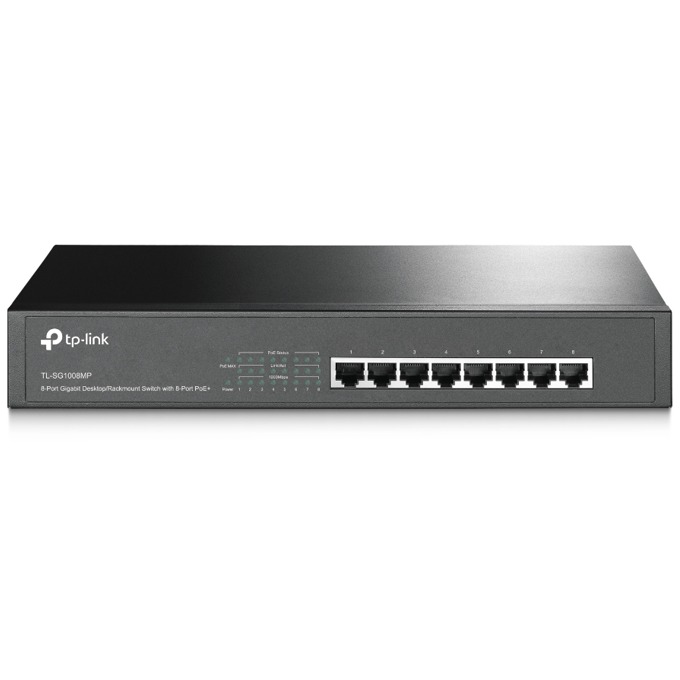

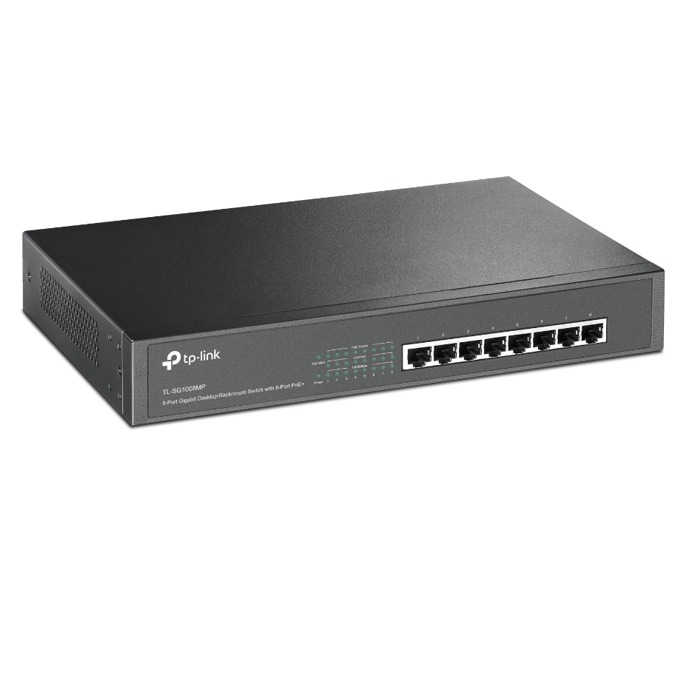

Суич TP-Link TL-SG1008MP

TP-Link TL-SG1008MP е 8 портов гигабитов PoE+ комутатор, подходящ за монтаж в офис, или сървърно помещение.

- 8x 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ ports to power 8 PoE devices at the same time
- Works with IEEE 802.3af or 802.3at compliant up to 30W per port device
- Innovative energy-efficient technology reduces power consumption
- Rack mountable with included rack mount bracket
- Total PoE power budget up to 126W
- Plug and play design, no configuration required

HARDWARE FEATURES

Interface:
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity: 1

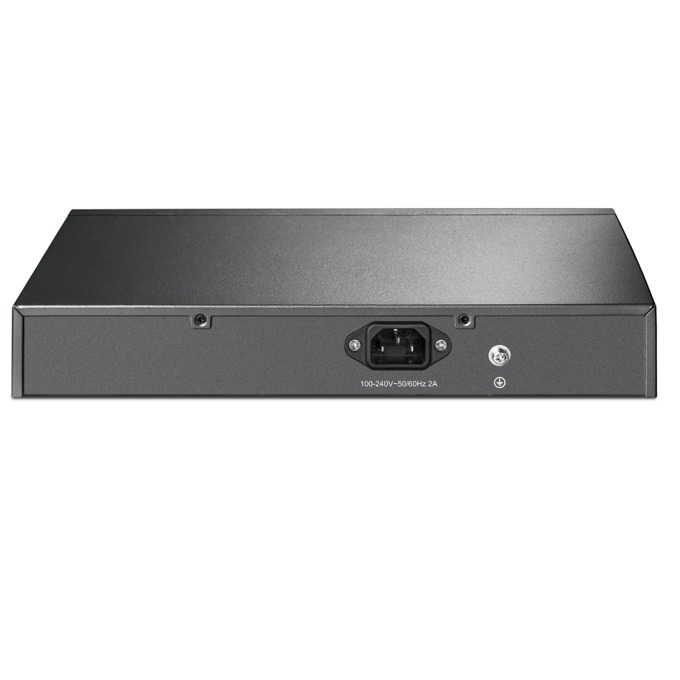

Power Supply: 100-240VAC, 50/60Hz

PoE+ Ports(RJ45)

Standard: 802.3at/af (30W)
PoE+ Ports: 8 Ports
Total PoE Budget: 126W

Backbound Bandwidth: 16Gbps
Mac Address Table: 4K
Buffer Size: 1.5Mbits

Dimensions: ( W x D x H ) 294 x 180 x 44 mm

Mounting: 13" and 19" 1U rack mountable

Max Power Consumption: 9.9W(no PD load) 144.4W(with 124W PD load)
Max Heat Dissipation: 33.7BTU/h(no PD load) 492.6BTU/h(with 124W PD load)

SOFTWARE FEATURES

Advanced Features:
Compatible With IEEE 802.3af/at Compliant power devices (PD)
Port Priority Function
MAC Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control

Transfer Method: Store-And-Forward
