TP-Link
Суич TP-Link TL-SG1006PP
Артикул №: 1000029620
Категория:
Суич
58,99 €
✓ Налично във външен склад

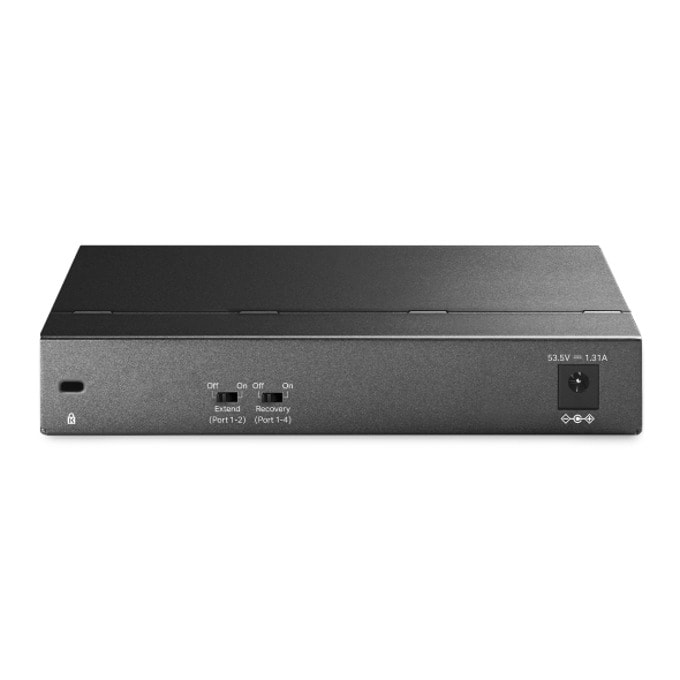

TP-Link TL-SG1006PP
6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
- 6× 10/100/1000 Mbps RJ45 ports
- With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
HARDWARE FEATURES
| Интерфейс | • 6× 10/100/1000Mbps RJ45 Ports · • AUTO Negotiation · • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) · • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) · • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Packet Forwarding Rate | 8.928 Mpps |
| PoE Ports (RJ45) | • Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at · • Power Supply: 64 W |
| Mac Address Table | 4K |
| Switching Capacity | 12 Gbps |
| Dimensions ( W x D x H ) | 6.2x4.0x1.0 in (158x101x25 mm) |
| Max Power Consumption | • 4.75 W (220/50 Hz. no PD connected) · • 71.46 W (220/50 Hz. with 64 W PD connected) |
| Max Heat Dissipation | • 16.20 BTU/h (220/50 Hz. no PD connected) · • 243.68 BTU/h (220/50 Hz. with 64 W PD connected) |
SOFTWARE FEATURES
| Advanced Features | • Compatible With IEEE 802.3af/at/bt Compliant PDs · • Mac Address Auto-Learning And Auto-Aging · • IEEE 802.3x Flow Control · • 802.1p/DSCP QoS · • IGMP Snooping · • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) · • PoE Auto Recovery (Ports 1-4) |
| Transfer Method | Store-And-Forward |
OTHERS
| Сертификация | FCC, CE, RoHS |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); · • Storage Temperature: -40–70 ℃ (-40–158 ℉) · • Operating Humidity: 10–90% RH non-condensing · • Storage Humidity: 5–90% RH non-condensing |
