TP-Link
Суич TP-Link TL-SG1005P-PD
Артикул №: 1000137711
Категория:
Мрежови адаптери
41,99 €
✓ Ограничена наличност

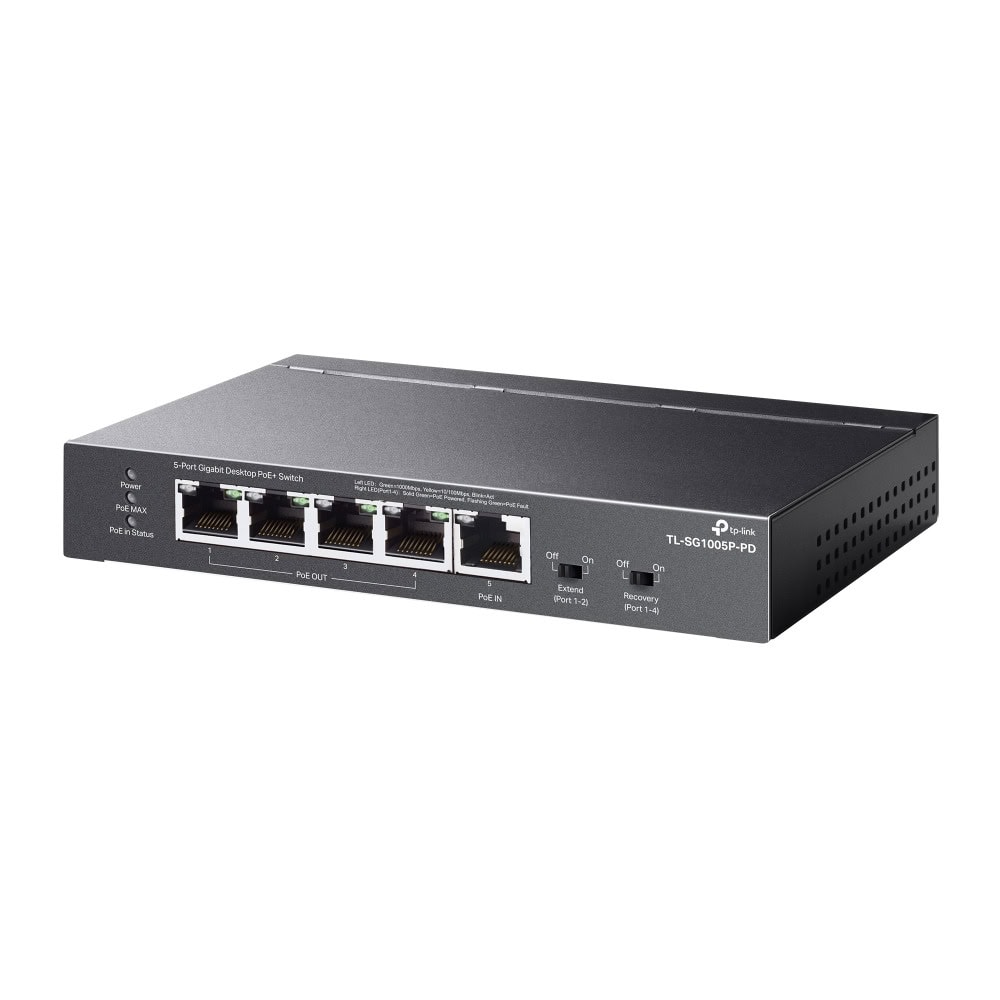

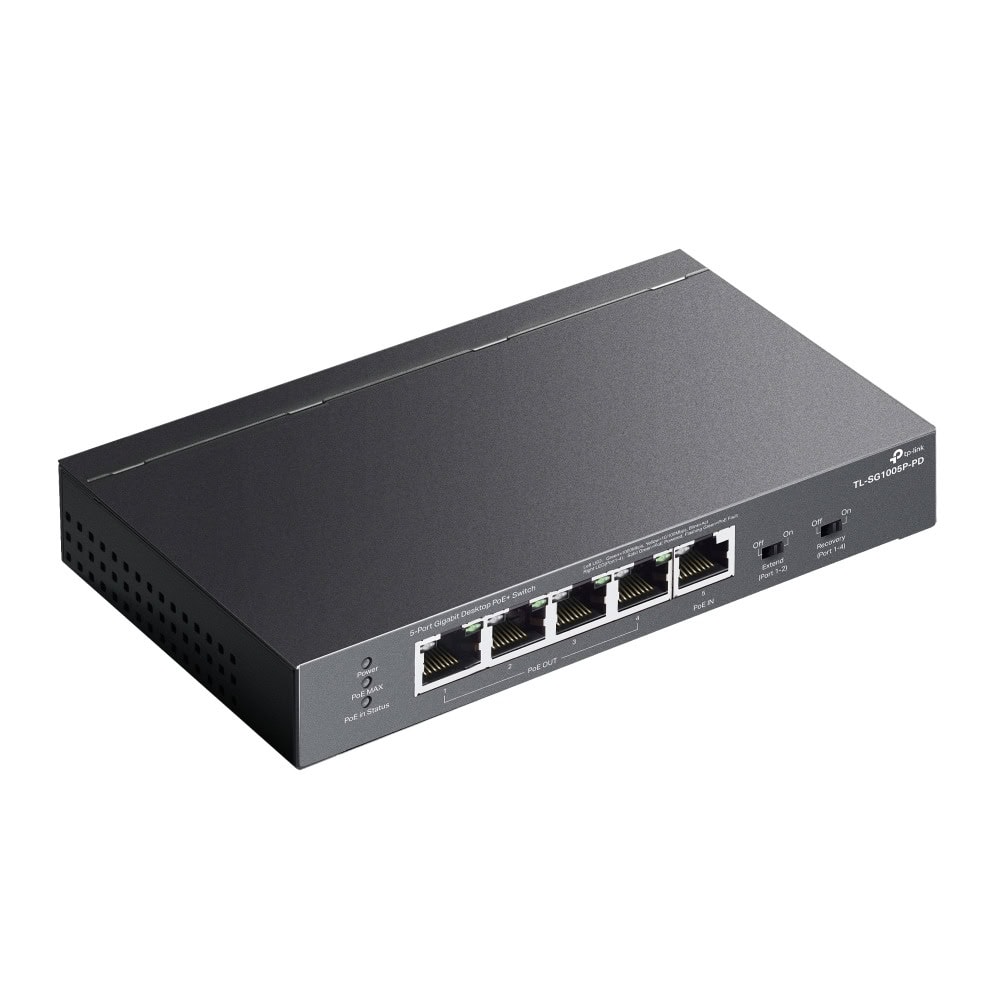

5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out
| Портове | 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports |
| 1-Port Gigabit PoE++ In and 4-Port PoE+ Out | Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.* |
| Long-Range PoE+ | With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas. |
| PoE Auto Recovery | It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices. |
| Metal Casing | Durable metal casing and desktop/wall-mounting design are well-suited for different environments. |
| Silent Operation | Industry-leading fanless design ensures silent operation, ideal for any home or business. |
| Plug and Play | Не configuration and installation required. |
| Захранване | The product only supports PoE power supply, not AC or DC power supply. |
| HARDWARE FEATURES | Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p Interface: • 5× 10/100/1000Mbps RJ45 Ports · • 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4) · • 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at) · • AUTO Negotiation · • AUTO MDI/MDIX Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) · • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) · • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity: Fanless Power Supply: Only Powered by PoE Device PoE Ports (RJ45): • PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4 · • PoE Out Ports: Ports 1-4, compliance with 802.3af/at · • PoE Power Budget: · -66 W when powered by 802.3bt Type 4 (90 W) · -47 W when powered by 802.3bt Type 3 (60 W) · -21 W when powered by 802.3at (30 W) · -9 W when powered by 802.3af (15.4 W) Dimensions ( W x D x H ): 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) Max Power Consumption: • 2.68 W (90W PoE In, with no PD connected) · • 68.59 W (90W PoE In, with 66 W PD connected) Max Heat Dissipation: • 9.112 BTU/h (90W PoE In, with no PD connected) · • 233.206 BTU/h (90W PoE In, with 66 W PD connected) |
| PERFORMANCE | Switching Capacity: 10 Gbps Packet Forwarding Rate: 7.44 Mpps MAC Address Table: 2k |
| SOFTWARE FEATURES | Advanced Features: • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) · • PoE Auto Recovery (Ports 1-4) · • Mac Address Auto-Learning and Auto-Aging · • IEEE 802.3x Flow Control · • 802.1p/DSCP QoS · • IGMP Snooping Transfer Method: Store-And-Forward |
