TP-Link
Суич TP-LINK SX3032F
Артикул №: 1000035160
Категория:
Суич
1 026,99 €
✓ Налично във външен склад
SX3032F

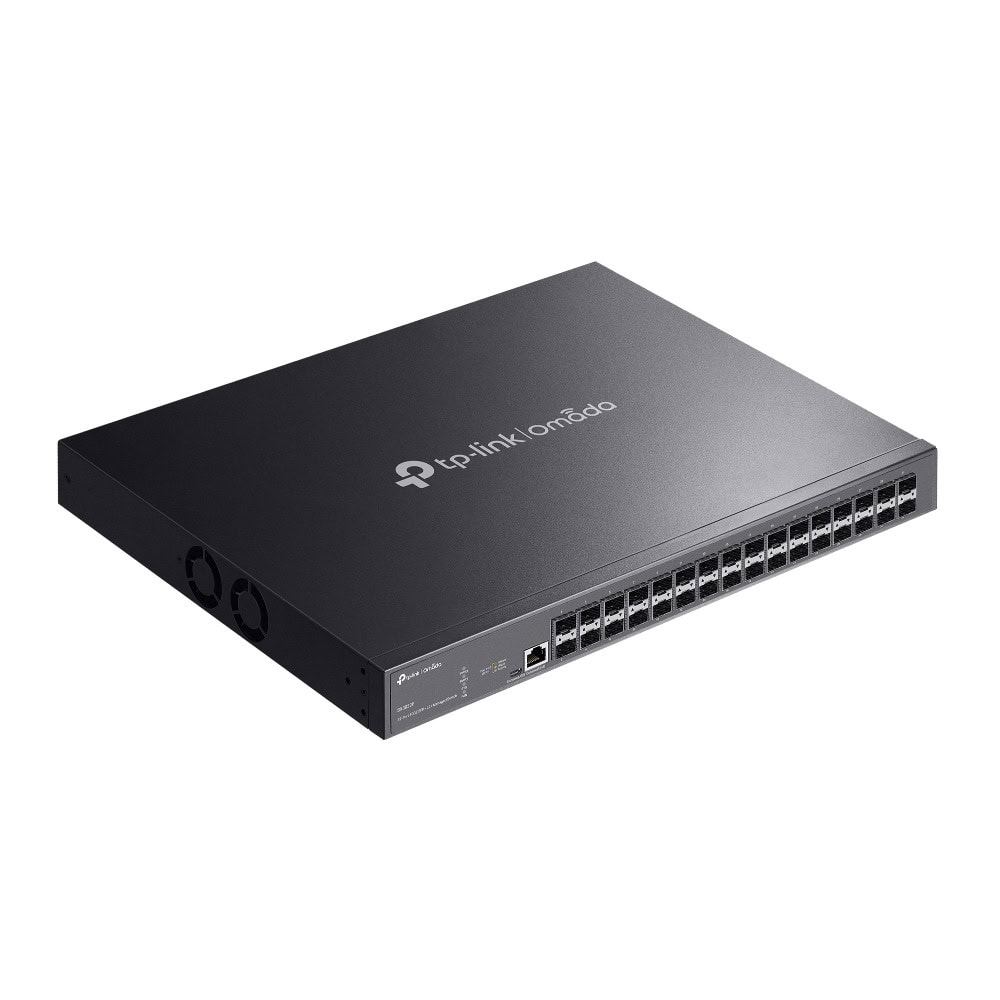

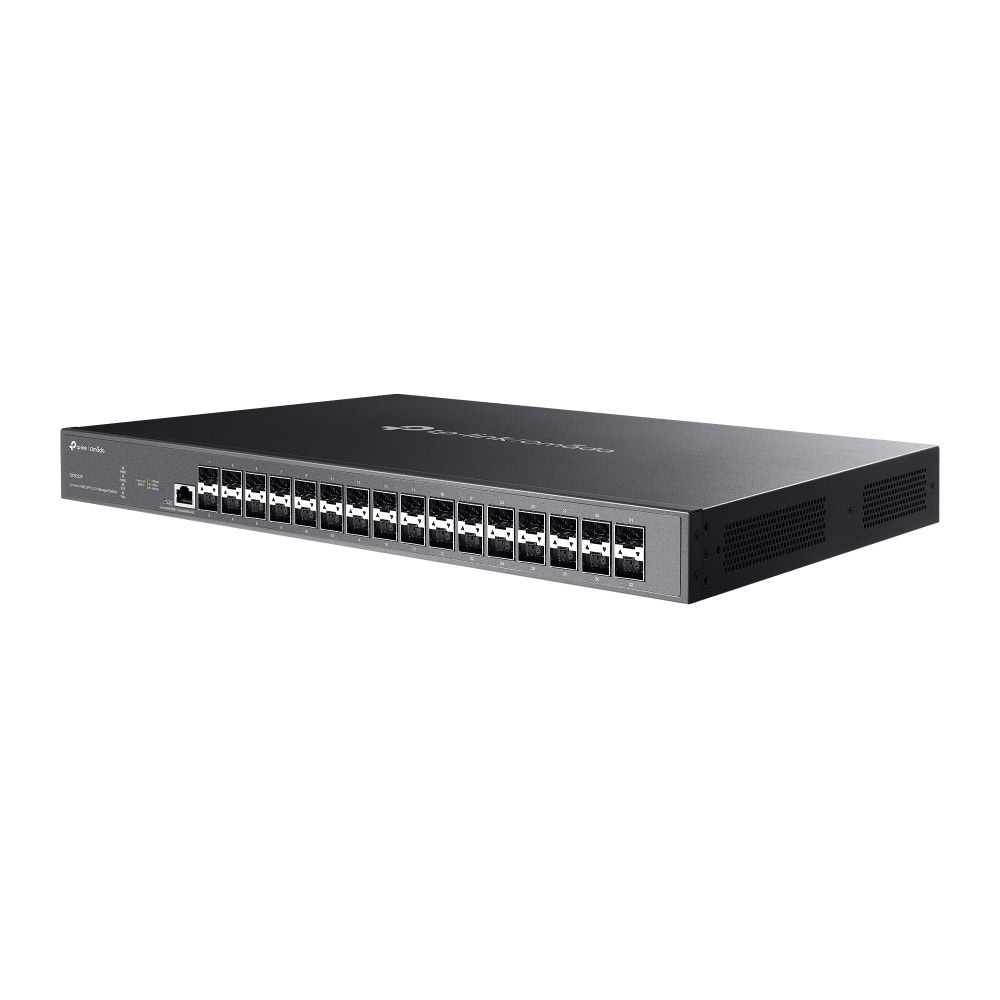

Omada 32-Port 10GE SFP+ L2+ Managed Switch
- 32× 10 Gbps SFP+ slots
- 640 Gbps switching capacity
- Two internal fixed power supply modules back each other up
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
ХАРДУЕРНИ ХАРАКТЕРИСТИКИ
| Интерфейс | • 32× 1/10Gbps SFP+ Slots · • 1× RJ45 Console Port · • 1× Micro-USB Console Port |
| Брой вентилатори | 2 internal fixed fans |
| Защита с физическо заключване | √ |

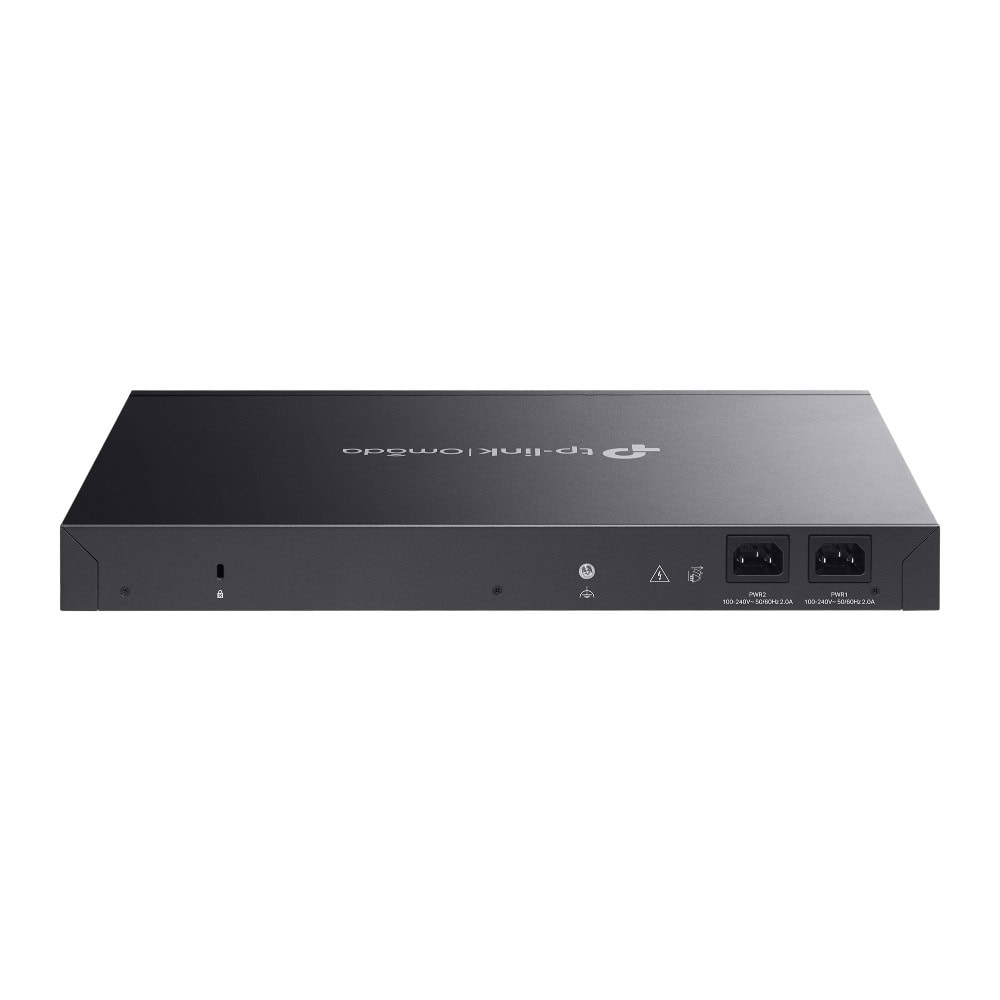

| Захранване | • 1+1 Redundant Power Supply (internal fixed) · • 100-240 V AC~50/60 Hz |
| Размери (Ш x Д x В ) | 17.3×13.0×1.7 in (440×330×44 mm) |
| Монтаж | Rack Mountable |
| Макс. консумация на енергия | 49.4 W (220 V / 50 Hz) |
ПРОИЗВОДИТЕЛНОСТ
| Комутационен капацитет | 640 Gbps |
| Скорост на предаване на пакети данни | 240 Mpps |
| Таблица на МАС адресите | 32 K |
| Packet Buffer Memory | 24 Mbit |
| Jumbo кадър | 9 KB |
СОФТУЕРНИ ХАРАКТЕРИСТИКИ
| Качество на услугата | • 8 priority queues · • 802.1p CoS/DSCP priority · • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR · • Bandwidth Control: Port/Flow-based Rating Limiting · • Smoother Performance · • Action for Flows: QoS remark (802.1P Remark, DSCP Remark) |
| L2 and L2+ Features | • 128 IP Interfaces: Support IPv4/IPv6 Interface · • Static Routing: 48 IPv4/IPv6 Static Routes · • Static ARP: 128 static entries · • 510 ARP Entries · • Proxy ARP · • Gratuitous ARP · • DHCP Server · • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay · • DHCP L2 Relay · • Link Aggregation · • Spanning Tree Protocol · • Loopback Detection · • 802.3x Flow Control · • Mirroring |
| L2 Multicast | • Supports 4000 (IPv4, IPv6) IGMP groups · • IGMP Snooping · • IGMP Authentication · • Multicast VLAN Registration (MVR) · • MLD Snooping · • Multicast Filtering: 256 profiles and 16 entries per profile |
| Разширени характеристики | • Automatic Device Discovery · • Batch Configuration · • Batch Firmware Upgrading · • Intelligent Network Monitoring · • Unified Configuration · • Reboot Schedule · · ISP Features: · • L2PT (Layer 2 Protocol Tunneling) · • Device Link Detect Protocol (DLDP) · • PPPoE ID Insertion · • ERPS · • 802.3ah Ethernet Link OAM · • DDM · • sFlow |
| VLAN | • VLAN Group (802.1q VLAN): Max 4K VLAN Groups · • 802.1Q Tagged VLAN · • MAC VLAN: 30 Entries · • Protocol VLAN · • GVRP · • VLAN VPN (QinQ): VLAN Mapping, VLAN Replace · • Voice VLAN |
| Access Control List | • Time-based ACL · • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type · • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS · • Combined ACL · • Packet Content ACL · • IPv6 ACL · • Policy: Mirroring, Redirect, Rate Limit, QoS Remark · • ACL applies to Port/VLAN |
| Защита | • IP-MAC-Port Binding · - 512 Entries · - DHCP Snooping · - ARP Inspection · - IPv4 Source Guard · • IPv6-MAC-Port Binding · - 512 Entries · - DHCPv6 Snooping · - ND Detection · - ND Snooping · - IPv6 Source Guard · • DoS Defend · • Static/Dynamic Port Security: Up to 64 MAC addresses per port · • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode · • 802.1X · - Port base authentication · - MAC-based authentication · - VLAN Assignment · - MAB · - Guest VLAN · - Radius authentication and accountability support · • AAA (including TACACS+) · • Port Isolation · • Secure web management through HTTPS with SSLv3/TLS 1.2 · • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 · • IP/Port/MAC-based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6 · • Multicast Listener Discovery (MLD) Snooping · • IPv6 ACL · • IPv6 Interface · • Static IPv6 Routing · • IPv6 neighbor discovery (ND) · • Path maximum transmission unit (MTU) discovery · • Internet Control Message Protocol (ICMP) version 6 · • TCPv6/UDPv6 · • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs | • MIB II (RFC1213) · • Interface MIB (RFC2233) · • Ethernet Interface MIB (RFC1643) · • Bridge MIB (RFC1493) · • P/Q-Bridge MIB (RFC2674) · • RMON MIB (RFC2819) · • RMON2 MIB (RFC2021) · • Radius Accounting Client MIB (RFC2620) · • Radius Authentication Client MIB (RFC2618) · • Remote Ping, Traceroute MIB (RFC2925) · • Support TP-Link private MIB |
MANAGEMENT
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller |
| Centralized Management | • Omada Cloud-Based Controller · • Omada Hardware Controller · • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI · • Command Line Interface (CLI) through the console port, telnet · • SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) · • SDM Template · • DHCP/BOOTP Client · • 802.1ab LLDP/LLDP-MED · • DHCP Auto Install · • Dual Image, Dual Configuration · • CPU Monitoring · • Password Recovery · • SNTP · • System Log |
