TP-Link
Суич TP-Link Omada SX3832
Артикул №: 1000037600
Категория:
Суич
1 539,99 €
✓ Ограничена наличност

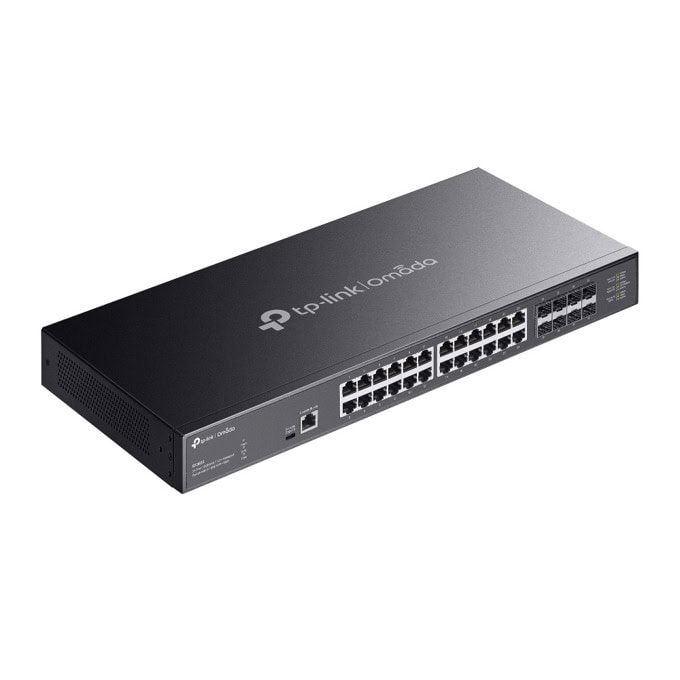

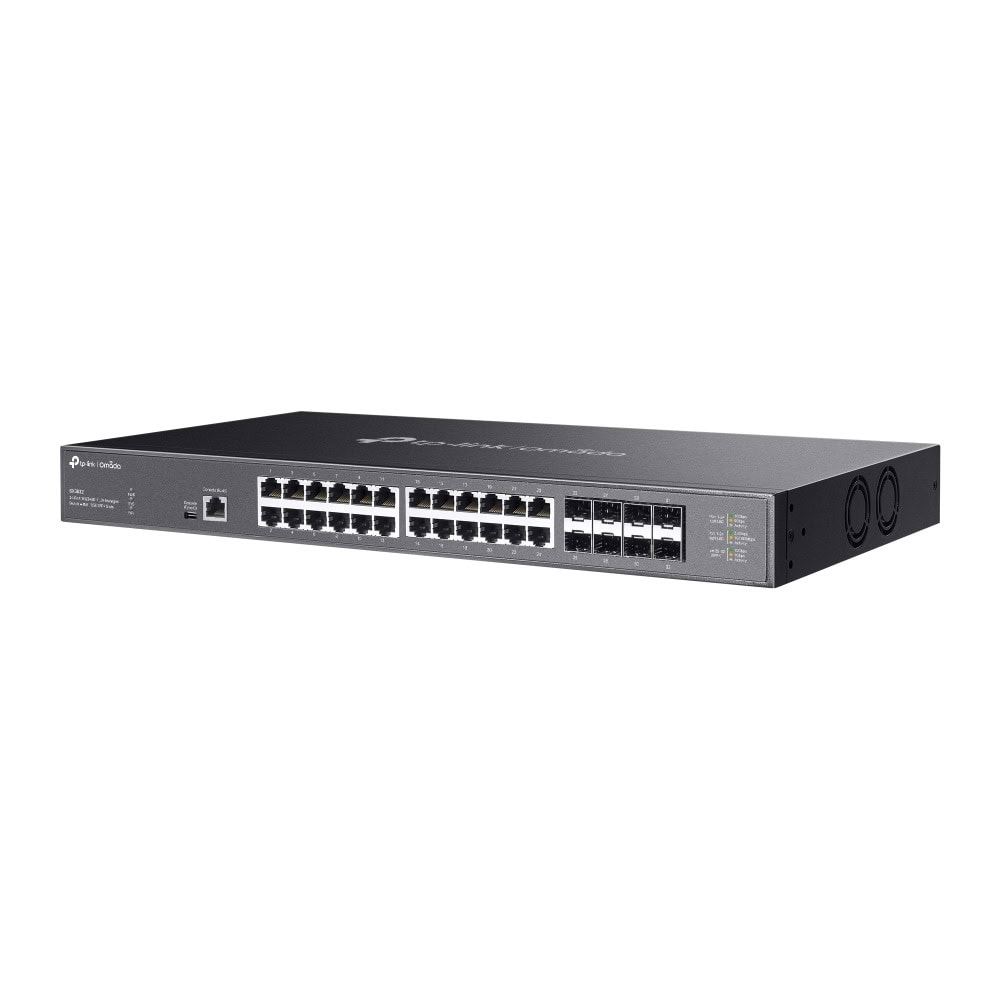

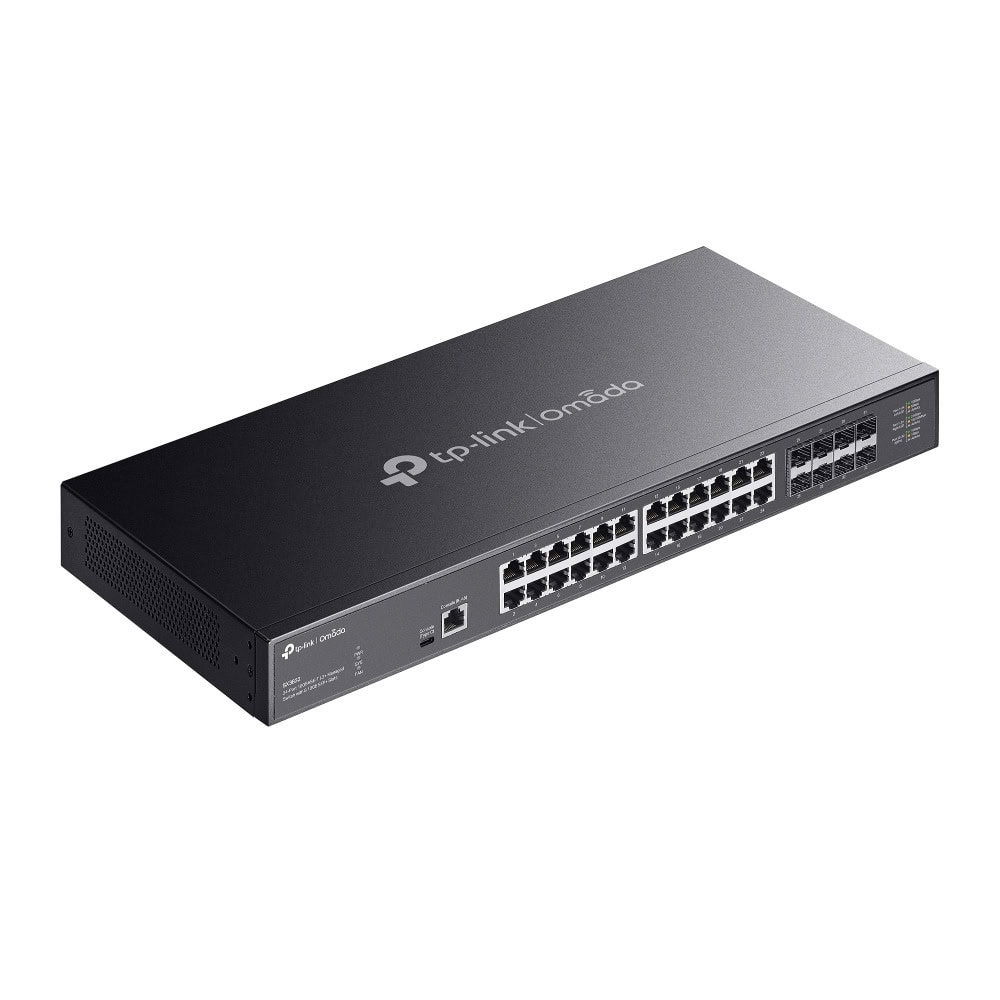

TP-Link Omada SX3832
- 24× 1/2.5/5/10 Gbps RJ45 ports
- 8× 1/10 Gbps SFP+ slots
- 640 Gbps switching capacity
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
HARDWARE FEATURES
| Интерфейс | • 24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) · • 8× 1/10G SFP+ Slots** · • 1× RJ45 Console Port · • 1× USB Type C Console Port |
| Fan Quantity | 2 |
| Physical Security Lock | √ |
| Захранване | 100-240 V AC~50/60 Hz |
| Dimensions ( W x D x H ) | 17.3×8.7×1.7 in (440×220×44 mm) |
| Монтаж | Rack Mountable |
| Max. Power Consumption | 104.9 W (@110V/60Hz) · 106.5 W (@220V/50Hz) |
| Max Heat Dissipation | 357.81 BTU/hr (@110 V/60 Hz) · 363.23 BTU/hr (@220 V/50 Hz) |
PERFORMANCE
| Switching Capacity | 640 Gbps |
| Packet Forwarding Rate | 240 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 24 Mbit |
| Jumbo Frame | 9 KB |
SOFTWARE FEATURES
| Quality of Service | • 8 priority queues · • 802.1p CoS/DSCP priority · • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR · • Bandwidth Control: Port/Flow-based Rating Limiting · • Smoother Performance · • Action for Flows: QoS remark (802.1P Remark, DSCP Remark) |
| L2 and L2+ Features | • 128 IP Interfaces: Support IPv4/IPv6 Interface · • Static Routing: 48 IPv4/IPv6 Static Routes · • Static ARP: 128 static entries · • 510 ARP Entries · • Proxy ARP · • Gratuitous ARP · • DHCP Server · • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay · • DHCP L2 Relay · • Link Aggregation · • Spanning Tree Protocol · • Loopback Detection · • 802.3x Flow Control · • Mirroring |
| L2 Multicast | • Supports 4,000 (IPv4, IPv6) IGMP groups · • IGMP Snooping · • IGMP Authentication · • Multicast VLAN Registration (MVR) · • MLD Snooping · • Multicast Filtering: 256 profiles and 16 entries per profile |
| Advanced Features | • Automatic Device Discovery · • Batch Configuration · • Batch Firmware Upgrading · • Intelligent Network Monitoring · • Abnormal Event Warnings · • Unified Configuration · • Reboot Schedule · · ISP Features: · • L2PT (Layer 2 Protocol Tunneling) · • Device Link Detect Protocol (DLDP) · • PPPoE ID Insertion · • ERPS · • 802.3ah Ethernet Link OAM · • DDM |
| VLAN | • VLAN Group: Max 4K VLAN Groups · • 802.1q Tagged VLAN · • MAC VLAN: 256 Entries · • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 · • Private VLAN · • GVRP · • VLAN VPN: VLAN Mapping, VLAN Replace · • Voice VLAN |
| Access Control List | • Time-based ACL · • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type · • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS · • Combined ACL · • Packet Content ACL · • IPv6 ACL · • Policy: Mirroring, Redirect, Rate Limit, QoS Remark · • ACL applies to Port/VLAN |
| Security | • IP-MAC-Port Binding · - 512 Entries · - DHCP Snooping · - ARP Inspection · - IPv4 Source Guard: 96 Entries · • IPv6-MAC-Port Binding · - 512 Entries · - DHCPv6 Snooping · - ND Detection · - ND Snooping · - IPv6 Source Guard: 95 Entries · • DoS Defend · • DHCP Filter · • Static/Dynamic Port Security: Up to 64 MAC addresses per port · • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode · • 802.1X · - Port-based authentication · - Mac-base authentication · - VLAN Assignment · - MAB · - Guest VLAN · - Radius authentication and accountability support · • AAA (including TACACS+) · • Port Isolation · • Secure web management through HTTPS with SSLv3/TLS 1.2 · • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 · • IP/Port/MAC-based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6 · • Multicast Listener Discovery (MLD) Snooping · • IPv6 ACL · • IPv6 Interface · • Static IPv6 Routing · • IPv6 neighbor discovery (ND) · • Path maximum transmission unit (MTU) discovery · • Internet Control Message Protocol (ICMP) version 6 · • TCPv6/UDPv6 · • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs | • MIB II (RFC1213) · • Interface MIB (RFC2233) · • Ethernet Interface MIB (RFC1643) · • Bridge MIB (RFC1493) · • P/Q-Bridge MIB (RFC2674) · • RMON MIB (RFC2819) · • RMON2 MIB (RFC2021) · • Radius Accounting Client MIB (RFC2620) · • Radius Authentication Client MIB (RFC2618) · • Remote Ping, Traceroute MIB (RFC2925) · • Support TP-Link private MIB |
Management Features
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller |
| Centralized Management | • Omada Cloud-Based Controller · • Omada Hardware Controller · • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI · • Command Line Interface (CLI) through the console port, telnet · • SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) · • SDM Template · • DHCP/BOOTP Client · • 802.1ab LLDP/LLDP-MED · • DHCP AutoInstall · • Dual Image, Dual Configuration · • CPU Monitoring · • Cable Diagnostics · • IEEE 802.3az Energy Efficient Ethernet (EEE) · • Password Recovery · • SNTP · • System Log |
