TP-Link
Суич TP-Link Omada DS111P
Артикул №: 1000137295
Категория:
Мрежови адаптери
38,99 €
✓ Налично във външен склад
DS111P

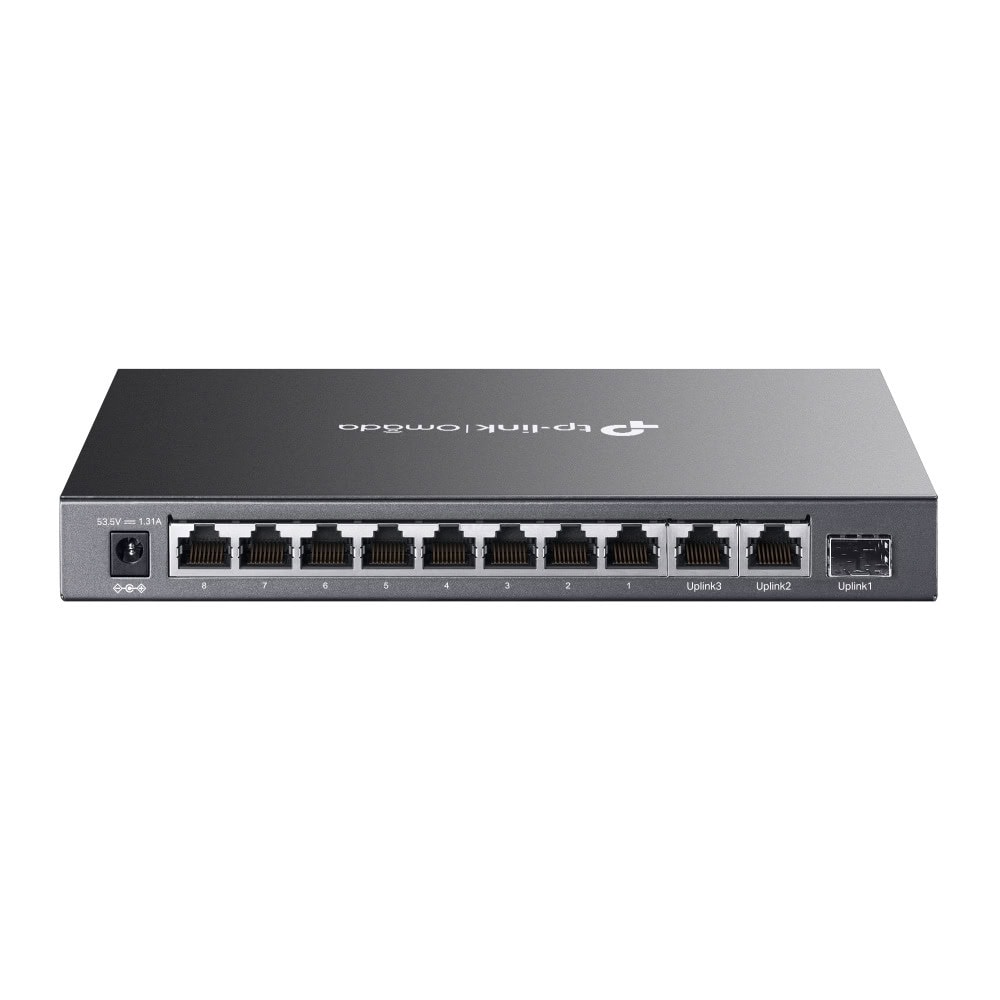

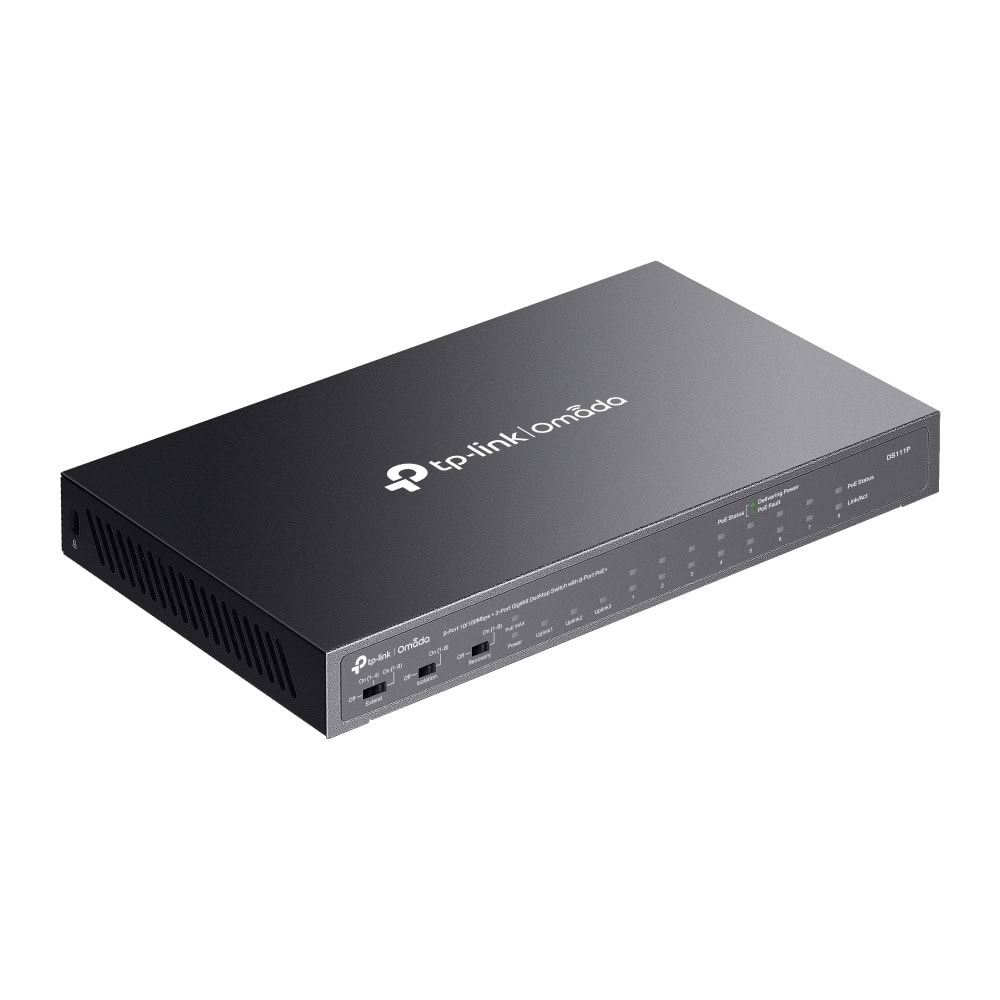

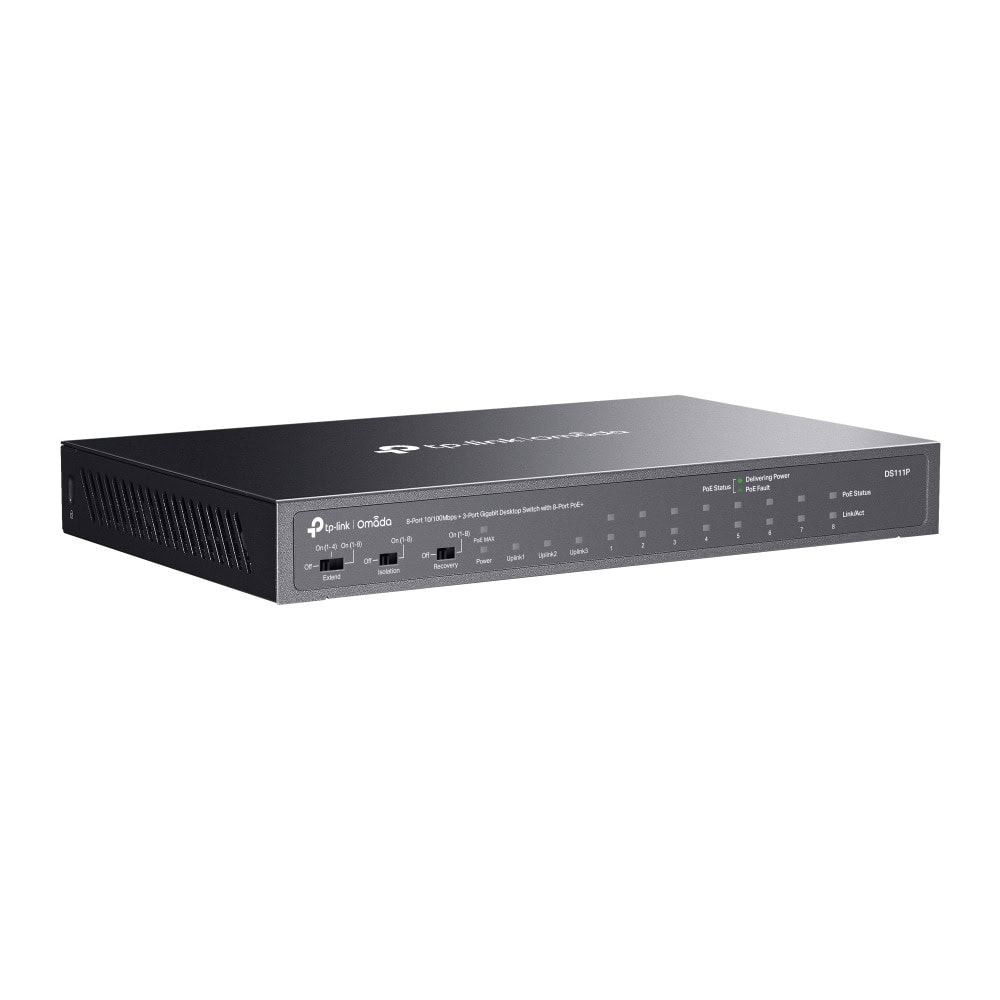

Omada 8-Port 10/100Mbps + 3-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE+
- 8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
- 8× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for 8 PoE ports*
- Up to 250 m (802 ft) data and power transmitting range under Extend Mode**
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and Play. No configuration or central management required.
Power over Ethernet, Flexible Network Deployment
| HARDWARE FEATURES | Interface: • 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port · • AUTO Negotiation · • AUTO MDI/MDIX Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) · • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity: Fanless Physical Security Lock: Yes External Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A) Packet Forwarding Rate: 5.6544 Mpps PoE Ports (RJ45): • Standard: 802.3 af/at compliant · • PoE Ports: Ports 1–8 · • Power Supply: 65 W Mac Address Table: 2K Jumbo Frame: 16 KB Switching Capacity: 7.6 Gbps Dimensions ( W x D x H ): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) Max Power Consumption: • 5.61 W (220 V/50 Hz. no PD connected) · • 77.32 W (110 V/50 Hz. with 65 W PD connected) Max Heat Dissipation: • 19.13 BTU/h (no PD connected) · • 263.7 BTU/h (with 65 W PD connected) |
| SOFTWARE FEATURES | Transmission Method: Store-And-Forward Advanced Functions: • Compatible With IEEE 802.3af/at Compliant PDs · • Extend Mode: Ports 1–4/1–8** · • Isolation Mode: Ports 1–8 · • PoE Auto Recovery: Ports 1–8 · • Mac Address Auto-Learning and Auto-Aging · • IEEE802.3x Flow Control |
