TP-Link
Суич TP-Link Omada DS106GPP
Артикул №: 1000137204
Категория:
Мрежови адаптери
89,99 €
✓ Ограничена наличност

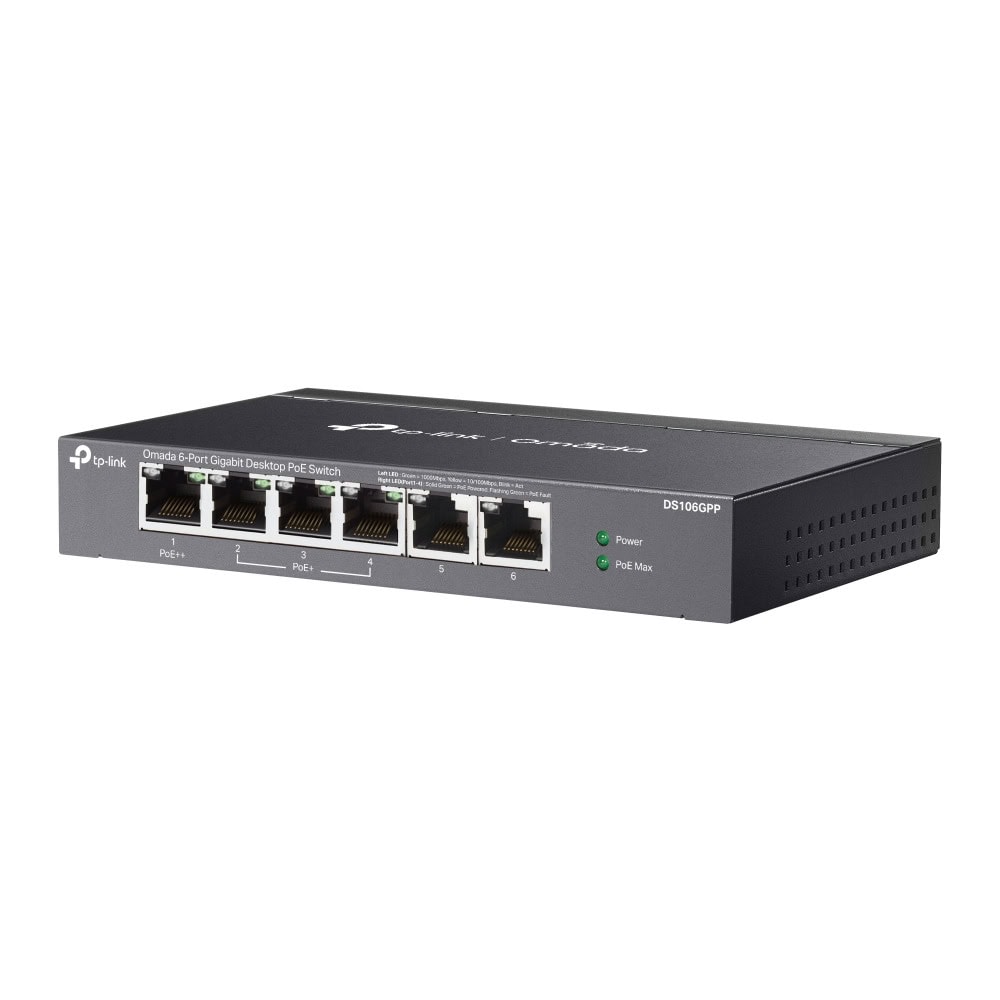

TP-Link Omada DS106GPP
Omada 6-Port Gigabit Unmanaged Desktop Switch with 3-Port PoE+ and 1-Port PoE++
- 6× 10/100/1000 Mbps RJ45 ports
- With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
- Supports PoE Power up to 64 W for all PoE ports
- Up to 250m (820ft) data and power transmitting range under Extend Mode
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required.
Power over Ethernet, Flexible Network Deployment
| HARDWARE FEATURES | Interface: • 6× 10/100/1000Mbps RJ45 Ports · • AUTO Negotiation · • AUTO MDI/MDIX · Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) · • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) · • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) · • EIA/TIA-568 100Ω STP (maximum 100m) · Fan Quantity: Fanless External Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A) Packet Forwarding Rate: 8.928 Mpps PoE Ports (RJ45): • Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at · • Power Supply: 64 W · Mac Address Table: 4K Switching Capacity: 12 Gbps Dimensions ( W x D x H ): 6.2x4.0x1.0 in (158x101x25 mm) Max Power Consumption: • 4.75 W (220/50 Hz. no PD connected) · • 71.46 W (220/50 Hz. with 64 W PD connected) Max Heat Dissipation: • 16.20 BTU/h (220/50 Hz. no PD connected) · • 243.68 BTU/h (220/50 Hz. with 64 W PD connected) |
| SOFTWARE FEATURES | Advanced Features: • Compatible With IEEE 802.3af/at/bt Compliant PDs · • Mac Address Auto-Learning And Auto-Aging · • IEEE 802.3x Flow Control · • 802.1p/DSCP QoS · • IGMP Snooping · • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) · • PoE Auto Recovery (Ports 1-4) · Transfer Method: Store-And-Forward |
