TP-Link
Суич TP-Link ES205GP
Артикул №: 1000137693
Категория:
Мрежови адаптери
61,99 €
✓ Налично във външен склад

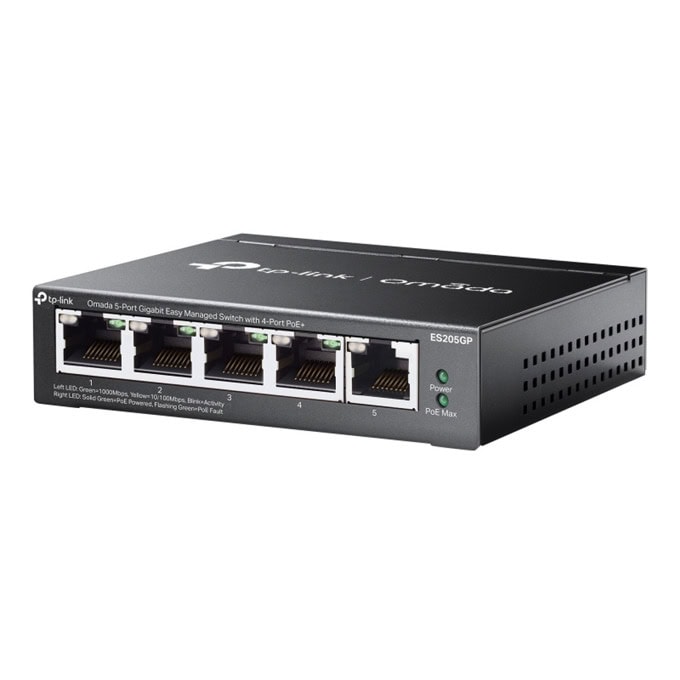

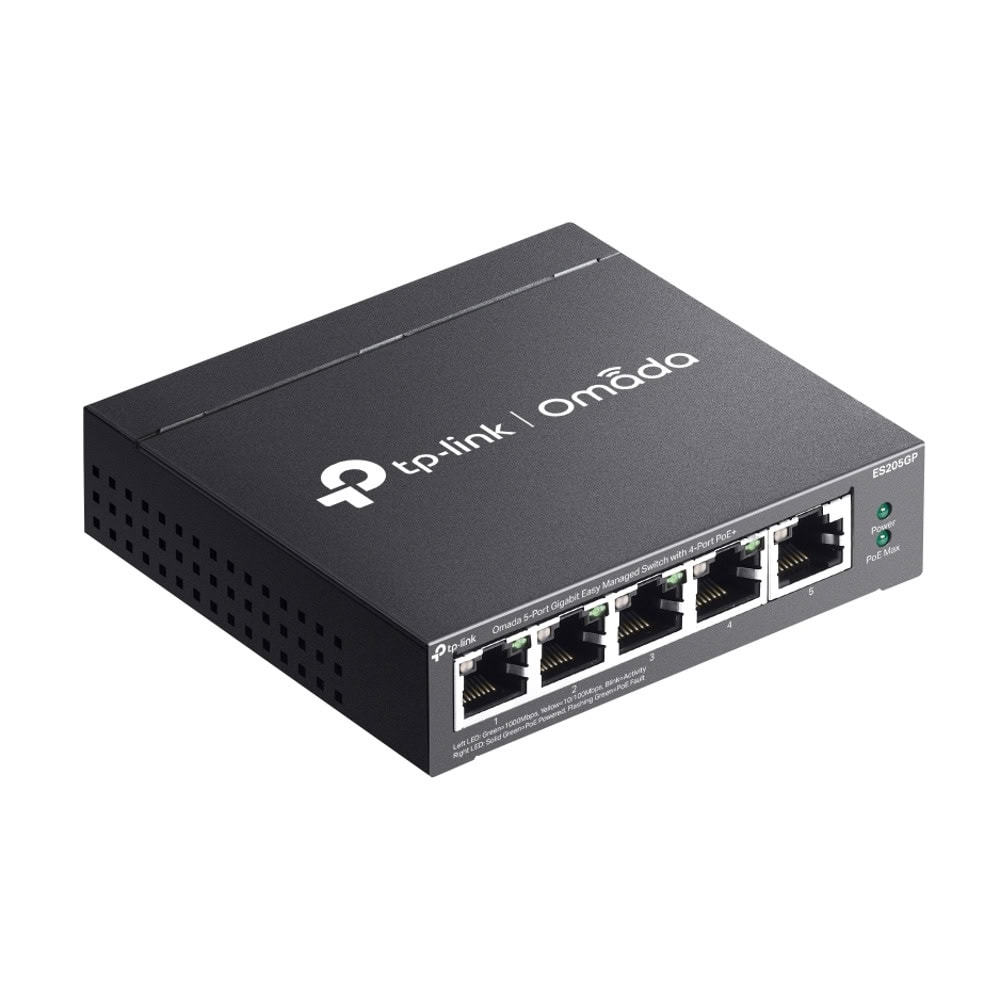

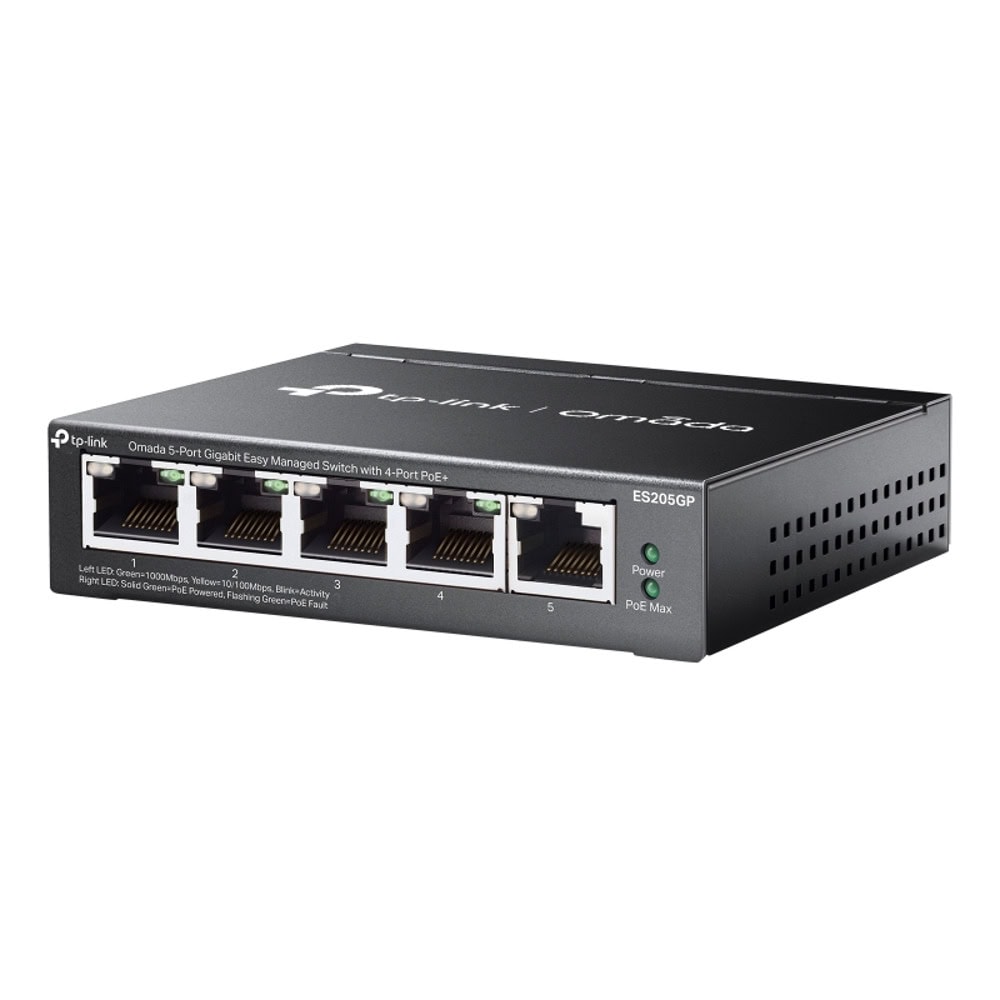

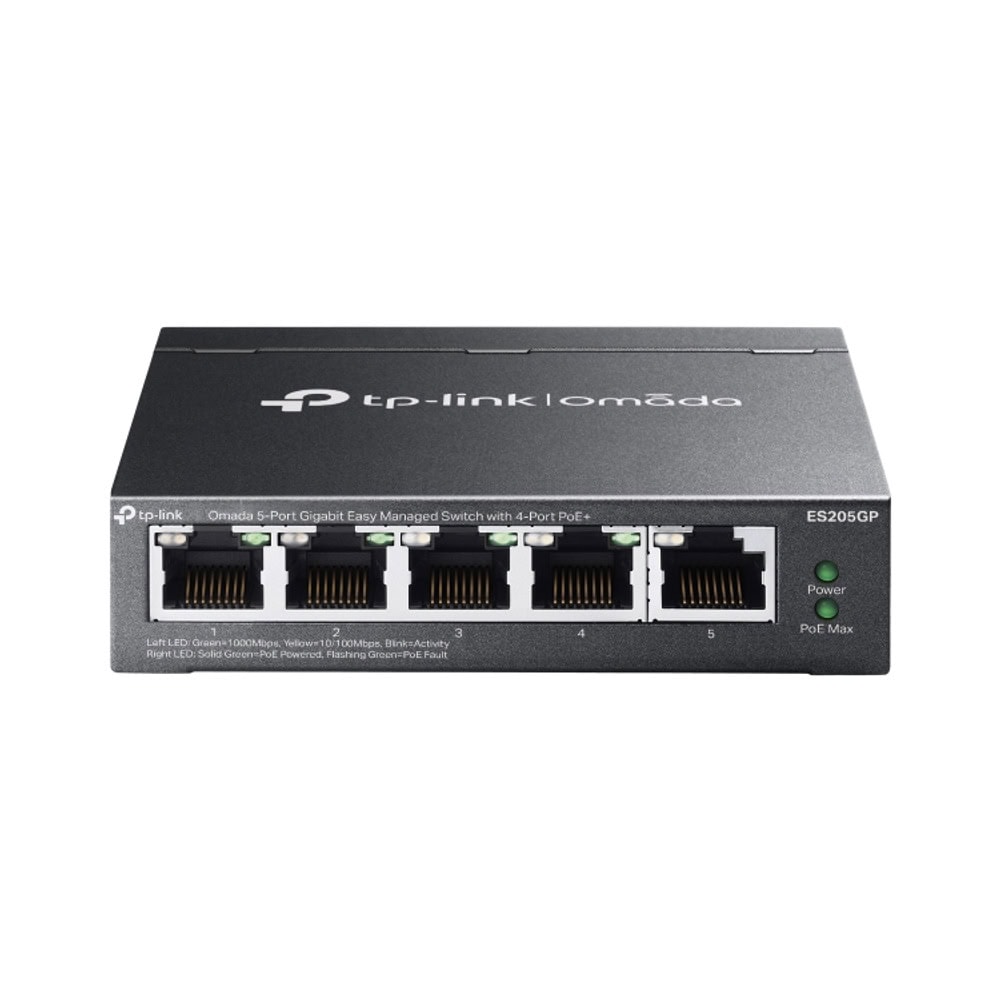

Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
| 5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+) | Да |
| 65W Power Budget, with up to 30W for each PoE port | Да |
| Easy to Use | Supports plug-and-play for instant connectivity and simple configuration for additional features |
| Centralized Cloud Management via the web or the Omada app | Да |
| Automatic Loop Prevention, VLAN, and IGMP Snooping | Да |
| Fanless design for silent operation | Да |
| Durable metal casing and desktop/wall mounting design | Да |

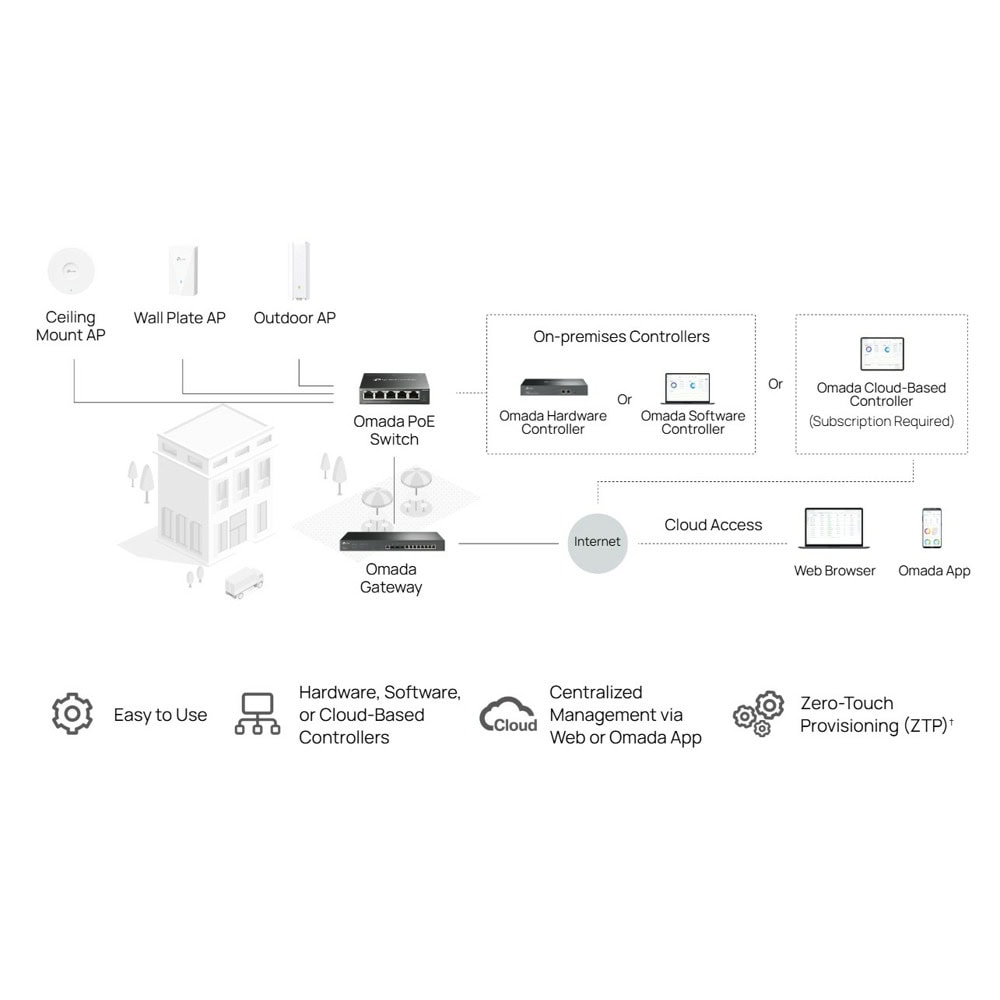

Software Defined Networking (SDN) with Cloud Access

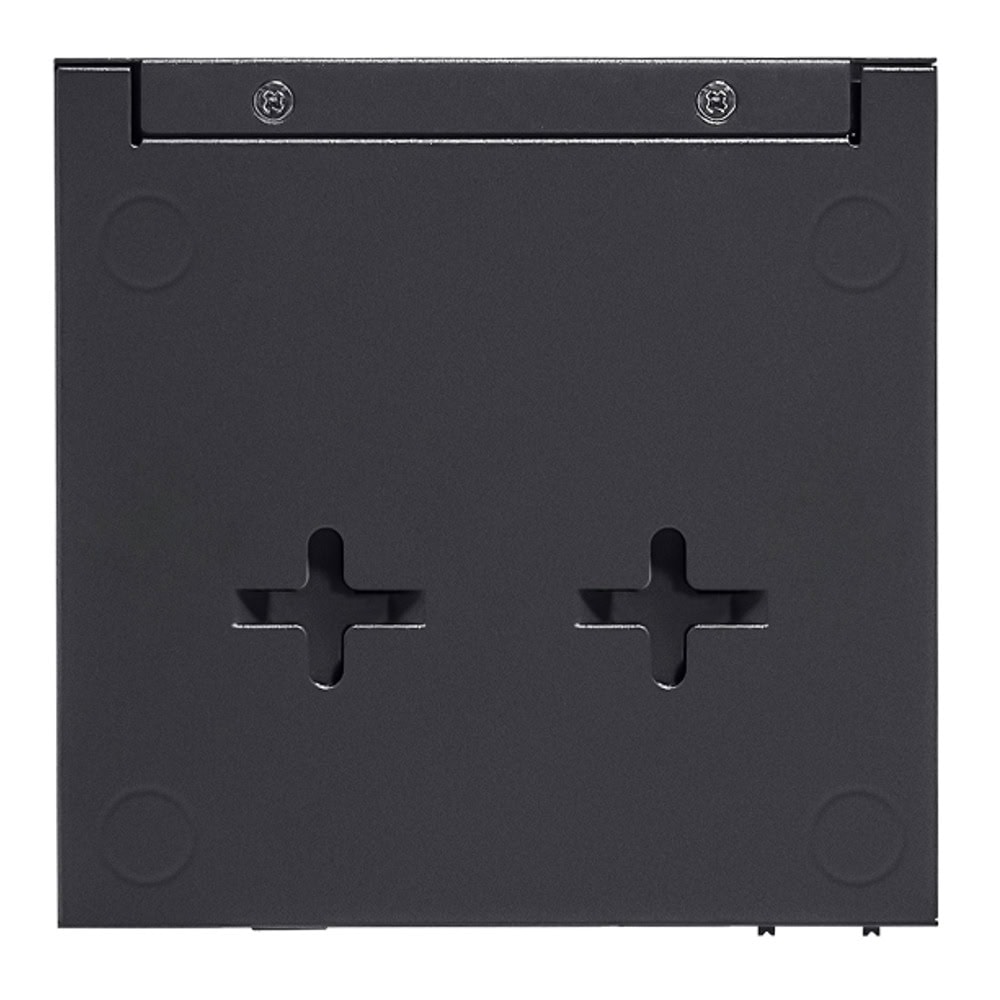

| ХАРДУЕРНИ ХАРАКТЕРИСТИКИ | Интерфейс: • 5× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at PoE+ and 802.3af PoE) · • Auto-Negotiation/Auto MDI/MDIX Брой вентилатори: Fanless Инсталация: • Desktop · • Wall Mount Защита с физическо заключване: Yes Захранване: DC Power Adapter (Output: 53.5 VDC/ 1.31 A) PoE портове (RJ45): • Standard: 802.3af PoE and 802.3at PoE+ compliant · • PoE Ports: 4 ports · • PoE Budget: 65 W available for all PoE+ ports, 30W max per port · • PoE Auto Recovery · • Up to 250m PoE transmission distance Размери (Ш x Д x В ): 3.9×3.9×1.0 in (100×98×25 mm) |
| ПРОИЗВОДИТЕЛНОСТ | Комутационен капацитет: 10 Gbps Скорост на предаване на пакети данни: 7.4 Mpps Таблица на МАС адресите: 8K Packet Buffer Memory: 4 Mbit Jumbo кадър: 15 KB |
| СОФТУЕРНИ ХАРАКТЕРИСТИКИ | Качество на услугата: • Port-based/802.1p/DSCP QoS · • 8 Priority Queues · • Priority Schedule Mode · - WRR (Weighted Round Robin) · • Queue Weight Config · • Bandwidth Control · - Port-Based Rating Limit · • Storm Control · - Multiple Control Modes (kbps/pps) · - Broadcast/Multicast/Unknown-Unicast Control△ L2 характеристики: • Static Link Aggregation · • Loop Prevention / Loopback Detection · • Flow Control · - 802.3x Flow Control · • Mirroring · - Port Mirroring · - One-to-One · - Many-to-One · - Ingress/Egress/Both · • Port Statistics · - Port Mirror Status · - Traffic Statistics · • 802.1ab LLDP L2 Multicast: • IGMP Snooping · - IGMP v1/v2/v3 Snooping · - Fast Leave VLAN: • MTU VLAN · • Port-Based VLAN · • 802.1Q Tag VLAN · - Max 32 VLAN Groups · - 4K VID Transmission Method: Store-And-Forward |
| MANAGEMENT | Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management: • Omada Cloud-Based Controller · • Omada Hardware Controller · • Omada Software Controller Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller Management Features: • Web-based GUI · • DHCP Client · • Cable Diagnostics · • Automatic Device Discovery · • Batch Configuration · • Batch Firmware Upgrading · • Unified Configuration |
