TP-Link DS105X
- Five 10 Gbps Ports. 5× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 100 Gbps of switching capacity.
- Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.
- Ideal for Various Scenarios. Built for lightning-fast connections in LAN parties, home entertainment, small and home offices, and workstations.
- Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance.
- Silent Operation. The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business.

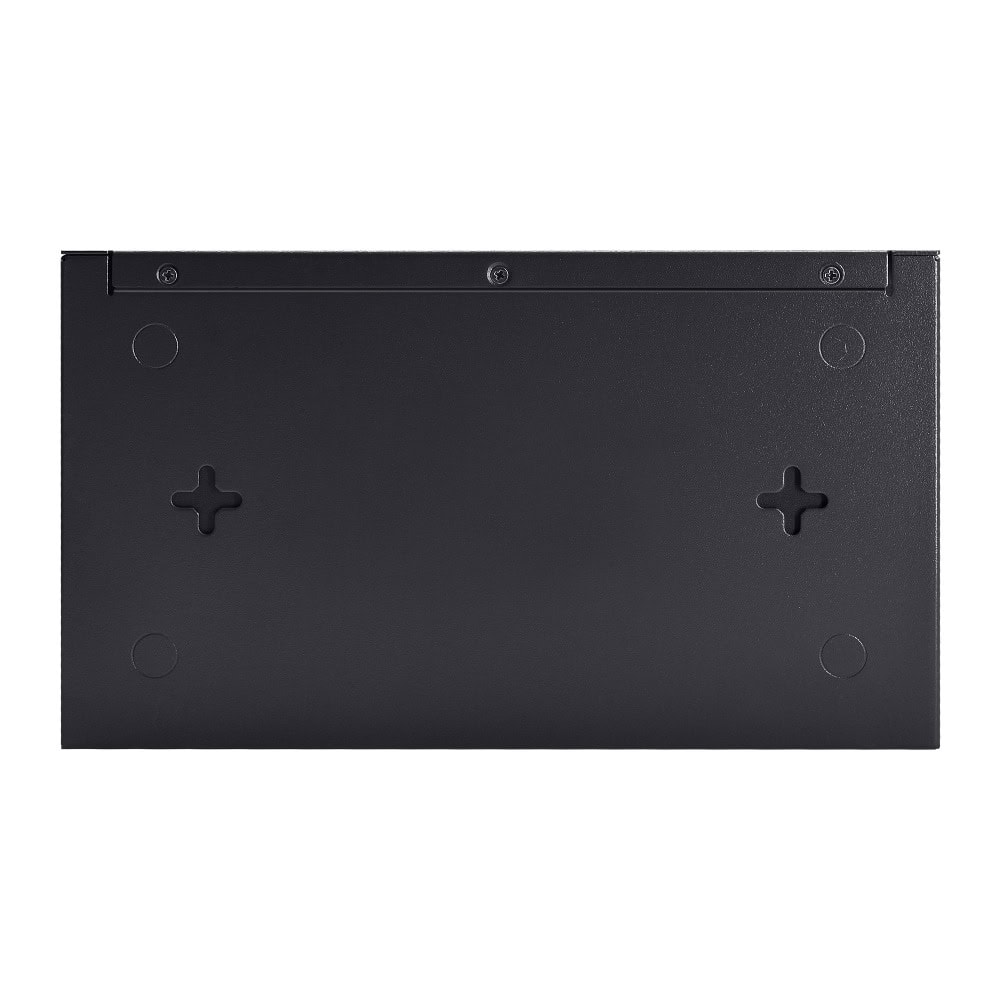

- Durable Metal Casing. Durable metal casing, desktop/wall-mounting, and professional heat dissipation design are well suited for different environments.
- Plug and Play. No configuration or central management required.*
HARDWARE FEATURES
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
| Интерфейс | • 5× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports · • Auto-Negotiation · • Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 12 VDC / 2.0 A) |
| LED | • System Power: 1 · • Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port |

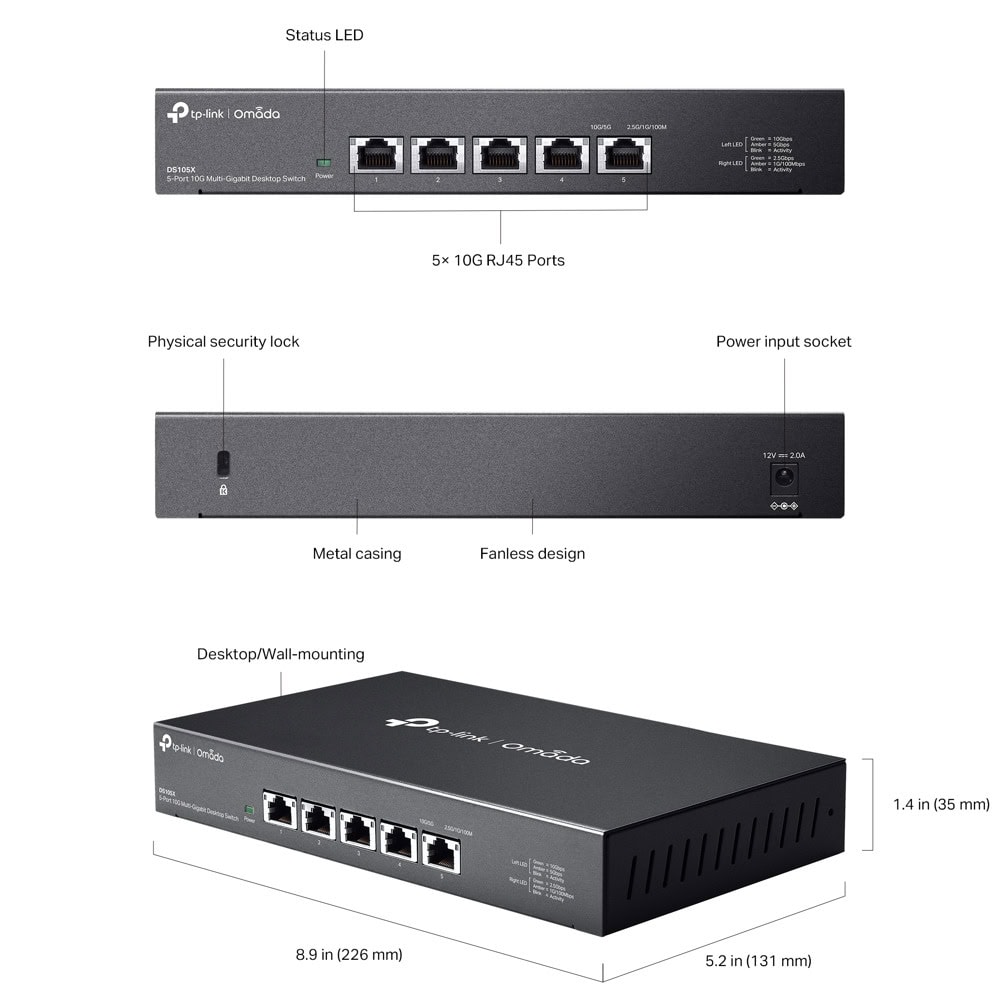

| Dimensions ( W x D x H ) | 8.9×5.2×1.4 in (226×131×35 mm) |
| Max. Power Consumption | 21.4 W |
PERFORMANCE
| Switching Capacity | 100 Gbps |
| Packet Forwarding Rate | 74.4 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 2 Mb |
| Jumbo Frame | 10 KB |
SOFTWARE FEATURES
| Advanced Features | • 802.3X Flow Control · • 802.1p/DSCP QoS |
| Transmission Method | Store and Forward |
