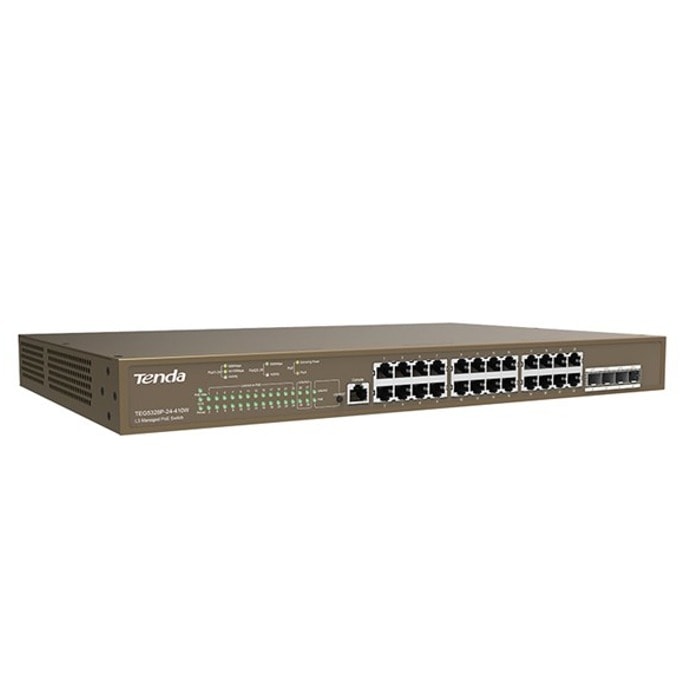

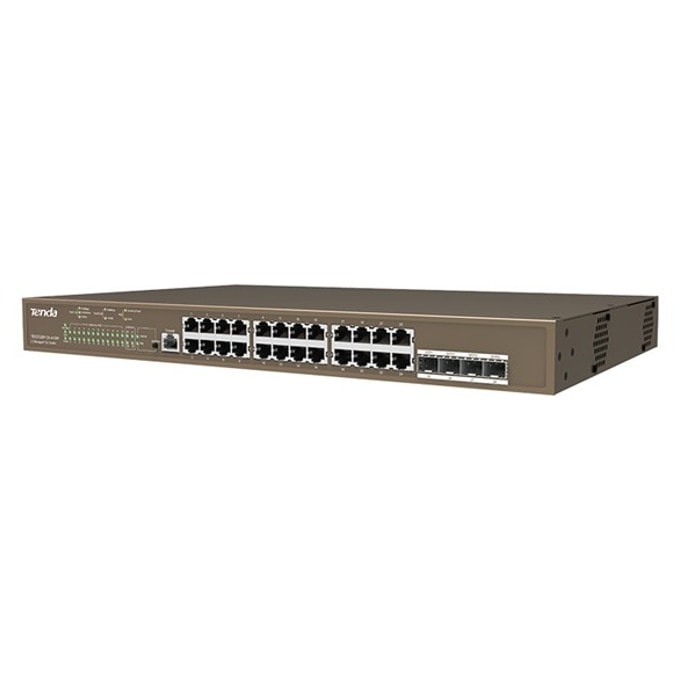

Суич Tenda TEG5328P-24-410W

Model

TEG5328P-24-410W

Network standard

IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3z、 IEEE802.3x、 IEEE802.3af/at、 IEEE802.1p、IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1s

LED indicator

One Link/Act or PoE LED indicator for each port

One Link/One Link/Act mode converting LED indicator for each device

One PoE mode converting LED indicator for each device

One PoE Max LED indicator for each device

One Power LED indicator for each device

One SYS LED indicator for each device

Interface

24 x 10/100/1000 Base-T Ethernet ports

4 x 1000 Base-X SFP ports

1 x Console port

Fan Quantity

2

Level of protection

Lightning protection for ports: ≥6kV (common mode)

Lightning protection for power: ≥6kV (common mode), ≥4kV (differential mode)

ESD:

Air discharge: ±8kV

Contact discharge: ±6kV

Forwarding Mode

Store-and-forward

Switching Capacity

56Gbps

Packet Forwarding Rate

41.7Mpps

Buffer

12Mb

MAC Address Table

16K

Jumbo Frame

10K

PoE power supply

Support

PoE budget

Single port: AF: 15.4W, AT: 30W

Whole device: 370W

Input Voltage

100-240V AC 50/60Hz

Power Consumption

Full load: ＜432W

Empty load: ＜23W

Dimension

440 mm x 284 mm x 44 mm(L*W*H)

Mounting options

Desktop mounting

Rack mounting (19" 1U)

Wall mounting

Energy Efficient

Support

Environment

Operating temperature: 0°C - 45℃

Storage temperature: -40°C - 70°C

Operating humidity: (10% - 90%)RH, non-condensing

Storage humidity: (5% - 90%)RH, non-condensing

Certification

CCC、FCC、CE、RoHS

L3 Features

Supports VLAN-based routing

Supports IPv4 static routing

Supports static ARP

PoE Supply

Supports port PoE configuration and power supply with priority

Supports PoE over-temperature protection

Supports PoE scheduled management

Supports intelligent management and PoE-powered device detection

(port status, power assignment and PoE-powered device status)
