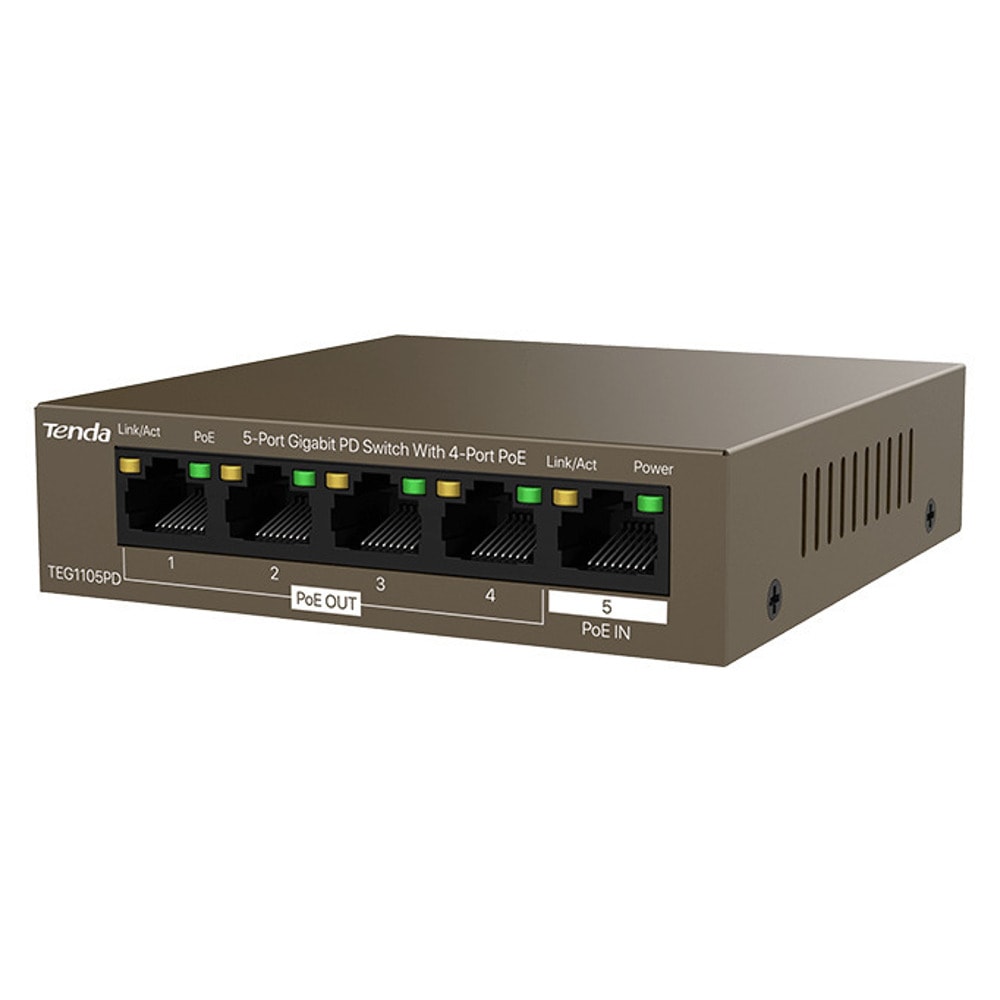

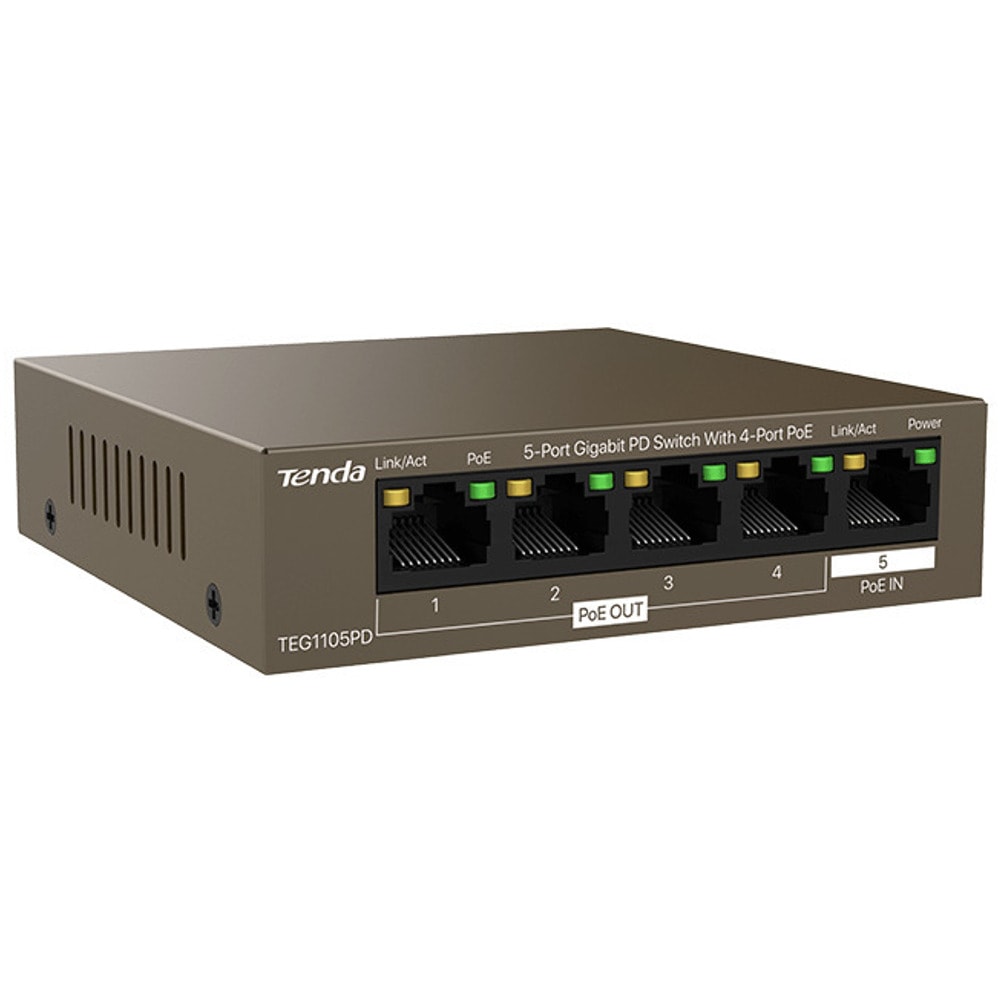

Суич Tenda TEG1105PD
TEG1105PD
5-Port Gigabit PD Switch With 4-Port PoE
Featuring low cost, high performance and plug & play, the PoE switch TEG1105PD is both a PSE and a PD, designed for such surveillance networking scenarios as roads in parks/communities, medium to large factories, and colleges. Small and delicate, it can be installed in an outdoor waterproof box easily. The switch provides four 10/100/1000 Mbps PoE OUT ports (ports 1 to 4) compliant with IEEE 802.3af and one 10/100/1000 Mbps PoE IN port (port 5) compliant with IEEE 802.3af/at. The maximum PoE output power of the whole switch is 30 W. The switch can supply power and transmit data to low-power APs and IP cameras through CAT5 cables, greatly reducing the cost of the network deployment. It is an ideal choice for wired networking in monitoring scenarios of middle to long distance.
Характеристики
| Network standards | Да |
| LED Indicator | Да |
| 1* Power LED indicator | Да |
| 4* PoE LED | Да |
| indicators | Да |
| 5* Link/Act LED indicators | Да |
| Interfaces | Да |
| 4*10/100/1000 Base-T Ethernet Ports(Data/PoE | Да |
| UT) | Да |
| 1*10/100/1000 Base-T Ethernet Port(Data/PoE IN) | Да |
| Transmission media | Да |
| Recommended | CAT5/5e UTP or better |
| Fan quantity | Да |
| N/A | Да |
| Размер | Да |
| Mm x 100.0 mm x 26.0 mm | 100.0 |
| Level of protection | Да |
| Lightning protection for ports | 6kV |
| Lightning protection for power | 6kV |
| ESD | Air discharge: ±10kV Contact discharge: ±8kV Forwarding mode Store-and-forward Switch capacity 10 Gbps Packet forwarding rate 7.44Mpps Buffer 1 Mb MAC address table 2K Jombo frame 9K PoE budget Single port: AF: 15.4W Power consumption / Input voltage 50-57V DC, 0.6A Mounting Desktop mounting: support Wall mounting: non-support Rack mounting : non-support Environment Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Certification FCC、CE、RoHS |
