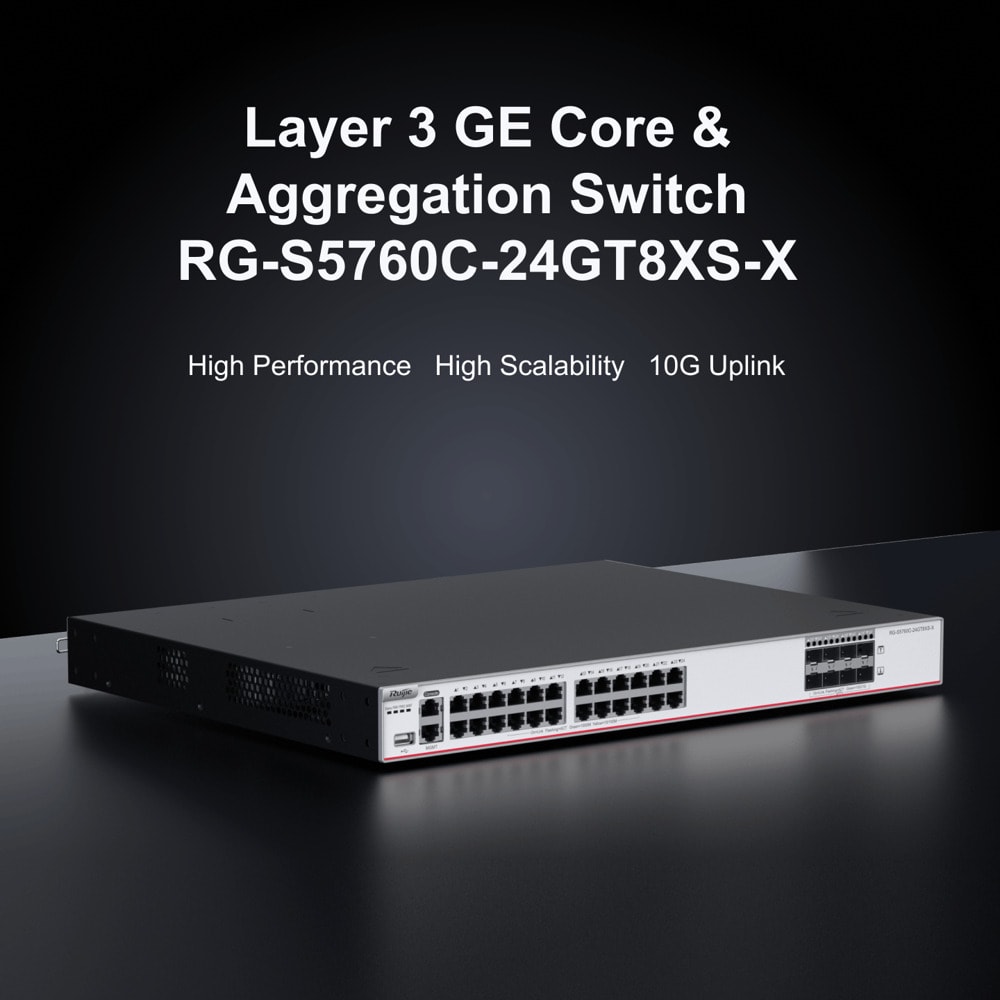

Суич Ruijie RG-S5760C-24GT8XS-X
Ruijie RG-S5760C-24GT8XS-X
Hardware Specifications
Interface Specifications
Fixed port 24 x 10/100/1000 Mbps electrical ports with auto-negotiation, 8 x 1GE/10GE SFP+ ports, 2 x power supply module slots
Fan module Two built-in fan modules Fan speed regulating and fault alarms
Power module Two power modules The switch can be powered on by either one or dual power modules. If both power modules are used, the switch works in the power redundancy mode.
Management port One MGMT port, one console port, and one USB port, compliance with the USB2.0 standard
Expansion slot Two expansion slots are reserved for expansion modules and supervisor modules. One expansion slot is reserved on the RG-S5760C-48GT4XS-HP-X and RG-S5760C-48SFP4XS-X.
System Specifications
Packet forwarding rate 426Mpps/660Mpps
Switching capacity 7.92Tbps
Number of MAC addresses 128,000
ARP table size 24,000
Number of IPv4 unicast routes 24,000
Number of IPv4 multicast routes 4,000 mmu-enhance: 3,000
Number of IPv6 unicast routes 14,000
Number of IPv6 multicast routes 2,000 mmu-enhance: 1,500
Number of ACEs In: 7,000 Out:1,500
Number of IGMP groups 4,000
Характеристики
| Number of MLD groups 1,000 | Number of VSU members 4 |
| Dimensions and Weight | Dimensions (W x D x H) 440 mm x 340 mm x 44 mm |
| Weight 4.4 kg | CPU and Storage |
| CPU 1.2 GHz dual-core CPU | Storage Flash memory: 4 GB SDRAM: 1 GB |
| Data packet buffer 1.2MB | Power and Consumption |
