Суич MikroTik CRS418-8P-8G-2S+5axQ2axQ-RM
CRS418-8P-8G-2S+5axQ2axQ-RM

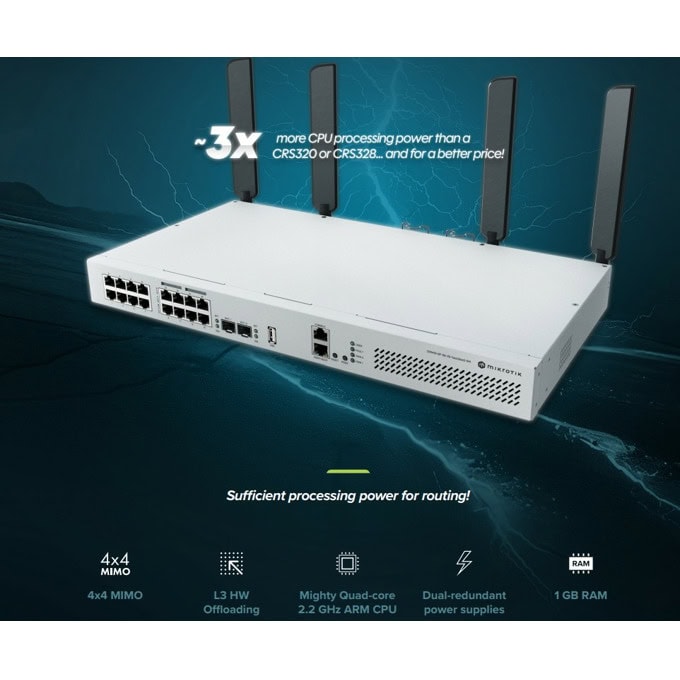

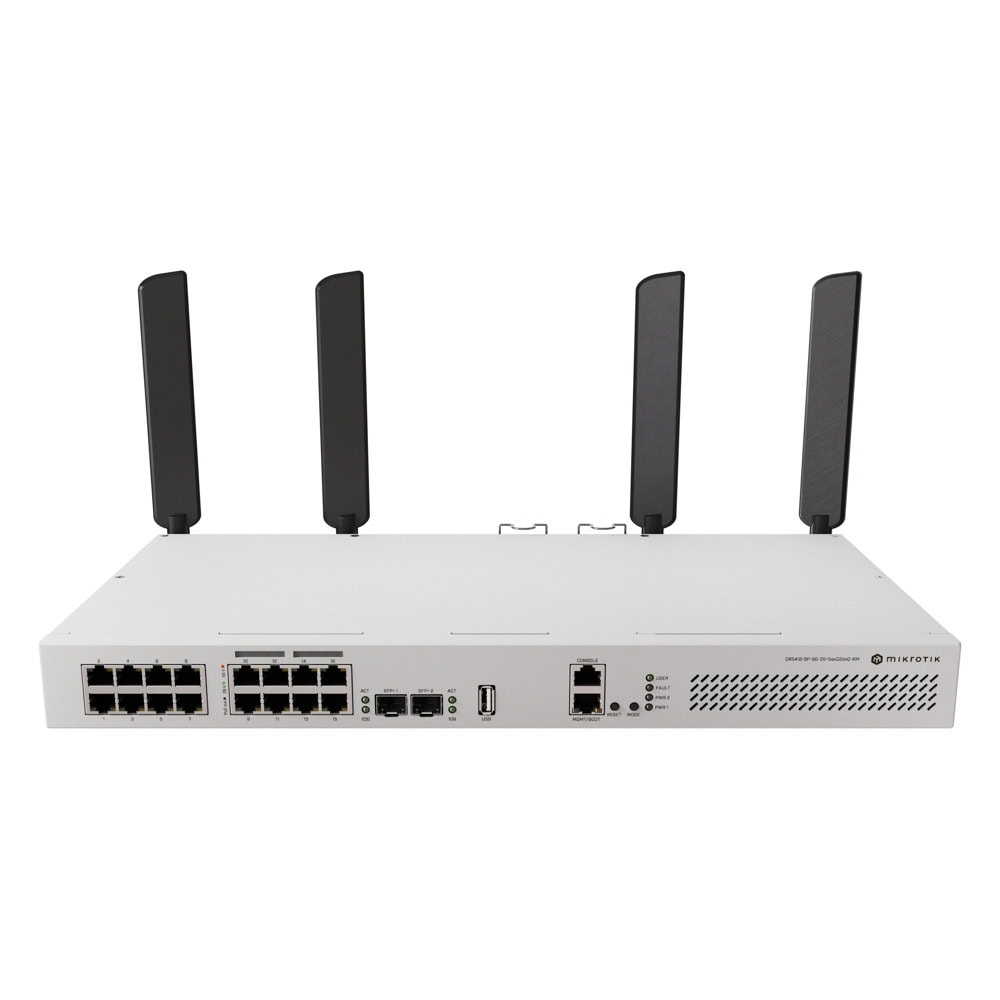

The Wi-Fi version of CRS418... with our strongest 4x4 MIMO Wi-Fi 6! L3 HW offloading, quad-core 2.2 GHz ARM CPU, 16x Gigabit Ethernet ports + a Gigabit management port with a direct CPU line, 2x 10G SFP+ ports, PoE-out.
More than a switch!
Why settle for just a simple switch when you can have PoE-out, high-speed fiber uplinks, USB storage compatibility, advanced network control/monitoring, and enough processing power even for some routing or L3 HW offloading... in a single 1U device and for the best price on the market?
Wi-Fi where it matters
The all-in-one switch/routing champion also delivers 4×4 MIMO dual-band Wi-Fi 6 – for fast, reliable connectivity wherever you need it. The perfect solution to simplify basement server room setups or medium-sized offices on a tight budget – now you don’t need to carry a separate access point!

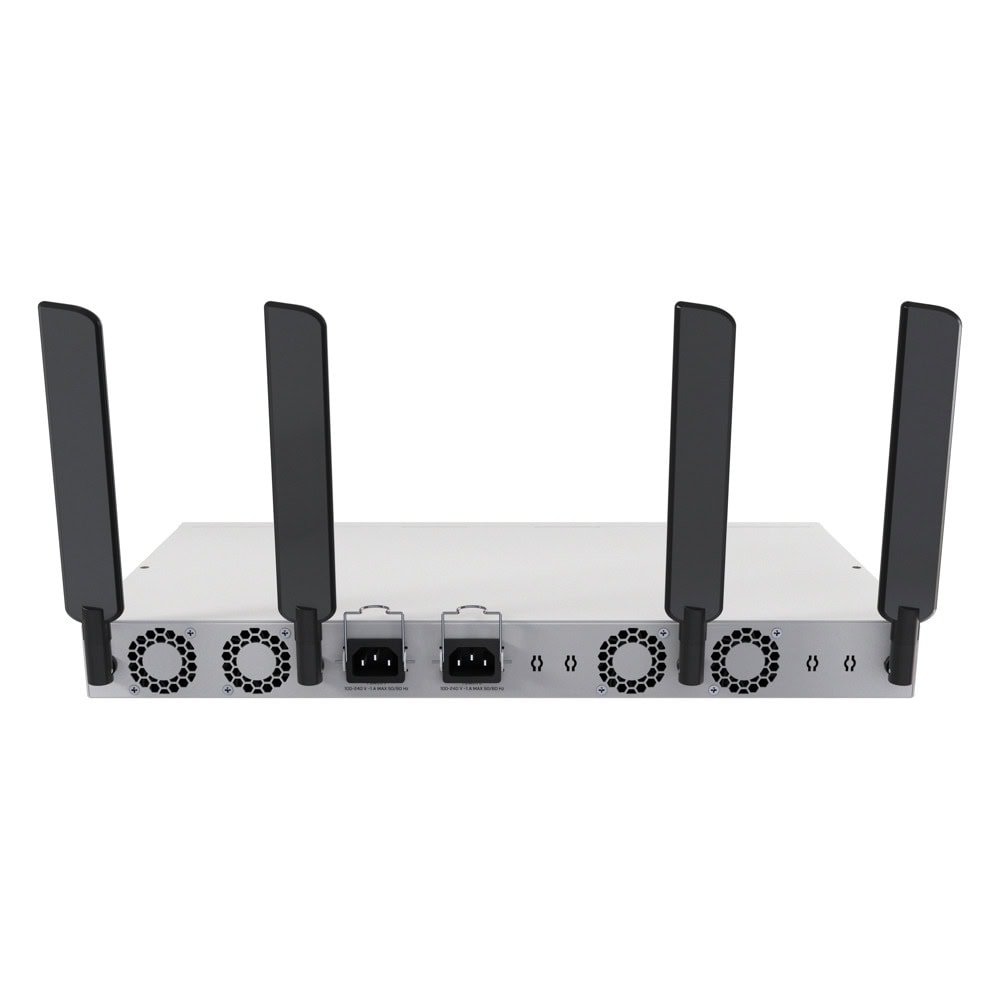

We know rackmounts are not famous for great wireless coverage. That’s why the CRS418 Wi-Fi edition includes dedicated holes in the back for pigtails, so you can place antennas outside the case if needed.
Характеристики
| Architecture ARM | 64bit |
| CPU IPQ-8072A | Да |
| CPU core count | 4 |
| CPU nominal frequency | 2208 MHz |
| CPU Threads count | 4 |
| Switch chip model | 98DX226S |
| RouterOS license | 5 |
| Operating System RouterOS v7 | Да |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type NAND | Да |
| MTBF Approximately | 200'000 hours at 25C |
| Tested ambient temperature -20°C to | 70°C |
| Powering | Да |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of PSU slots | 2 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 227 W |
| Max power consumption without attachments | 43 W |
| Cooling type | 4 fans |
| PoE-out | Да |
| PoE-out ports Ether9-Ether16 | Да |
| PoE out | 802.3af/at |
| Low voltage PoE-Out current limit | 1.1 A |
| High voltage PoE-Out current limit | 0.56 A |
| Total output power | 150 |
| Wireless specifications | Да |
| Безжична | 2.4 GHz Max data rate 1148 Mbit/s |
| Безжична | 2.4 GHz Number of chains 4 |
| Безжична | 2.4 GHz standards 802.11b/g/n/ax |
| Antenna gain dBi for | 2.4 GHz 5 |
| Безжична | 2.4 GHz chip model QCN-5024 |
| Безжична | 2.4 GHz generation Wi-Fi 6 |
| Безжична | 5 GHz Max data rate 2400 Mbit/s |
| Безжична | 5 GHz Number of chains 4 |
| Безжична | 5 GHz standards 802.11a/n/ac/ax |
| Antenna gain dBi for | 5 GHz 6 |
| Безжична | 5 GHz chip model QCN-5054 |
| Безжична | 5 GHz generation Wi-Fi 6 |
| Ethernet | Да |
| 10/100/1000 Ethernet ports 17 | Да |
| Number of | 1G Ethernet ports with PoE-out 8 |
| Fiber | Да |
| SFP+ ports | 2 |
| Peripherals | Да |
| Serial console port RJ45 | Да |
| Number of USB ports | 1 |
| USB Power Reset | Да |
| USB slot type USB | 3.0 type A |
| Max USB current (A) | 1 |
| Other | Да |
| CPU temperature monitor | Да |
| Current Monitor | Да |
| PCB temperature monitor | Да |
| Voltage Monitor | Да |
| Mode button | Да |
| Certification & Approvals | Да |
| Certification CE, FCC, IC, EAC, ROHS | Да |
| IP 20 | Да |
