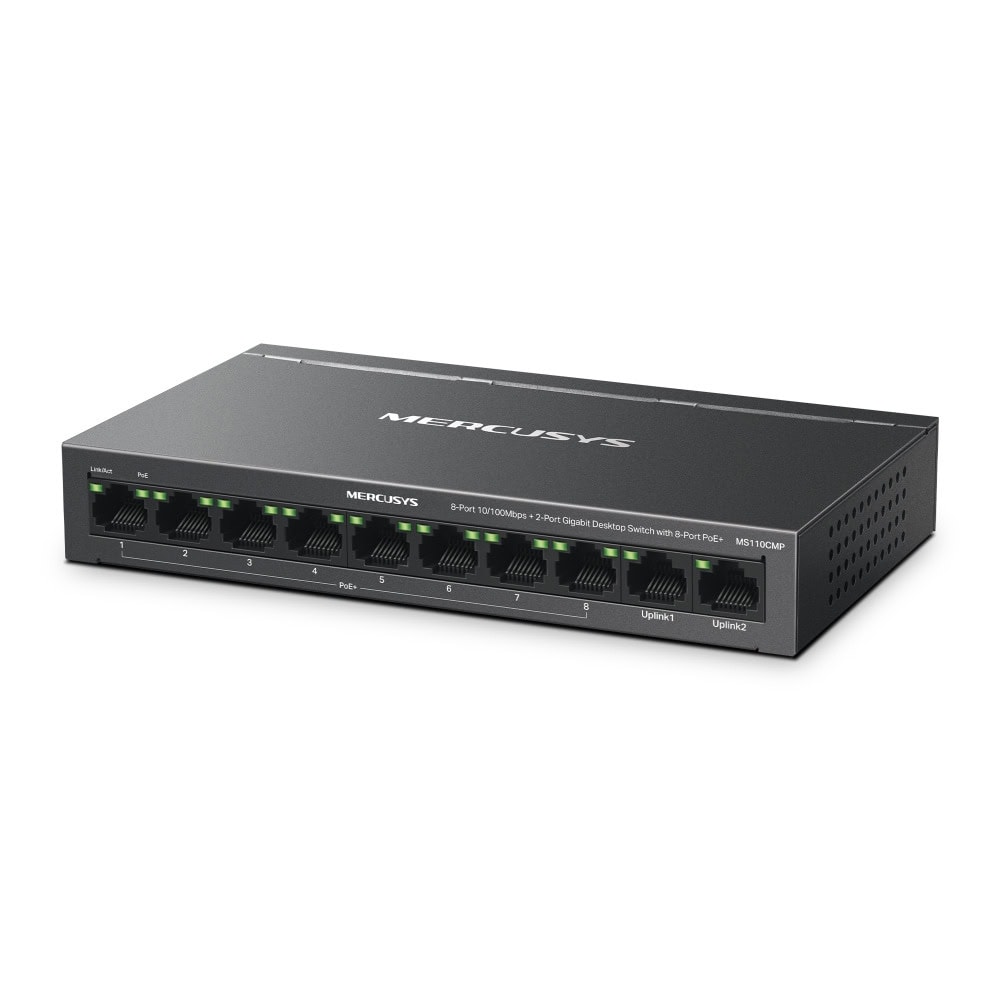

Суич Mercusys MS110CMP
Артикул №: 1000040783
Категория:
Суич
43,99 €
✓ Ограничена наличност
- Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 115 W for all PoE ports
- 2× Uplink Ports: MS110CMP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
- Isolation Mode: One click to divide traffic for specific ports for stability and security
Характеристики
| 10 Ports | 8× 10/100 Mbps PoE+ Ports + 2× Gigabit non-PoE Ports |
| Two Cables in One | With 8 PoE+ ports, transfers data and power on one single cable |
| High Power PoE+ | Support PoE Power up to 30 W for each PoE port and 115 W for all PoE ports * |
| 2× Uplink Ports | MS110CMP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR. |
| Long-Range up to 250 m | Increases PoE transmission distance to 250 m by Extend Mode** |
| Isolation Mode | One click to divide traffic for specific ports for stability and security |
| Compliant with Powered Devices | Works with IEEE 802.3af/at compliant PDs |
| Plug and Play | Simple to use and saves time and effort |
| PoE Auto Recovery | Automatically reboots your dropped or unresponsive PoE-powered devices |
| Durable Metal Casing | Allows for efficient heat dissipation and long network life |
| Category | Hardware Standards & ProtocolsIEEE 802.3x Flow Control PoE Ports Connector TypeRJ45 StandardCompliant with IEEE 802.3 af/at Powered Devices PoE PortsPort 1 – Port 8 PoE Power Budget115 W Dimensions6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) Interfaces8× 10/100 Mbps Ports + 2× Gigabit Ports, Auto-Negotiation, Auto MDI/MDIX External Power SupplyExternal Power Adapter (Output: 54V/2.2A) InstallationDesktop / Wall Mount Data Rates10/100 Mbps at Half Duplex; 20/200 Mbps at Full Duplex Jumbo Frame2 KB Switching Capacity5.6 Gbps MAC Address Table2K Max Power Consumption3.79 W (220 V / 50 Hz, no PD connected); 130.49 W (220 V / 50 Hz, with 115W PD connected) Max Heat Dissipation12.92 BTU/h (no PD connected); 444.97 BTU/h (with 115W PD connected) EnvironmentOperating Temperature: -10℃~40℃ (14℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% RH non-condensingStorage Humidity: 5%~95% RH non-condensing |
