Dahua

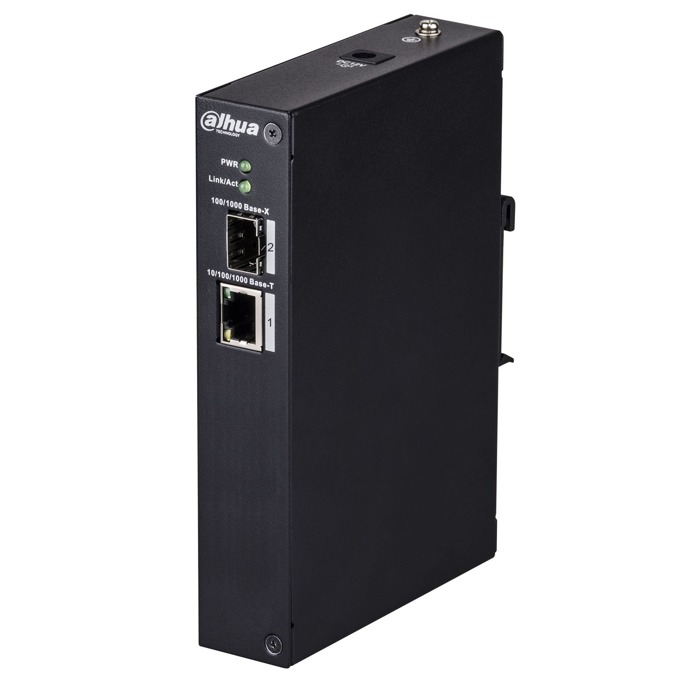

Суич Dahua PFS3102-1T
Артикул №: 1000009112
Категория:
Суич
35,99 €
✓ Налично във външен склад
2-layer industrial level Ethernet media converter
Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
100M/1000M self-adaptive SFP fiber port
Industrial wide temperature design
Technical Specification:
Model- DH-PFS3102-1T
Ethernet Port:
1*100/1000 Base-X
1*10/100/1000 Base-T
Switching Capacity- 6.8G
Packet Forwarding Rate- 2.98Mpps
Packet Buffer Memory- 1Mb
MAC Table Size- 8K
Exchange Mode- Store & forward
Application Humidity- 10%~90%
Power- DC 12V
Power Consumption- ≤3W
Lightning Protection:
Common Mode 4KV
Differential Mode- 2KV
Working Temperature- -40°C~70°C
Weight- 420g
Dimension(W×D×H)- 150mm×100mm×30mm
Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
100M/1000M self-adaptive SFP fiber port
Industrial wide temperature design
Technical Specification:
Model- DH-PFS3102-1T
Ethernet Port:
1*100/1000 Base-X
1*10/100/1000 Base-T
Switching Capacity- 6.8G
Packet Forwarding Rate- 2.98Mpps
Packet Buffer Memory- 1Mb
MAC Table Size- 8K
Exchange Mode- Store & forward
Application Humidity- 10%~90%
Power- DC 12V
Power Consumption- ≤3W
Lightning Protection:
Common Mode 4KV
Differential Mode- 2KV
Working Temperature- -40°C~70°C
Weight- 420g
Dimension(W×D×H)- 150mm×100mm×30mm
Технически характеристики
| Брой портове | 1 |
| Максимална скорост | 1 Gbit/s |
| Стандарт | IEEE 802.3u |
| Управляем | Не |
