Dahua
Суич Dahua LR2218-16ET-240
Артикул №: 1000001288
Категория:
Суич
361,99 €
✓ Налично във външен склад

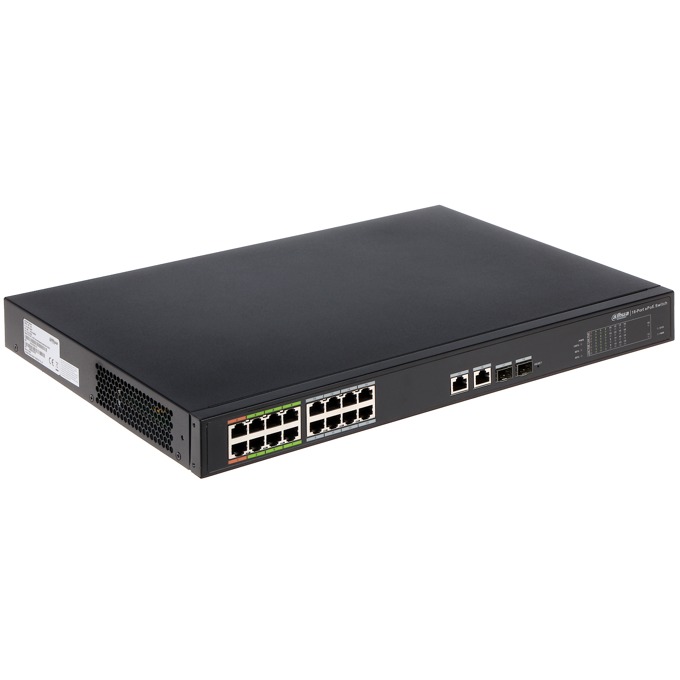

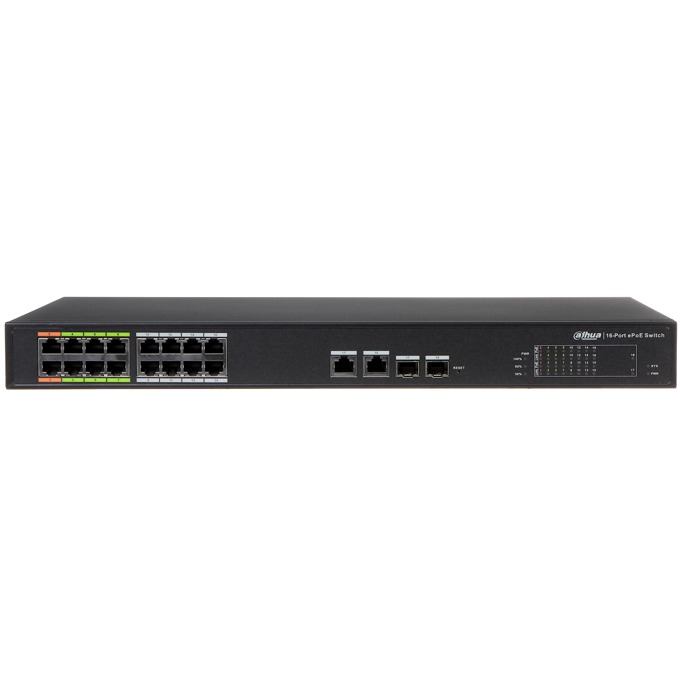

DH-LR2218-16ET-240 is a 16-Port web managed ePoE switch, which is able to realize PoE transmission over 800 meters Ethernet cable at the speed of 10Mbps, or 300 meters at the speed of 100Mbps. Besides,it supports PoE and PoC power supply technology, which has greatly
simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.
Features
· Supports long distance PoE transmission up to 800m with
ePoE technology of Dahua
· Layer-two web managed ePoE switch
· Port 1-8 support three self-adaptive transmission modes
which are IEEE, E100 and E10
· Port 1-8 support both twisted-pair transmission and coaxial
cable transmission
· Support web management: port management, 802.1Q
VLAN, STP/RSTP, LACP, 802.1X, QoS
· Support PoE management, Green PoE, Legacy Support
· Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and
IEEE802.3X standards
Technical Specification
Model DH-LR2218-16ET-240
Ethernet Port
16*10/100 Base-T (PoE power supply)
simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.
Features
· Supports long distance PoE transmission up to 800m with
ePoE technology of Dahua
· Layer-two web managed ePoE switch
· Port 1-8 support three self-adaptive transmission modes
which are IEEE, E100 and E10
· Port 1-8 support both twisted-pair transmission and coaxial
cable transmission
· Support web management: port management, 802.1Q
VLAN, STP/RSTP, LACP, 802.1X, QoS
· Support PoE management, Green PoE, Legacy Support
· Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and
IEEE802.3X standards
Technical Specification
Model DH-LR2218-16ET-240
Ethernet Port
16*10/100 Base-T (PoE power supply)
Характеристики
| PoE Power Consumption Port1 and port | 2 support Hi-PoE 60W |
| Switching Capacity | 8.8Gbps |
| Packet Forwarding Rate | 5.36Mpps |
| Packet Buffer Memory | 2.75Mb |
| Application Humidity | 10%~90% |
| Power AC100-240V, | 50/60Hz |
| Lightning Protection Common Mode | 4KV |
| Differential Mode | 2KV |
| Тегло | 3.12kg |
| Dimension(W×D×H) | 440mm x300mm x44mm |
