Dahua
Суич Dahua LR2110-8ET-120
Артикул №: 1000000242
Категория:
Суич
279,99 €
✓ Налично във външен склад
LR2110-8ET-120

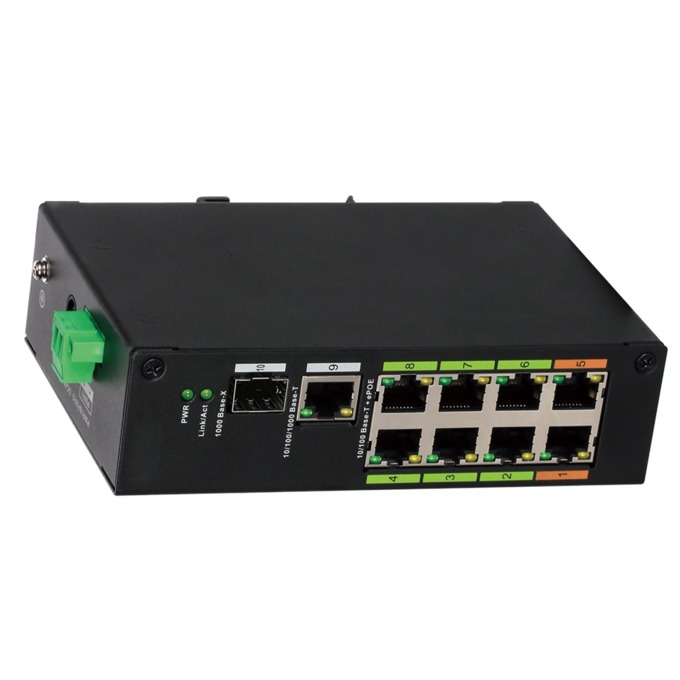

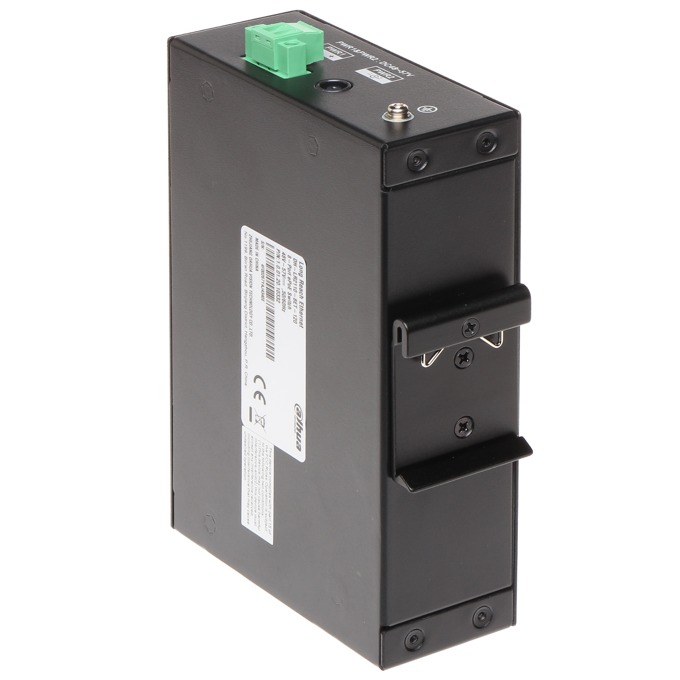

8-Port ePoE Switch
> Supports long distance PoE transmission up to 800m with ePoE technology of Dahua
> Layer-two ePoE switch
> MAC auto study and aging, MAC address list capacity is 8K
> Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
> Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
> Industrial wide temperature design
> Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10
Product Selector
Use one of the options below to locate your desired product.
Technical Specification
Model
DH-LR2110-8ET-120
Ethernet Port
1*1000 Base-X
1*10/100/1000 Base-T
8*10/100 Base-T(PoE power supply)
PoE Power Consumption
Port1,5≤60W, Port2,3,4,6,7,8≤30W, Total≤120W
PoE Protocol
IEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity
8.8Gbps
Packet Forwarding Rate
4.17Mpps
Packet Buffer Memory
2.75Mb
MAC Table Size
8K
Flow Control
Enable by default
Application Humidity
10%~90%
Power
DC48~57V power adapter
Lightning Protection
Common Mode 4KV
Differential Mode 2KV
Working Temperature
﹣30°C~65°C
Weight
0.59kg
Dimension(W×D×H)
150mm×100mm×42mm
8-Port ePoE Switch
> Supports long distance PoE transmission up to 800m with ePoE technology of Dahua
> Layer-two ePoE switch
> MAC auto study and aging, MAC address list capacity is 8K
> Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
> Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
> Industrial wide temperature design
> Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10
Product Selector
Use one of the options below to locate your desired product.
Technical Specification
Model
DH-LR2110-8ET-120
Ethernet Port
1*1000 Base-X
1*10/100/1000 Base-T
8*10/100 Base-T(PoE power supply)
PoE Power Consumption
Port1,5≤60W, Port2,3,4,6,7,8≤30W, Total≤120W
PoE Protocol
IEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity
8.8Gbps
Packet Forwarding Rate
4.17Mpps
Packet Buffer Memory
2.75Mb
MAC Table Size
8K
Flow Control
Enable by default
Application Humidity
10%~90%
Power
DC48~57V power adapter
Lightning Protection
Common Mode 4KV
Differential Mode 2KV
Working Temperature
﹣30°C~65°C
Weight
0.59kg
Dimension(W×D×H)
150mm×100mm×42mm
Технически характеристики
| Брой портове | 8 |
| Максимална скорост | <1 Gbit/s |
| Стандарт | 802.3af |
| Управляем | Да |
