General
Interfaces
5 x 10/100/1000BASE-T ports
Standards
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x flow control
IEEE 802.1p QoS
ANSI/IEEE 802.3 NWay auto-negotiation
Media Interface Exchange
Auto MDI/MDI-X adjustment on all ports
Performance
Switching Fabric
10 Gbps
Transmission Method
Store-and-forward
Data Transfer Rates
Gigabit Ethernet
Interfaces
5 x 10/100/1000BASE-T ports
Standards
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x flow control
IEEE 802.1p QoS
ANSI/IEEE 802.3 NWay auto-negotiation
Media Interface Exchange
Auto MDI/MDI-X adjustment on all ports
Performance
Switching Fabric
10 Gbps
Transmission Method
Store-and-forward
Data Transfer Rates
Gigabit Ethernet
Характеристики
| MAC Address Table | 2K entries per device |
| RAM Buffer | 64 KB per device |
| PoE | PoE Standards |
| IEEE 802.3af IEEE 802.3at | PoE-Capable Ports |
| Ports 1 to 4 | Power Budget |
| 60 W (30 W max. per PoE port) | Physical |

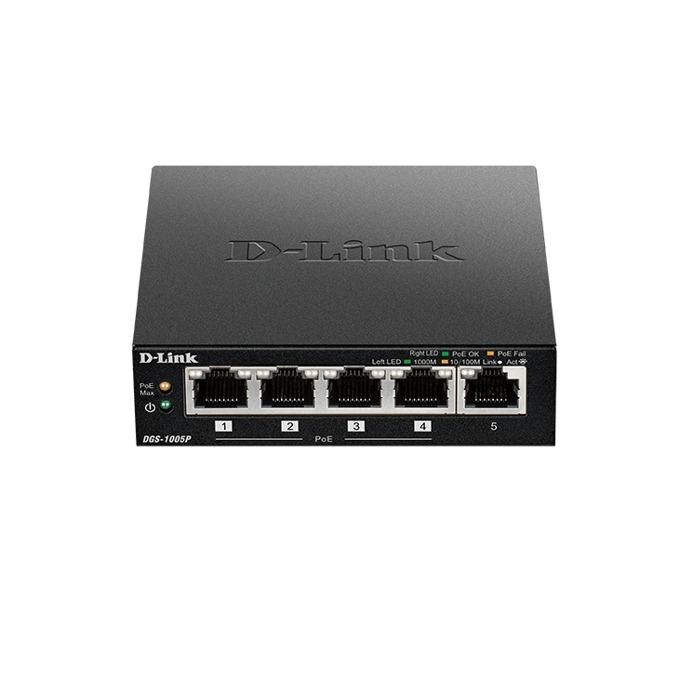

| LEDs | Power / PoE Max (per unit), Power / Status (per port), Activity / Link and Speed (per port) |
| Тегло | 0.26 kg (9.17 oz) |
| Размери | 100 x 98 x 28 mm (3.94 x 3.86 x 1.10 in) |

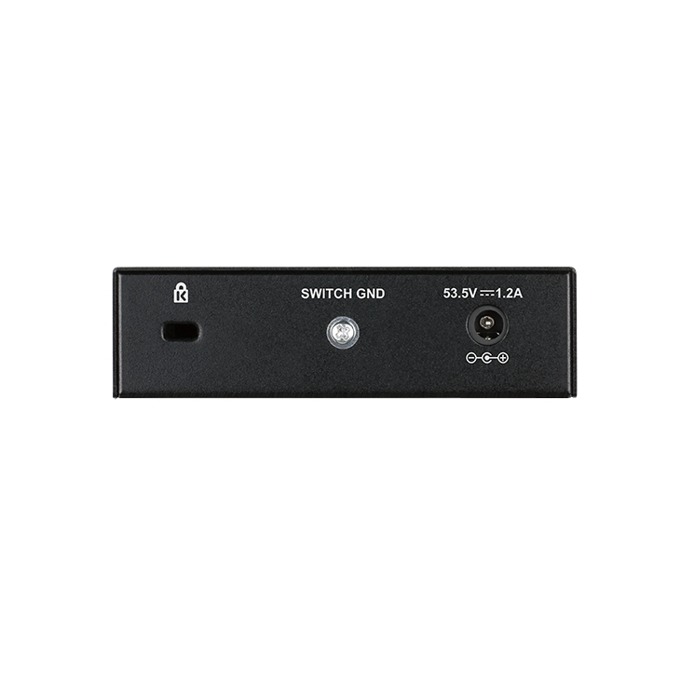

| DC Input | External 53.5 V / 1.2 A power adapter |
| Консумация на енергия | 64.5 W maximum (PoE on) |
| 3.08 W maximum (PoE off) | 0.54 W (standby) |
| Температура | Operating: 0 to 40 ˚C (32 to 104 ˚F) |
