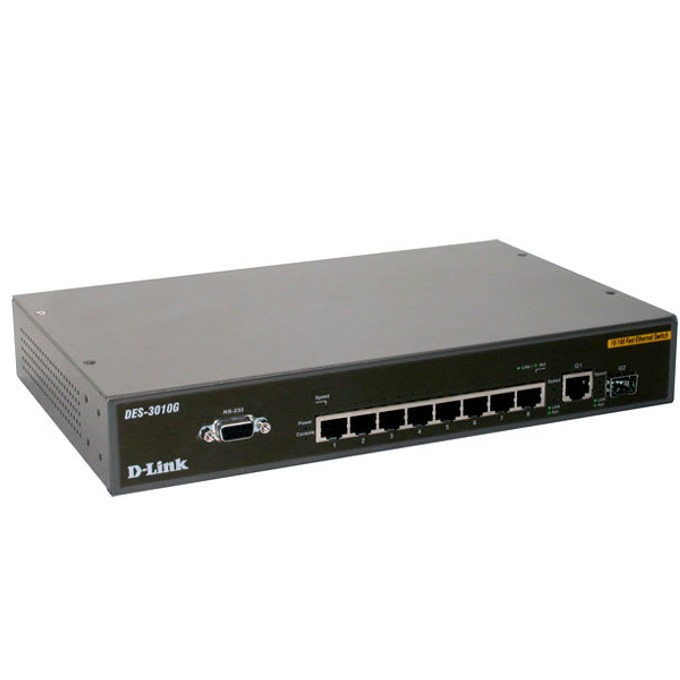

Суич D-Link DES-3010G
Артикул №: 1000010825
Категория:
Суич
116,99 €
✓ Налично във външен склад
General features:
Interfaces
- 8 10/100BASE-TX Ethernet
- 1 1000BASE-T Gigabit
- 1 SPF
Stackability
Virtual Stack
Stacking Topology
Virtual Stacking via SIM
Performance
Switching Capacity
5.6 Gbps
64-Byte Packet Forwarding Rate
4.2 Mpps
MAC Address Table Size
8 K
SDRAM for CPU
32 MB
Packet Buffer
256 KB
Flash Memory
4 MB
L2 Features
- IGMP Snooping
- 802.1D Spanning Tree
- 802.1w Rapid Spanning Tree
- 802.3ad Link Aggregation
- No. of Ports Per Group: 8 Ports
- No. of Groups Per Device: 3 Groups
- Port mirroring
- Broadcast Storm Control
VLAN
- 802.1Q
- Maximum VLANs: Total 255
- VLAN Type Support: Static Only
Quality of Service (QoS)
- Number of Priority Queues
- Port-Based QoS: 4
- MAC-Based (DA/SA) QoS
Network Access/Security
- RADIUS Authentication
- Port Security
- Maximum MAC Entries Per Port: 10
- 802.1x Port-based Access Control
- 802.1x MAC-based Access Contro
- Bandwidth Control
- Rate Limit
Interfaces
- 8 10/100BASE-TX Ethernet
- 1 1000BASE-T Gigabit
- 1 SPF
Stackability
Virtual Stack
Stacking Topology
Virtual Stacking via SIM
Performance
Switching Capacity
5.6 Gbps
64-Byte Packet Forwarding Rate
4.2 Mpps
MAC Address Table Size
8 K
SDRAM for CPU
32 MB
Packet Buffer
256 KB
Flash Memory
4 MB
L2 Features
- IGMP Snooping
- 802.1D Spanning Tree
- 802.1w Rapid Spanning Tree
- 802.3ad Link Aggregation
- No. of Ports Per Group: 8 Ports
- No. of Groups Per Device: 3 Groups
- Port mirroring
- Broadcast Storm Control
VLAN
- 802.1Q
- Maximum VLANs: Total 255
- VLAN Type Support: Static Only
Quality of Service (QoS)
- Number of Priority Queues
- Port-Based QoS: 4
- MAC-Based (DA/SA) QoS
Network Access/Security
- RADIUS Authentication
- Port Security
- Maximum MAC Entries Per Port: 10
- 802.1x Port-based Access Control
- 802.1x MAC-based Access Contro
- Bandwidth Control
- Rate Limit
Характеристики
| SNTP | - SYSLOG |
| Web GUI Traffic Monitoring | - Web MAC Address Browsing |
| Diagnostic LEDs | - Power (Per Device) |
| Console (Per Device) | - Link/Activity (Per Port) |
| Speed Indicator (Per Port) | * SIM Client is used for stacking with DES-3500, DES-3800 series switches, xStack or DES-6500 chassis embedded with SIM (Single IP Management) Commander v.1.0 or above. |
| Power Input | 100 to 240 VAC, 50 to 60 Hz Internal Universal Power Supply |
| Размери | - 280 (W) x 180 (D) x 44 (H) mm |
| Desktop Size, 1U Height | Работна температура |
| 0 to 40 C | Температура на съхранение |
| 40 to 70 C | Operating Humidity |
| 5% to 95% non-condensing | EMI |
| FCC Class A | - CE |
| C-Tick | - VCCI |
| Safety | CSA International |
