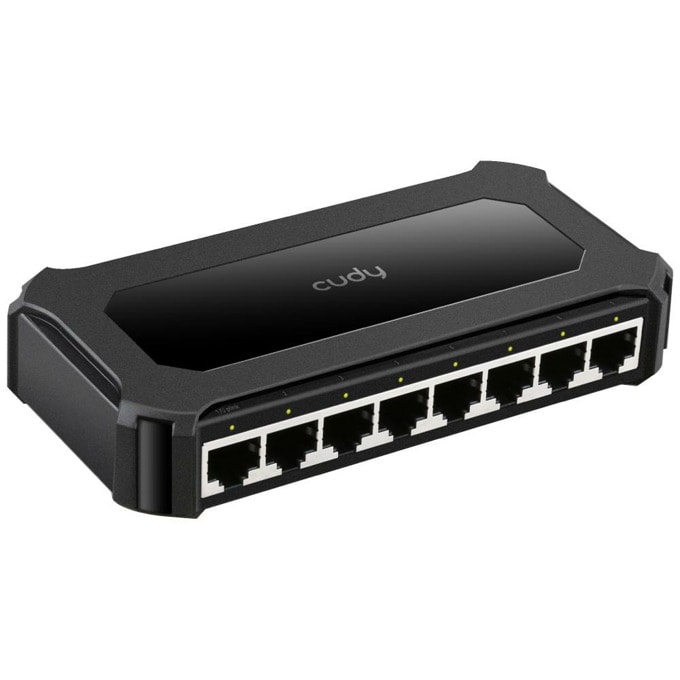

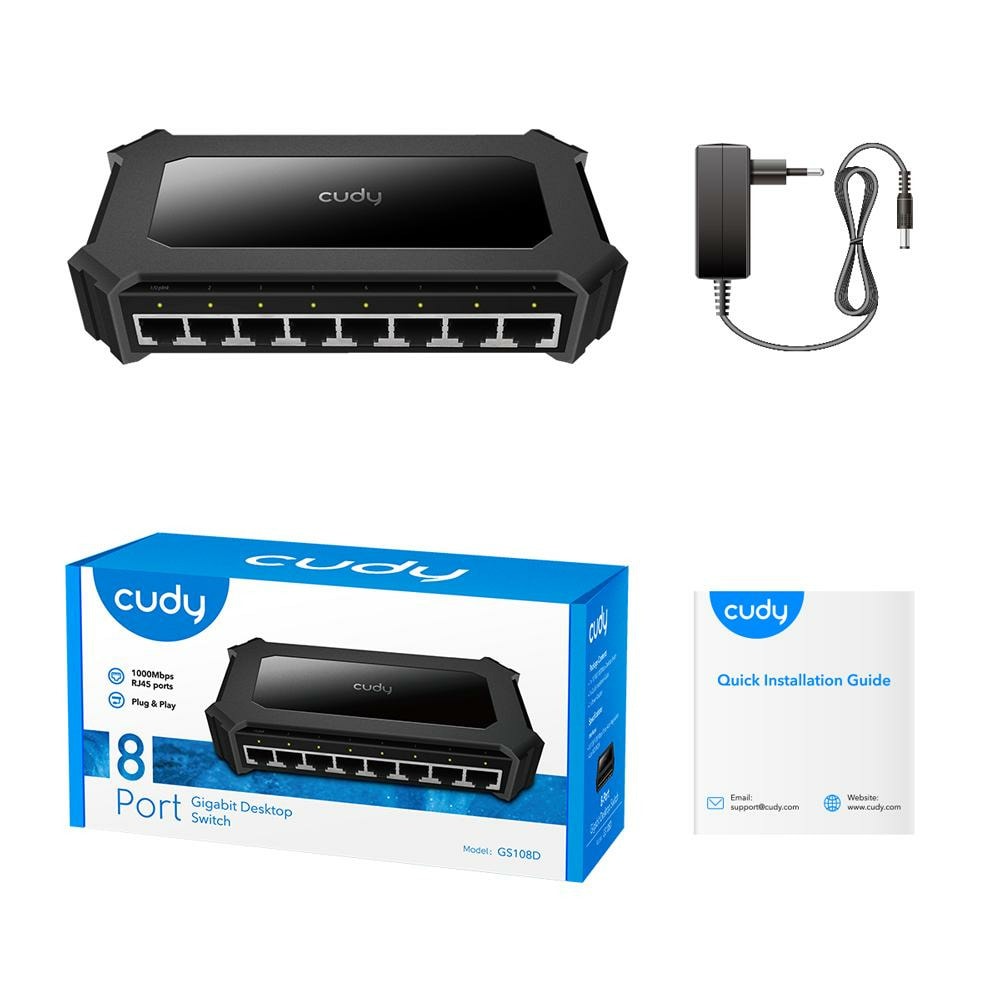

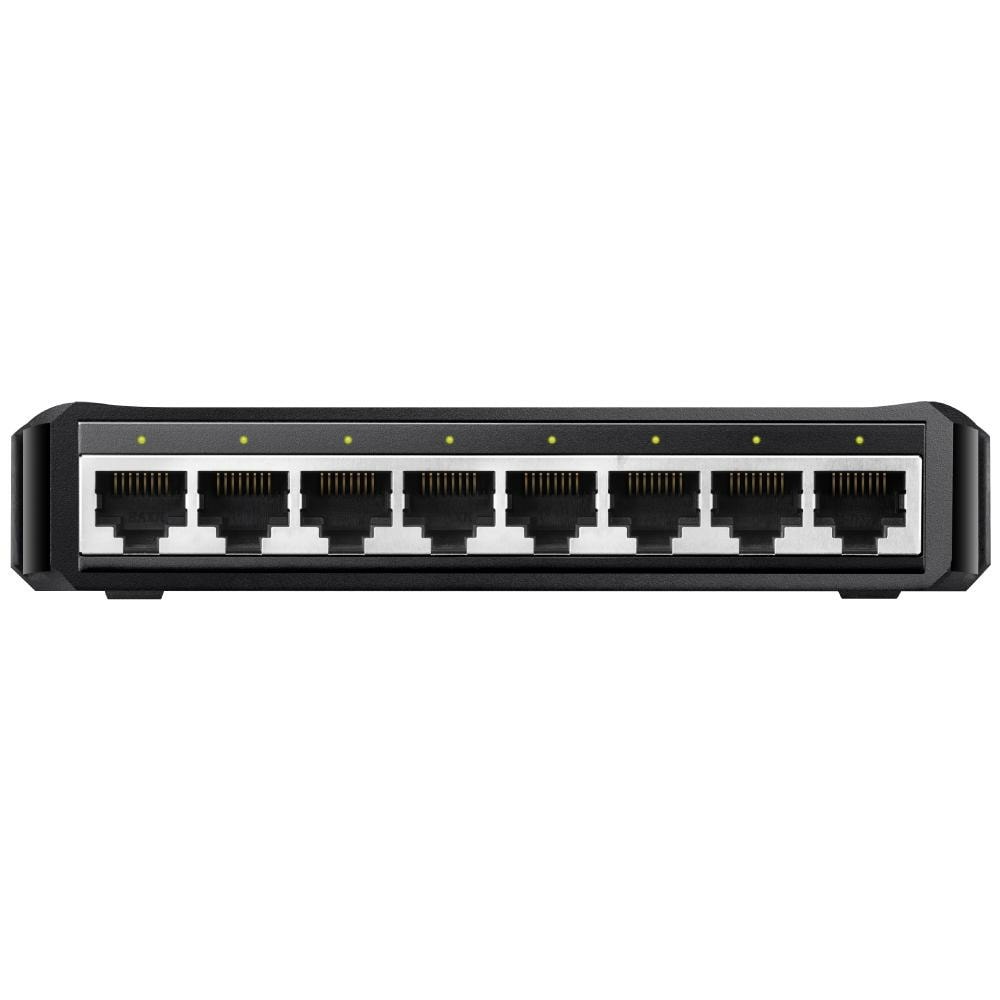

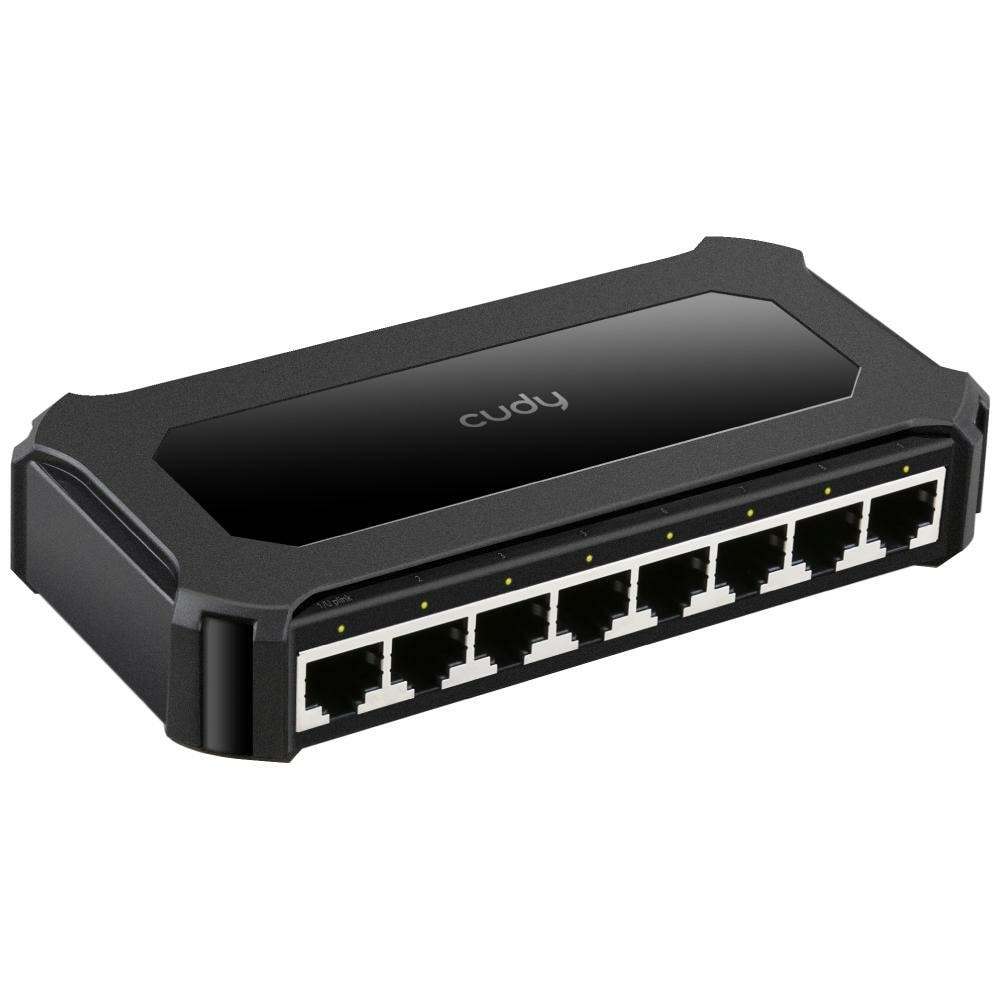

Cudy GS108D
● 8 x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
● IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE 802.3ab standard
● Supports MAC address auto-learning and auto-aging
● Non-blocking switching architecture enables
full wire-speed packets forwarding and filtering
● Cudy green technology saves the power up to 85%
● Plug & Play, Desktop design
High Performance
Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible
with any 10/100/1000Mbps Ethernet devices. Featuring non-blocking switching architecture,
the product forwards and filters packets at full wire-speed for maximum throughput.
IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
offer increased bandwidth to alleviate network congestion, making the switch work reliably.
Характеристики
| Network Media (Cable) 10BASE-T | UTP category 3,4,5 cable (maximum 100m) 100BASE-Tx: UTP category 5, 5e cable (maximum 100m) 1000BASE-T: UTP category 5e, 6 cable (maximum 100m) |
| Number of Ports | 8 x 10/100/1000Mbps Auto-Negotiation ports |
| Switching Capacity | 16Gbps |
| Power Input | DC 5V /1A(adapter) |
| Frame Filtering and Forward Rate 10Mbps | 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps |
| Dimensions W*D*H | 143mm x 72.7mm x 26.9mm |
| Тегло | 215g |
| Operating Temperatur | 0°C~40°C (32°F~104°F) |
| Relative Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~95%, non-condensing |
