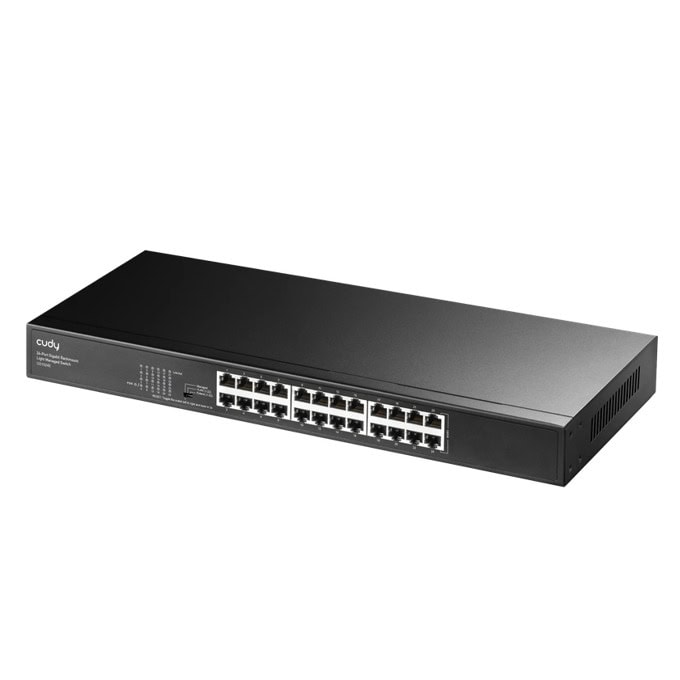

A software features introduction to Cudy Light-Managed Switches. The actual port number varies.
Secure and High-Performance Switching
Managed/VLAN/Extend Preset Modes
Versatile Scenarios
Features
- 24× GbE
- Web Management, SNMP
- VLAN (802.1Q/MTU/Port-Based)
- QoS (802.1p/DSCP/Port-Based)
- Port Mirror, Static Aggregation, etc
- Loop Detection and Prevention
- DHCP Snooping, IGMP Snooping
- Managed/VLAN/Extend Preset Modes
- Desktop, Rack-Mount: 440×180×44 mm (17.32×7.09×1.73'')
Specifications
Характеристики
| Memory/Storage | Flash/ROM · 8 MB (64 Mbit ) NOR |
| Interfaces | Gigabit RJ45 Ports · 24 |
| Performance | Max Copper Speed and Distance · Cat. 3 or higher cable: 100 meters at 10 MbpsCat. 5 or higher cable: 100 meters at 100 MbpsCat. 5e or higher cable: 100 meters at GigabitCat. 5e or higher cable: 250 meters at 10 MbpsCat. 6 or higher cable: 150 meters at Gigabit |
| MAC Address Table · | 8192 |
| VLANs · | 4096 |
| Max Switching Capacity · | 48 Gbps |
| Max Forwarding Rate · | 35.712 Mpps |
| Jumbo Frame · | 15 KB |
| Packet Buffer · | 4 Mbit |
| Мощност | Power Input Type · AC Inlet |
| Power Input · | 90-260V~ 50/60Hz |
| Max Power Consumption · | 11W |
| Idle Power Consumption · | 6.8W |
| Switching | 802.3 Protocols · 802.3x Flow Control802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3az Power Saving |
| Port Mirror Sessions · | 4 |
| Port Trunk Groups · | 4 |
| Max Port Num per Port Trunk Group · | 8 |
| Reliability | Grounding Methods · Three-Prong PlugGrounding Point |
| System | Control Methods · Config Web PageSNMP V1/V2Cudy App |
| Mechanical | Dimension · 440×180×44 mm · 17.32×7.09×1.73 inches |
| Product Weight · | 1690 g (59.61 oz.) |
