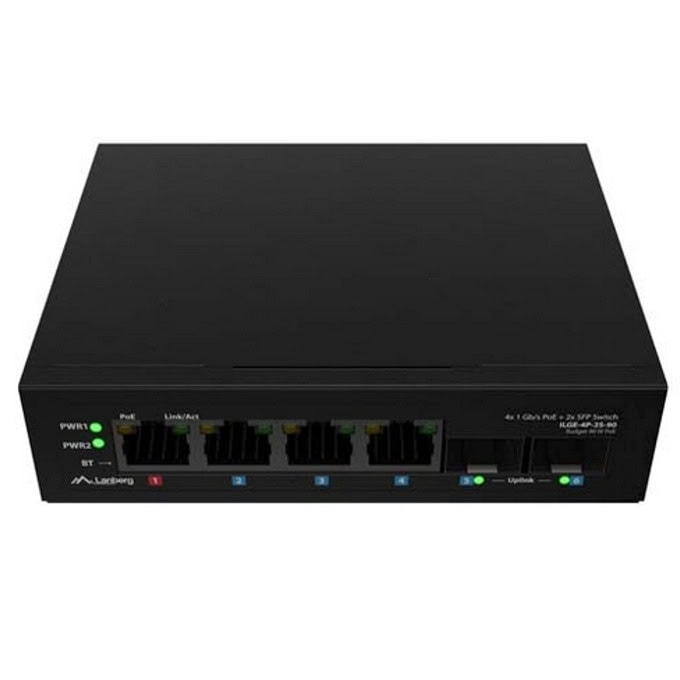

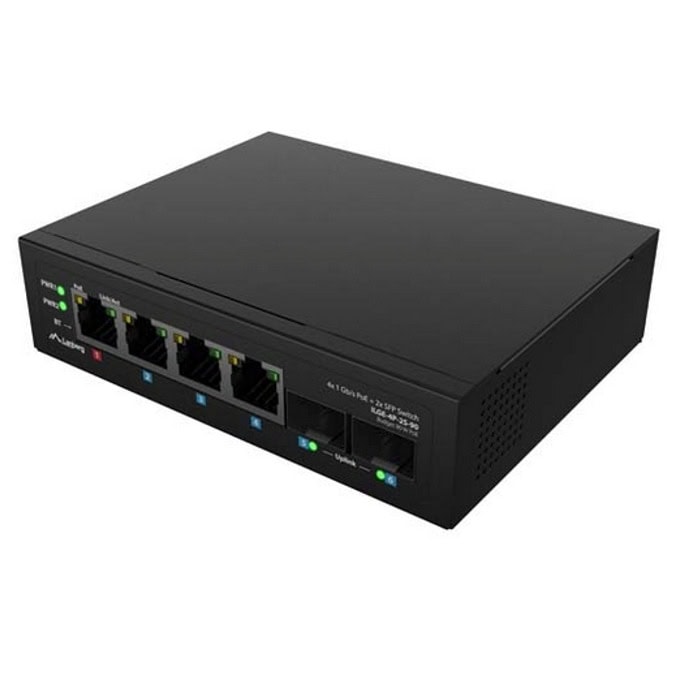

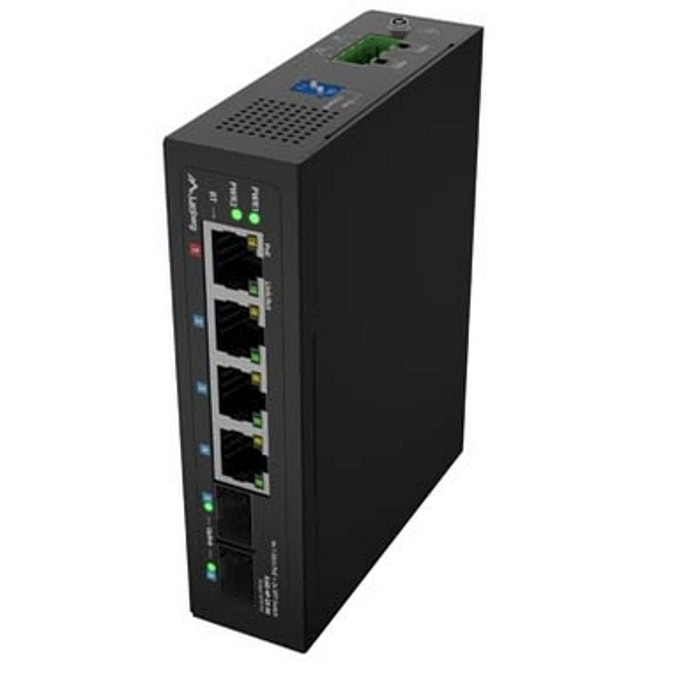

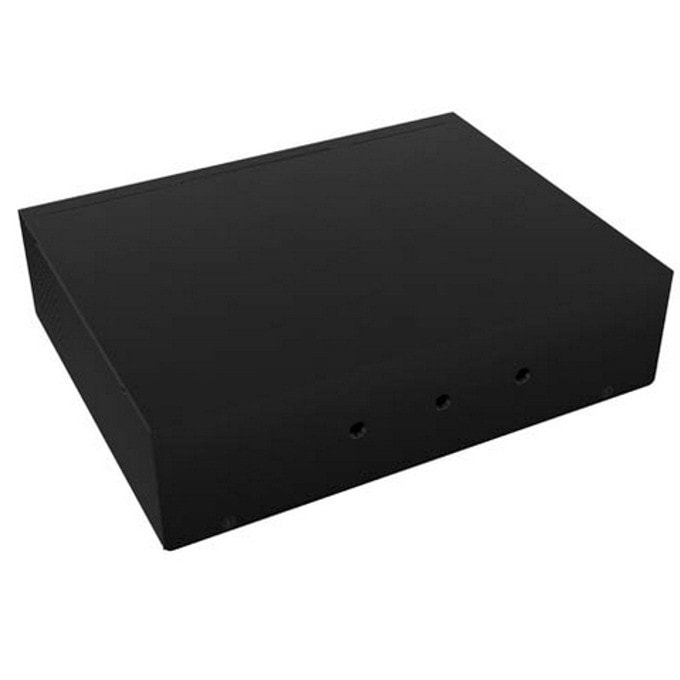

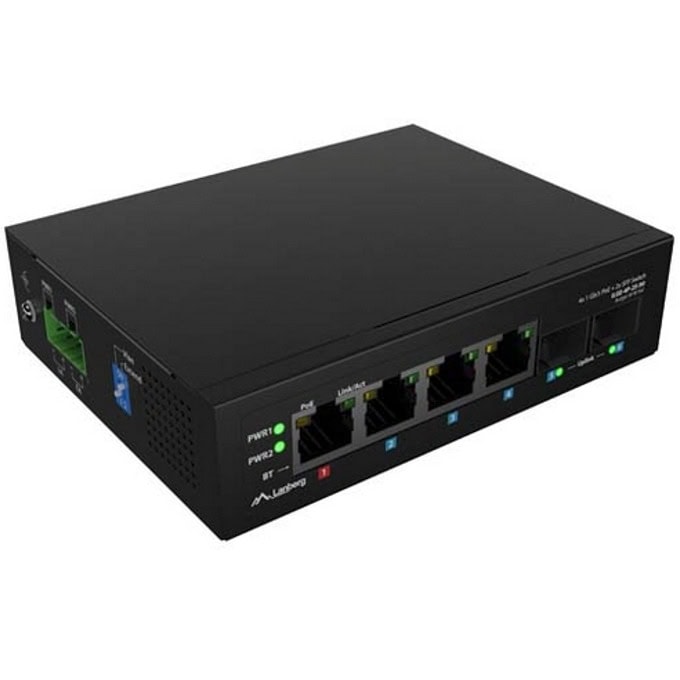

Lightweight unmanaged industrial switch Lanberg ILGE-4P-2S-90

Industrial switches are an indispensable active device in any network structure – from automation and SCADA systems, through cable television networks, to distributed IoT installations and monitoring. The Lanberg series of lightweight industrial switches has been designed for demanding working environments: metal housing, passive cooling, and operating parameters allow for stable operation in a wide range of ambient temperatures. The key advantages of this line include high PoE power (PoE+ / PoE++), redundant power supply (possibility of connecting 2 power sources), DIN rail mounting, VLAN and EXTEND functions, automatic MDI/MDI-X, flow control, intelligent PoE port disconnection function, and MAC auto-learning.

In practice, this network switch is designed for distributed infrastructure: industry, street lighting infrastructure, outdoor CCTV monitoring, alarm systems, and indoor and outdoor installations where both Ethernet data transmission and PoE power supply to end devices (cameras, recorders, access points, controllers, sensors) are important – often with higher power consumption.

NOTE: The device power supply is included in the product set.

Industrial switch ILGE-4P-2S-90 with a rich selection of ports

This switch is equipped with ports designed for industrial applications and fiber uplinks:

• 4× RJ45 Ethernet PoE ports for end devices (PoE switch), supporting IEEE 802.3af / 802.3at (PoE / PoE+) and 802.3bt (PoE++) – including PoE++ BT up to 90 W on a dedicated port to power more demanding devices.
• 2× SFP slots (1000BASE-X) as uplink – dedicated to traffic exchange between network segments and for building longer-distance connections (optical parameters depend on the selected SFP module).

Easy installation in 19" racks and on a DIN rail

This is a Plug & Play unmanaged switch – connect power and cables, and the device configures the link parameters automatically. MDI/MDI-X auto-detection recognizes the cable type, eliminating the need for crossover wiring. In IP surveillance systems, reliable packet forwarding is crucial – store-and-forward switching with CRC checking helps reduce propagation of corrupted frames.

A major advantage is DIN-rail mounting, making it easy to install the device in automation cabinets, and when needed – also in rack environments (e.g., on a shelf or using integration accessories such as rack mounting ears). This provides flexibility for installation both inside and outside RACK cabinets.

Number of Ethernet ports

4

Number of fiber ports

2

Number of POE ports

4

Ports specification

1x 100BASE-T 802.3bt PoE++, 2x 1000BASE-X SFP, 3x 100BASE-T 802.3af/802.3at PoE+

Maxiumum network link speed

1 Gbps

Network Link Type

Ethernet, Fiber

Management

Unmanaged

Specialized
