TP-Link
Соларен панел TP-Link VIGI SP6020
Артикул №: 1000032038
Категория:
Видеонаб. други аксесоари
1 190,99 €
✓ Ограничена наличност

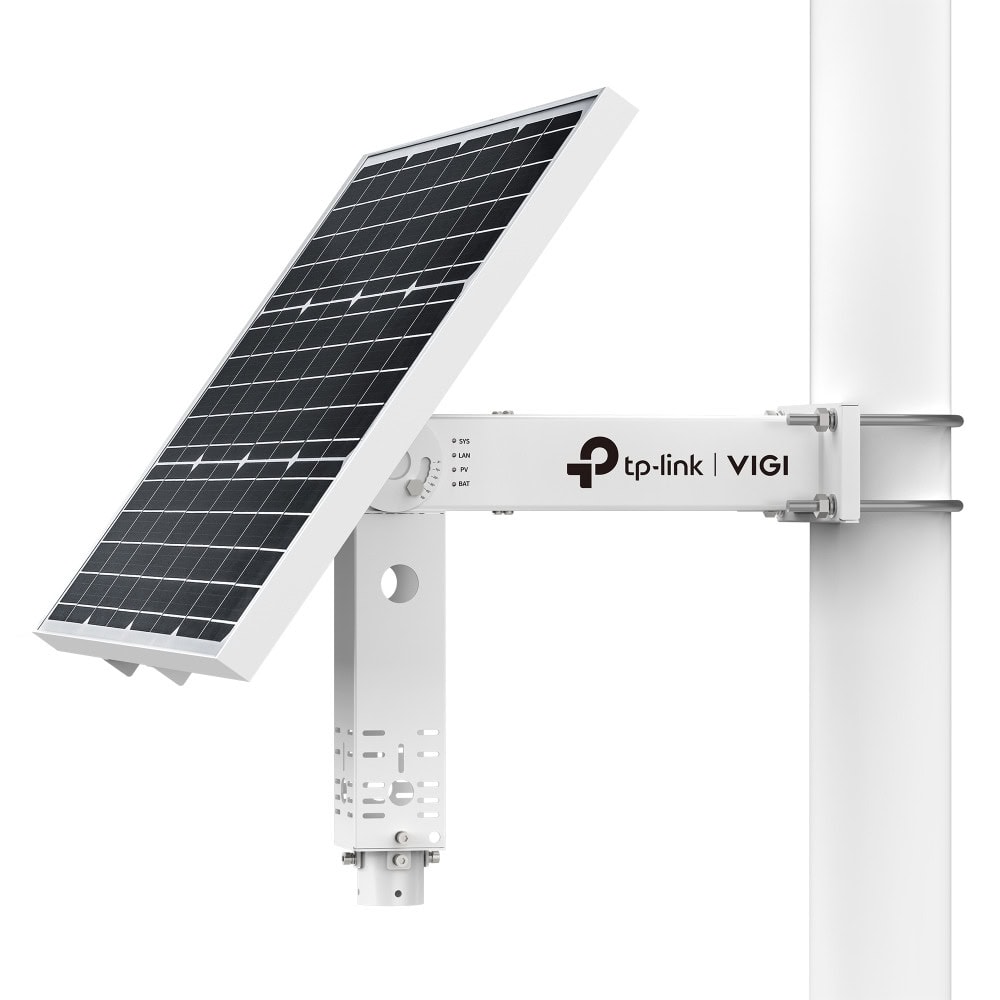

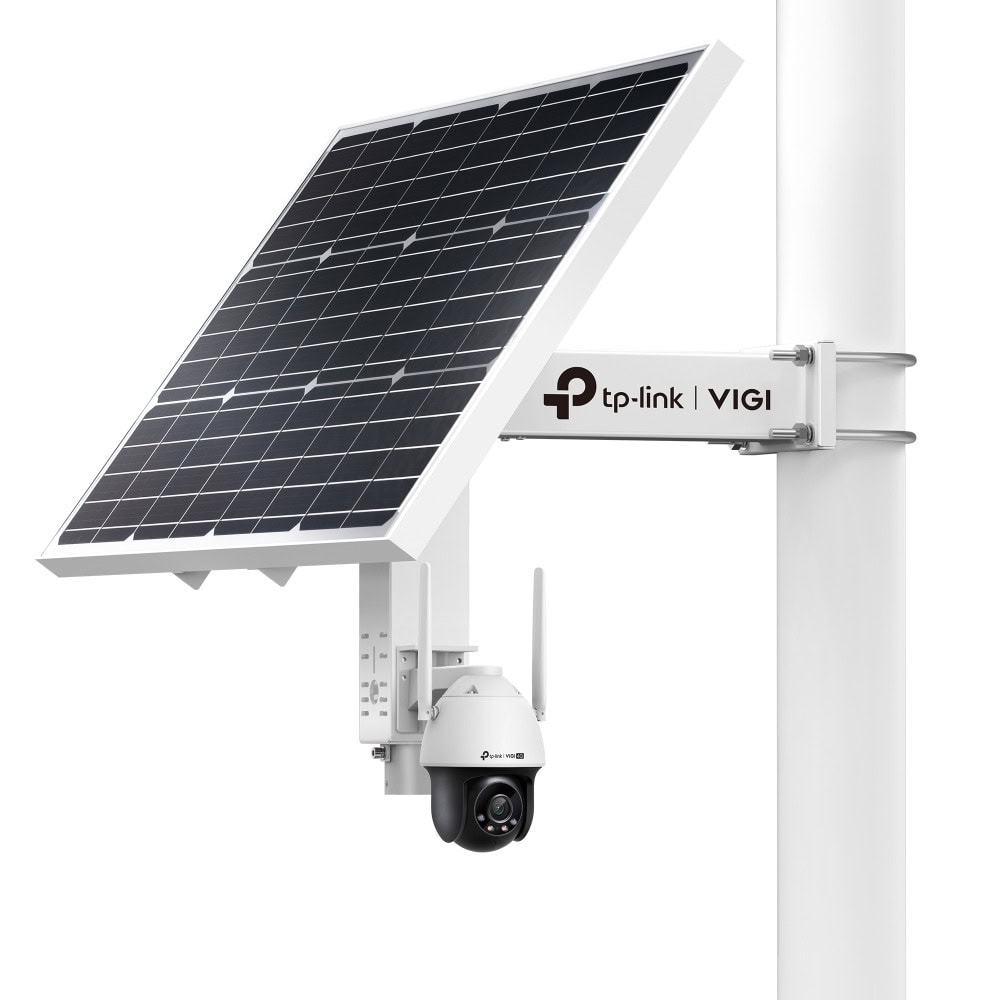

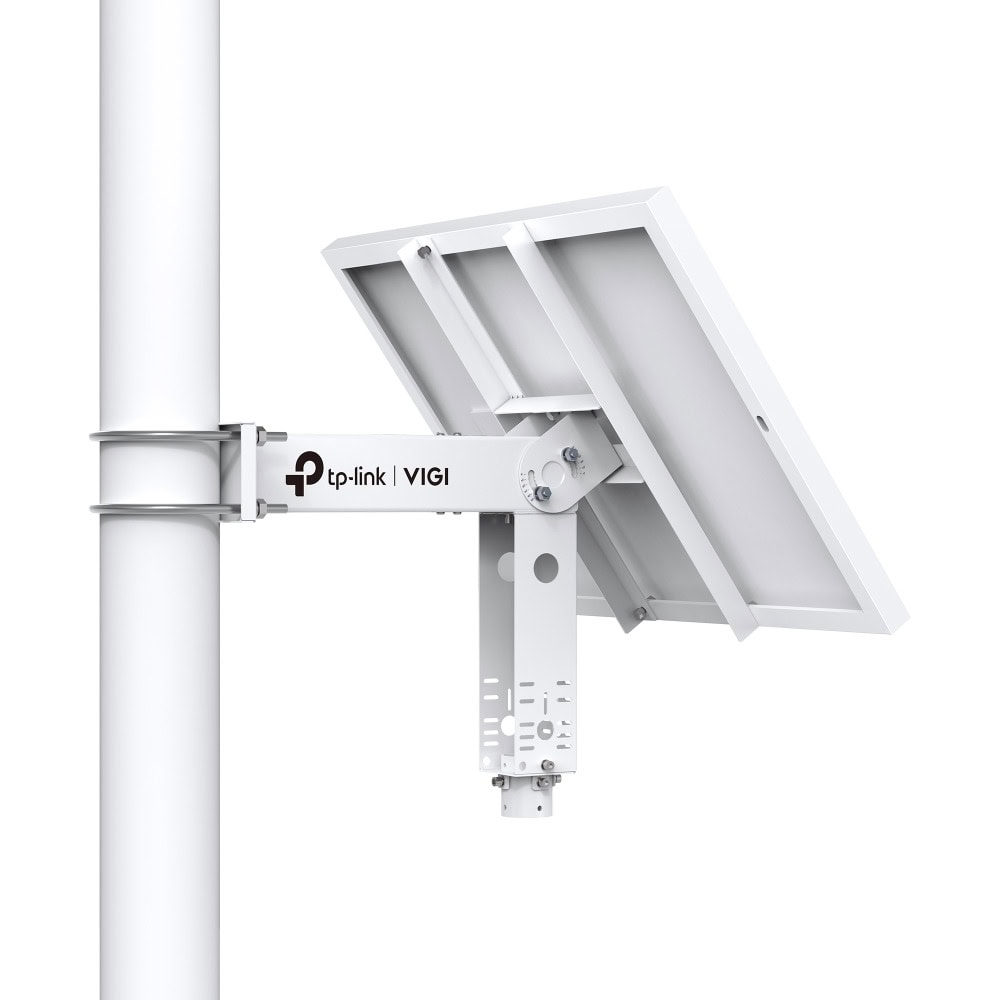

TP-Link VIGI SP6020
VIGI Intelligent Solar Power Supply System
- 60W Photovoltaic Panel and 20.8Ah/10.8V Lithium Battery
- 3× DC Voltage Output Ports

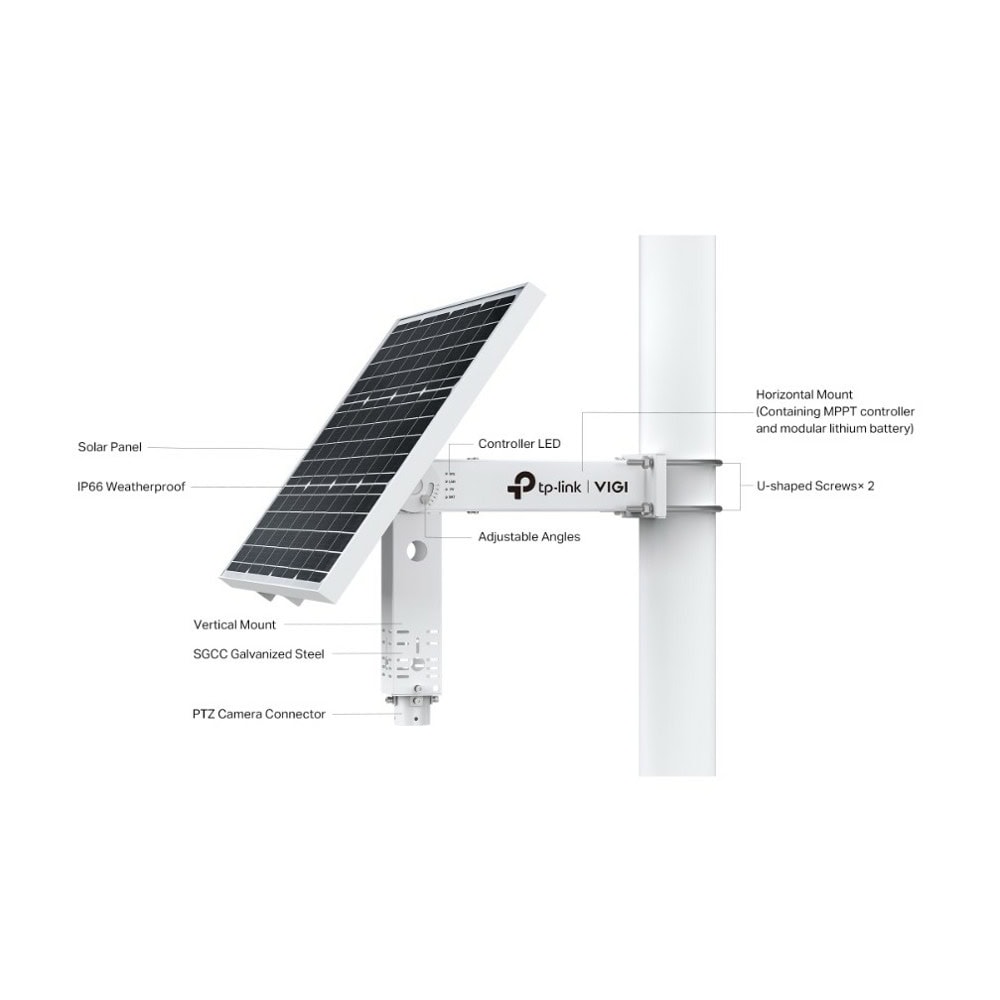

- Modular Design
- 5°/15°/25°/35°/45°/55° Adjustable Angles
- Intelligent Auxiliary Heating Technology
- Maximum Power Point Tracking (MPPT) Charging Controller
- IP66 Weatherproof
- Remote Management and Simple Installation
Remote Management
Control devices centrally, monitor power statistics, get low-battery alerts, update firmware, and reboot
the system via the mobile app. Enjoy peace of mind, no matter your location.
Intelligent Auxiliary Heating Technology
The built-in smart battery supports intelligent auxiliary heating technology, which allows the battery to operate normally across a wide temperature range.

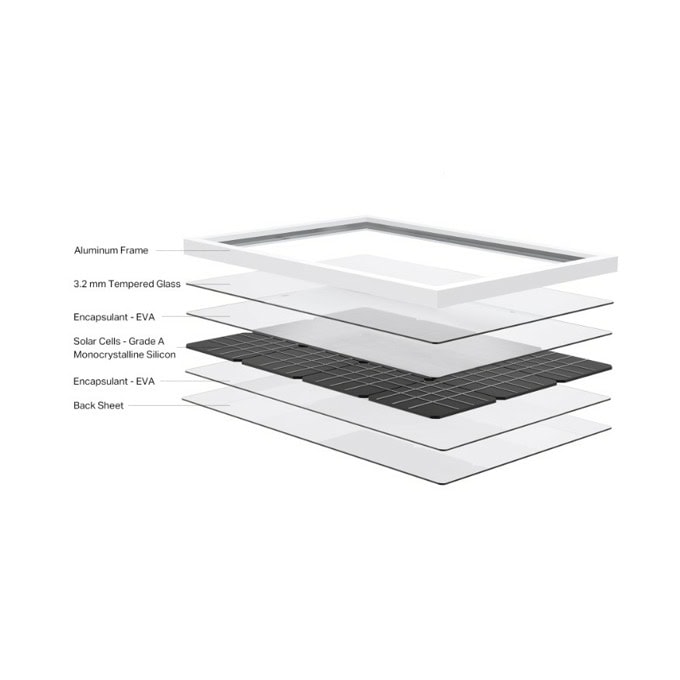

Solar Panel (Photovoltaic Panel)
| Мощност | 60 W |
| Напрежение | 18 V |

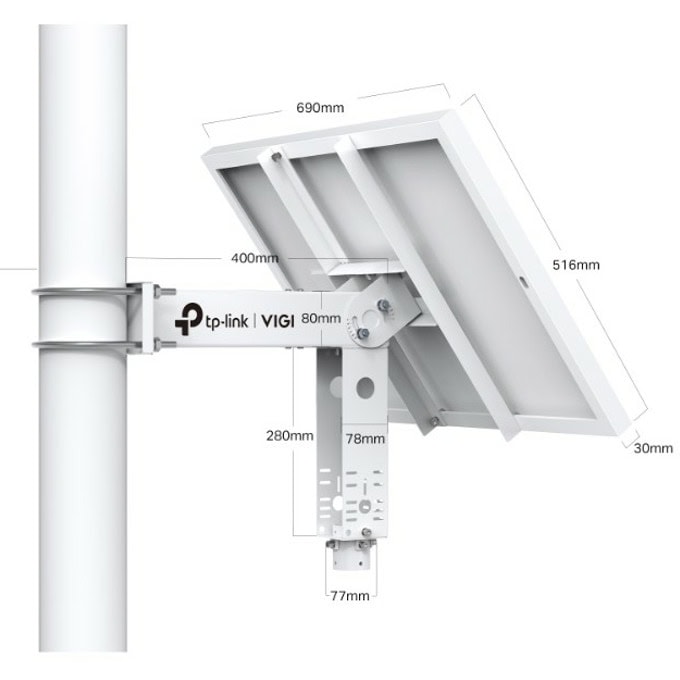

| Dimensions (L x W x H) | 690×516×30 mm (27.2×20.3×1.2 in) |
Батерия
| Тип | Lithium |
| Intelligent Auxiliary Heat | Да |
| Капацитет на батерията | 20.8 Ah |
| Напрежение | 10.8 V |
| Max. Output Voltage | 12.6 V |
| Life | More than 500 cycles |
| Размер | 242×70×55 mm (9.5×2.8×2.2 in) |
| Charging Condition | • 0°C~45°C · • -30°C~45°C (With intelligent auxiliary heating) |
| Discharging Condition | • -20°C~60°C · • -30°C~60°C (With intelligent auxiliary heating) |
Angle Adjustment (Manual)
| Range | 5°/15°/25°/35°/45°/55° |
HARDWARE
| Интерфейс | • 1× 10/100 Mbps RJ45 · • 1× Photovoltaic Panel Connector · • 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A) |
| Indicator LED | • Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator) · • Color: Blue |
SOFTWARE FEATURES
| Load Control | Да |
| High and Low Temperature Protection | Да |
| Overdischarge Protection | Да |
| Power Consumption Statistics | Да |
| Displays Real-time Load Status | Да |
| Battery Level Display | Да |
| Time Zone Selection | Да |
| Region Selection | Да |
| Schedule Saving | Да |
| Firmware Remote Update | Да |
| Remote Reboot | Да |
| Local LAN Management | Да |
| Smart Charging Control | -30°C~5°C |
| Account Management | Да |
| Web Management | Да |
| Remote Reset | Да |
| Remote Message Push | Да |
OTHERS
| Сертификация | • CB, PSE (Battery) · • CE, FCC, VCCI, IC, IP66 |
| Box Dimensions (W X D X H) | 800×615×225 mm (31.5×24.2×8.9 in) |
| Тегло | • Product Weight: 13 kg · • Package Weight: 14.5 kg |
| Environment | • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating) · • Operating Humidity: 10%~90%RH, Non-condensing |
