Fibaro

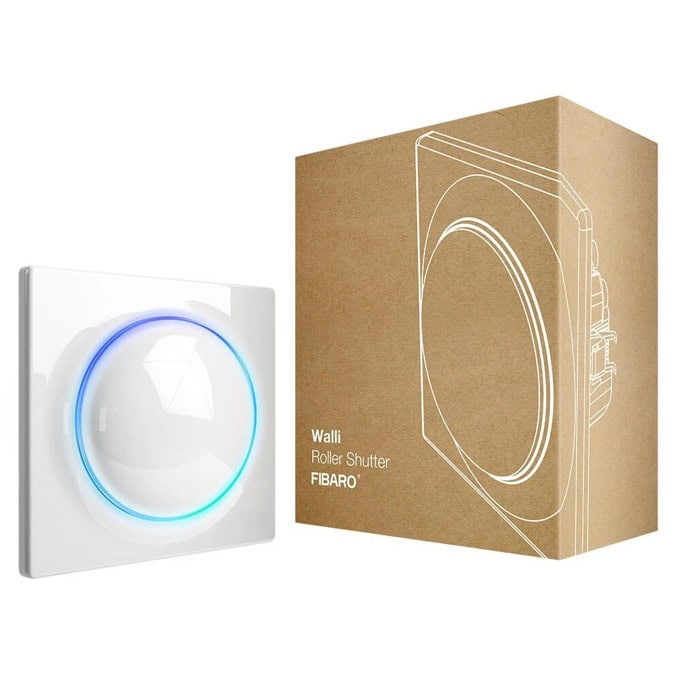

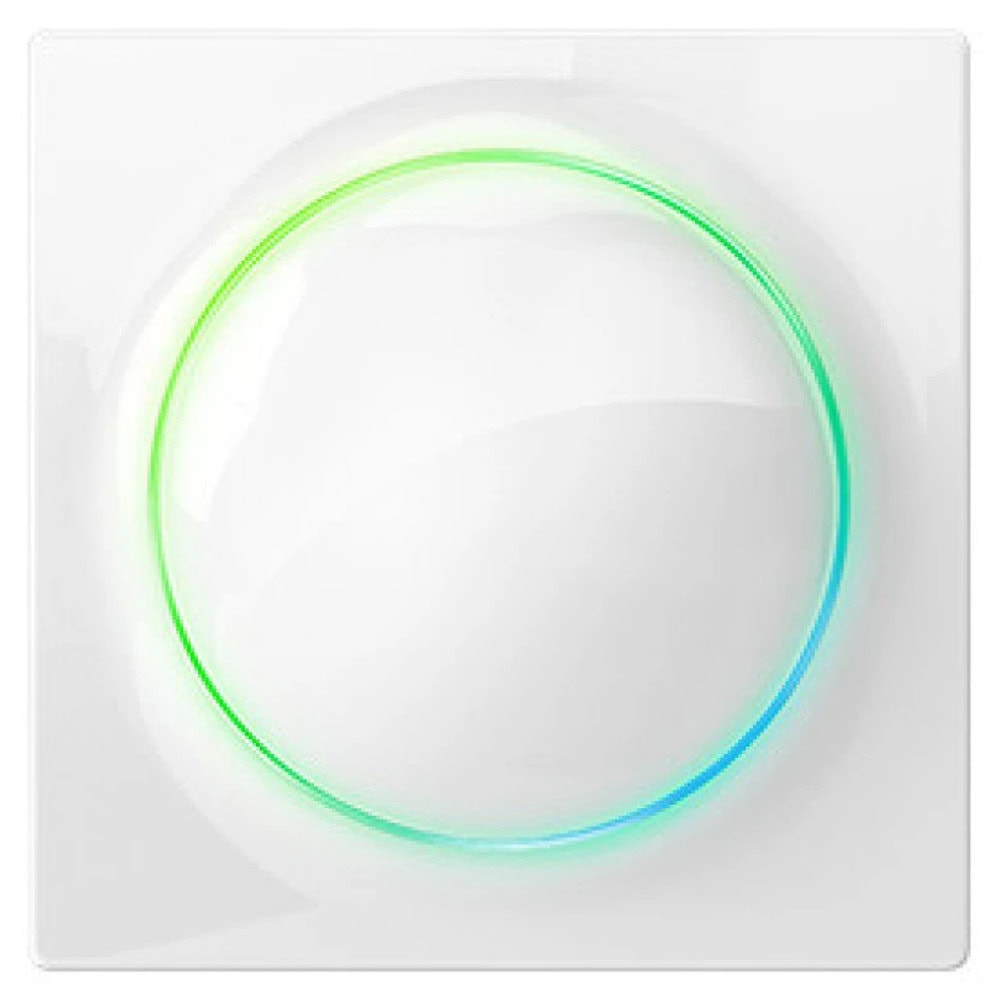

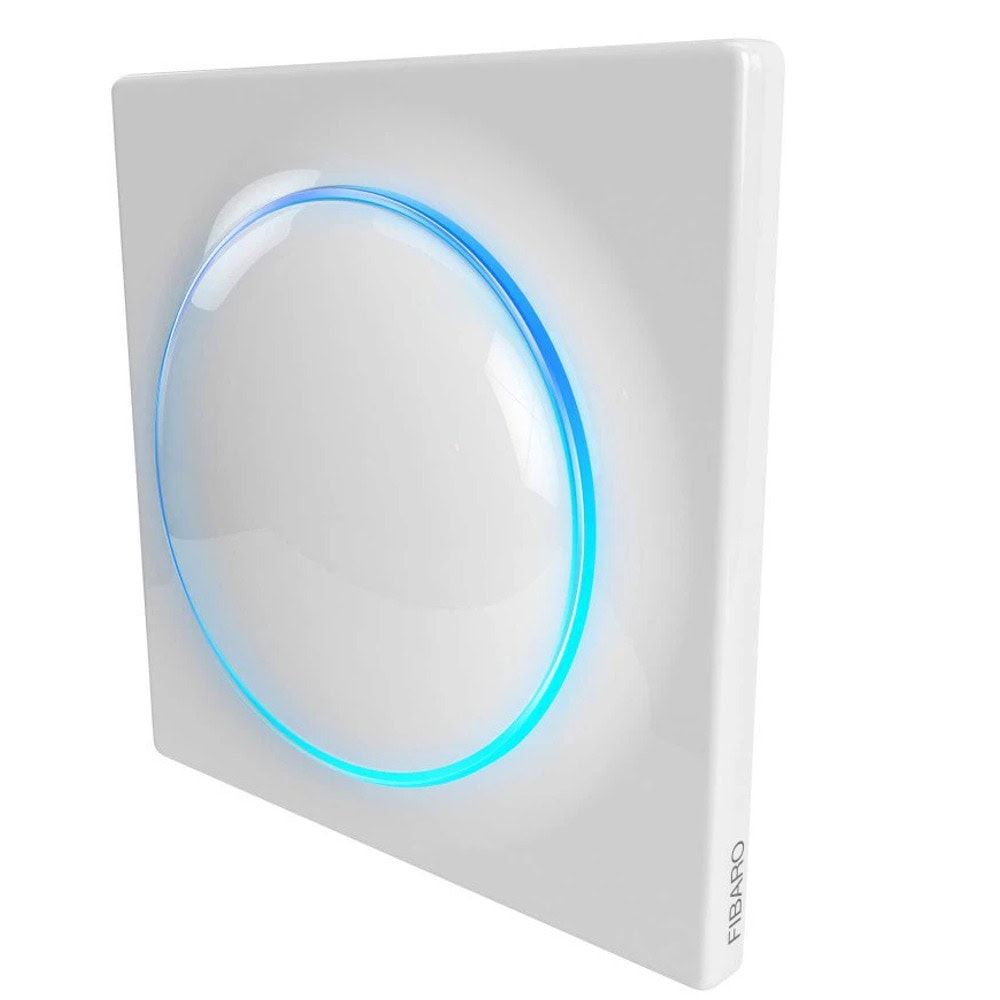

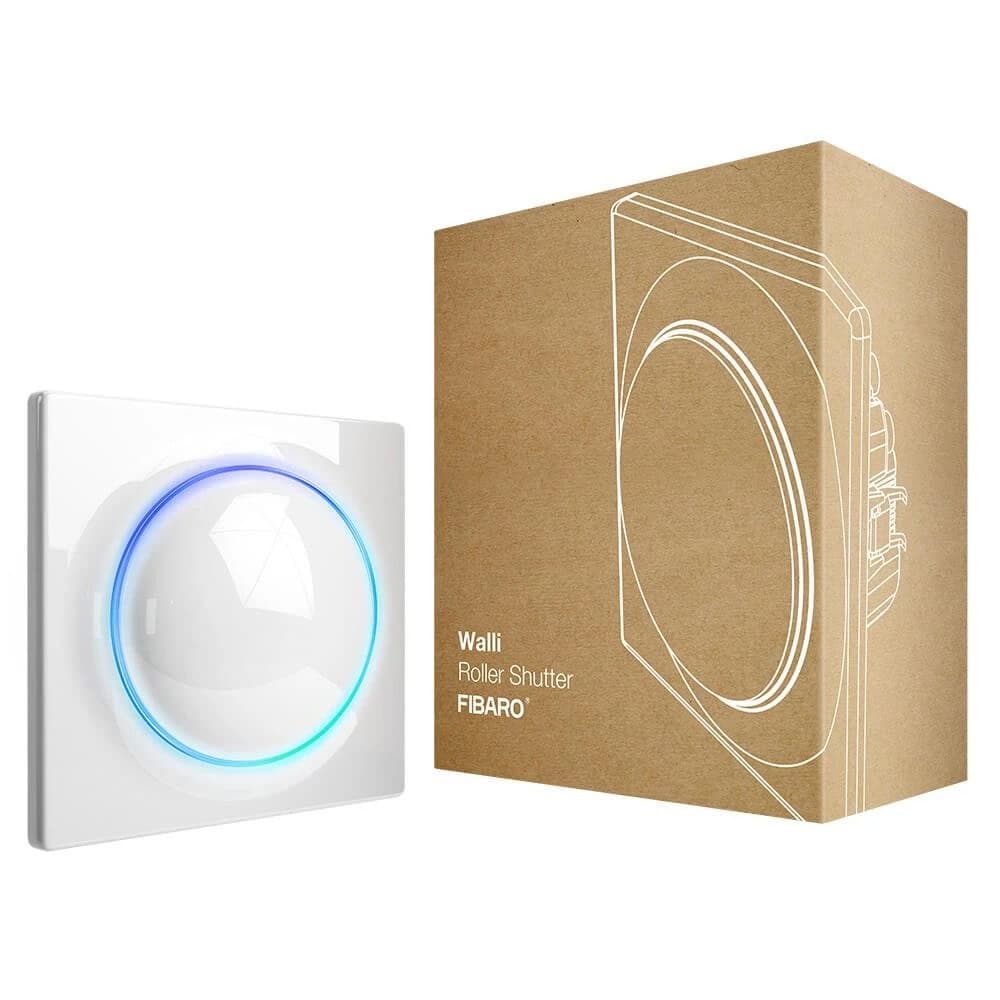

Смарт превключвател Fibaro Walli Roller Shutter (FGWREU-111)
Артикул №: 1000139456
Категория:
Smart home
80,99 €
✓ Налично във външен склад
FIBARO Wall Roller Shutter is a smart wall switch designed to control roller blinds, awnings, venetian blinds and other single phase, AC powered devices via Z-Wave network.
It measures active power and energy consumed by the controlled load.
You can install it with FIBARO cover plate or other compatible: GIRA System 55 (Standard 55, E2, Event, Event Clear), Legrand Céliane or Schneider Odace (required parts and limitations were described in the full manual).
Technical details
| Размери | Height 86 mm, Width 86 mm, Depth 51 mm |
| Захранване | 110-230V~50/60 Hz |
| Recommended external overcurrent protection | 10A type B circuit breaker (EU), 13A type B circuit breaker (Sweden) |
| Active element | micro-gap relay μ |
| Required limit switches | electronic or mechanical |
| Recommended wires | cross-section area between 1.5-4.0mm2 |
| For installation in boxes | Ø = 60mm, depth ≥ 40mm |
| Работна температура | 0-35 °C |
| Ambient humidity | 10–95% RH without condensation |
| Rated load current | 4A – for motors with compensated power factor (inductive), 13A – for resistive loads |
| Compatible load types | single-phase AC motors, resistive |
| Radio protocol | Z-Wave |
| Transmit power | EIRP max 6dBm |
| Radio frequency | 868.4 or 869.85 MHz EU |
| Range | up to 40m indoors(depending on terrain and building structure) |
