TP-Link
SFP модул TP-Link TL-SM311
Артикул №: 1000006938
Категория:
Адаптери за оптични връзки
18,99 €
✓ Налично в централен склад

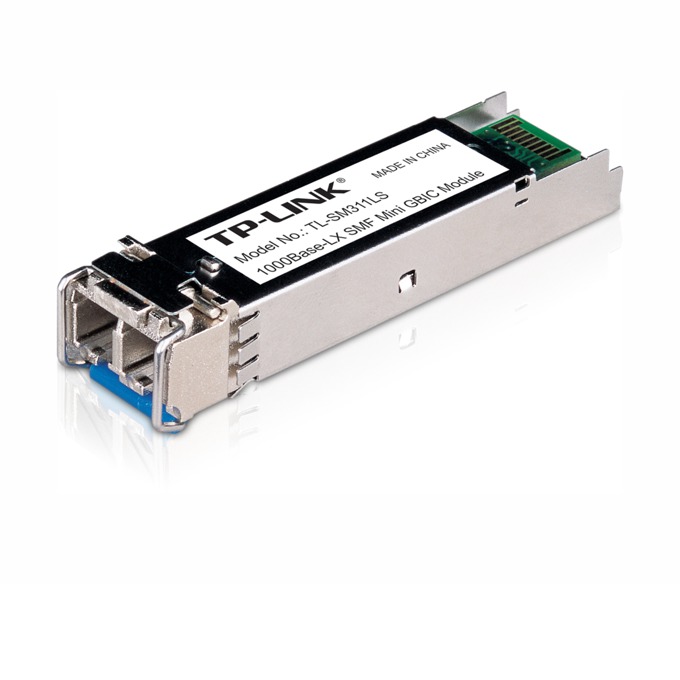

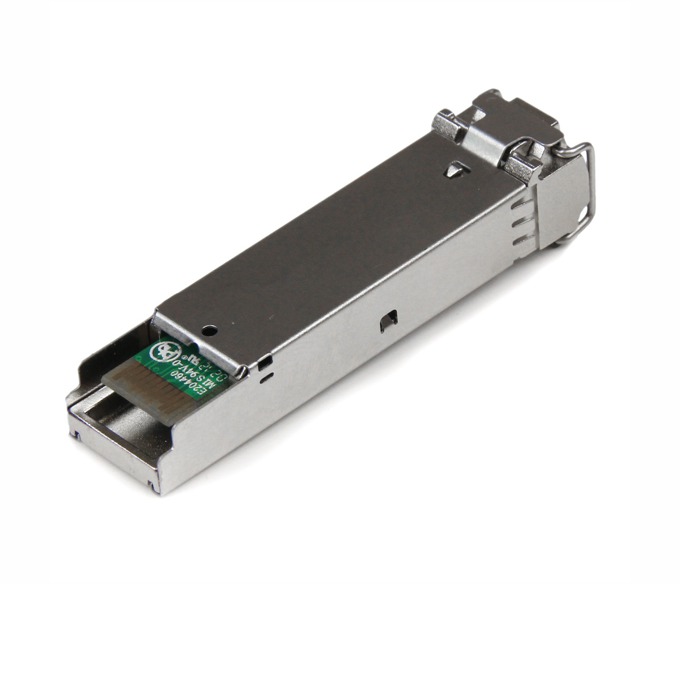

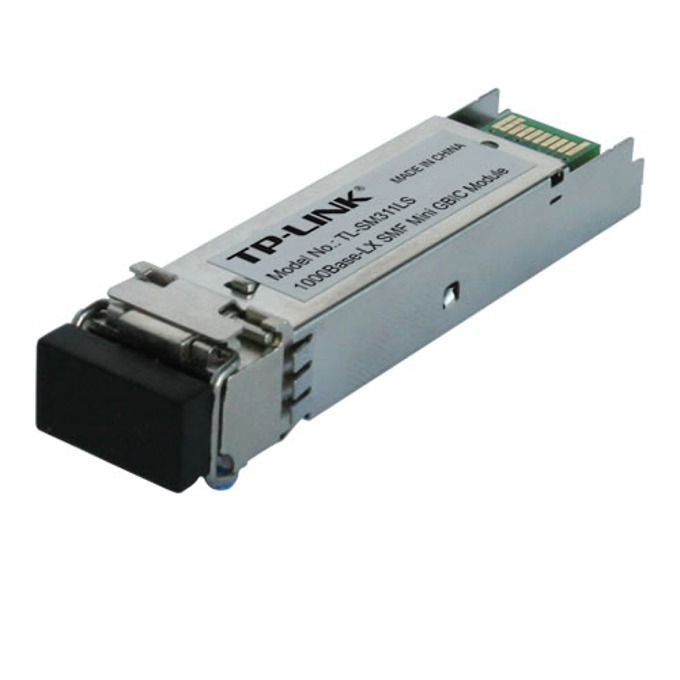

TP-LINK TL-SM311
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Standards and Protocols IEEE 802.3z, CSMA/CD, TCP/IP
Wave Length 1310nm
Power Supply 3.3V
Safety & Emission FCC, CE
Cabel Single-mode Fiber
Fiber Type 9/125 μm Single-mode
Max. Cable Length 10km
Data Rate 1.25Gbps
Port Type LC/UPC
Environment Operating Temperature: 0℃~70℃ (32℉~158℉)
Storage Temperature: -40℃~80℃ (-40℉~176℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
- Supports Full-Duplex
- Plug-and-Play
- Supports Pull-or-Plug with power on switches
- Power: internal power from switches
- Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC220L
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Standards and Protocols IEEE 802.3z, CSMA/CD, TCP/IP
Wave Length 1310nm
Power Supply 3.3V
Safety & Emission FCC, CE
Cabel Single-mode Fiber
Fiber Type 9/125 μm Single-mode
Max. Cable Length 10km
Data Rate 1.25Gbps
Port Type LC/UPC
Environment Operating Temperature: 0℃~70℃ (32℉~158℉)
Storage Temperature: -40℃~80℃ (-40℉~176℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
- Supports Full-Duplex
- Plug-and-Play
- Supports Pull-or-Plug with power on switches
- Power: internal power from switches
- Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC220L
Технически характеристики
| Environment Operating Temperature | 0℃~70℃ (32℉~158℉) |
| Температура на съхранение | -40℃~80℃ (-40℉~176℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| - Power | internal power from switches |
