TP-Link
Рутер TP-Link Omada ER707-M2
Артикул №: 1000132178
Категория:
Мрежови адаптери
145,99 €
✓ Налично във външен склад
ER707-M2
Omada Multi-Gigabit VPN Router
- Two 2.5G Ports : 1× 2.5G WAN and 1× 2.5G WAN/LAN ports provide high-bandwidth aggregation connectivity.
- Up to 6 WAN Ports : 2.5G RJ45, gigabit Fiber, and gigabit RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
- Highly Secure VPN : Enterprise-standard SSL/IPSec/GER§/PPTP/L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.
- Integrated into Omada SDN : Supports Zero-Touch Provisioning (ZTP),** Centralized Cloud Management, Intelligent Monitoring, and more.

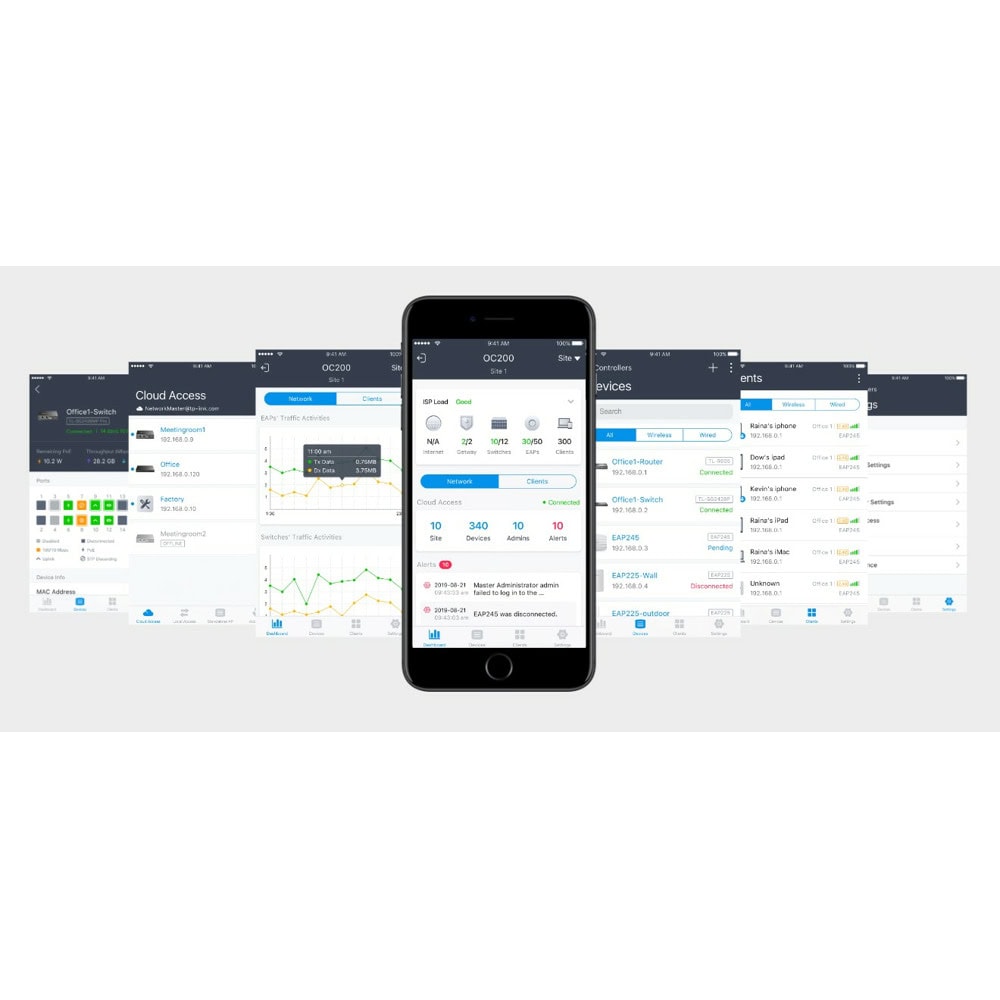

- Centralized Management : Cloud access and Omada app provide the utmost in management convenience.
- Extensive Security Features : Protect your network and data with advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions.

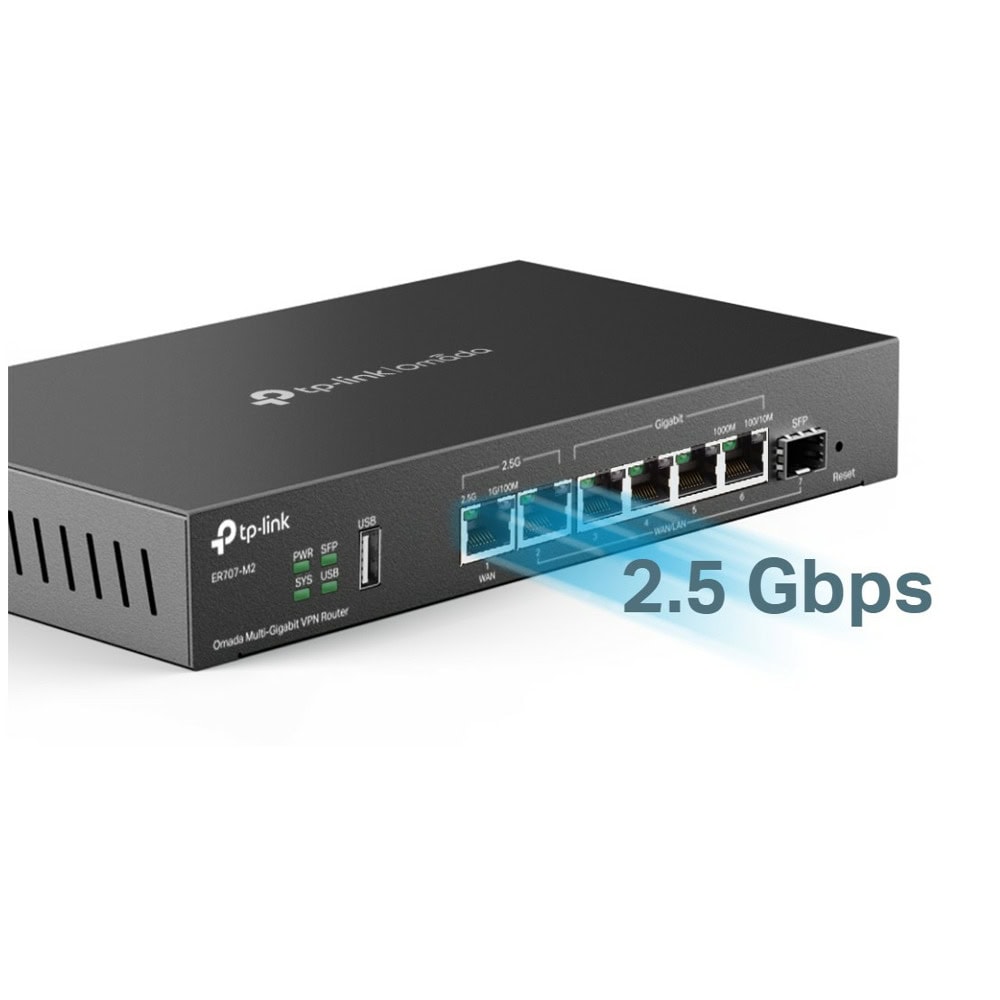

Dual 2.5 Gbps Ports, Engineered for Dense Environments
Delivering high-speed transmissions through dual 2.5 Gbps ports, ER707-M2 is designed for multi-person environments such as retail stores, hotels, and offices. Enjoy a blazing-fast network experience while working from home.
6× WAN Ports & 1 USB WAN for Mobile Broadband
Empowered with up to 6× WAN SFP and RJ45 ports, ER707-M2 supports various internet access.△ Multi-WAN Load Balancing distributes data streams based on the bandwidth proportion of every WAN port to increase the utilization rate of multi-line broadband.
Connect a 4G/3G modem to the USB 2.0 port for a LTE WAN backup.
Abundant Security Features
Характеристики
| СИГУРНОСТ | Контрол на достъпа: Source/Destination IP Based Access Control Filtering: • WEB Group Filtering§ · • URL Filtering · • Web Security§ ARP Inspection: • Sending GARP Packets§ · • ARP Scanning§ · • IP-MAC Binding§ Attack Defense: • TCP/UDP/ICMP Flood Defense · • Block TCP Scan (Stealth FIN/Xmas/Null) · • Block Ping from WAN |

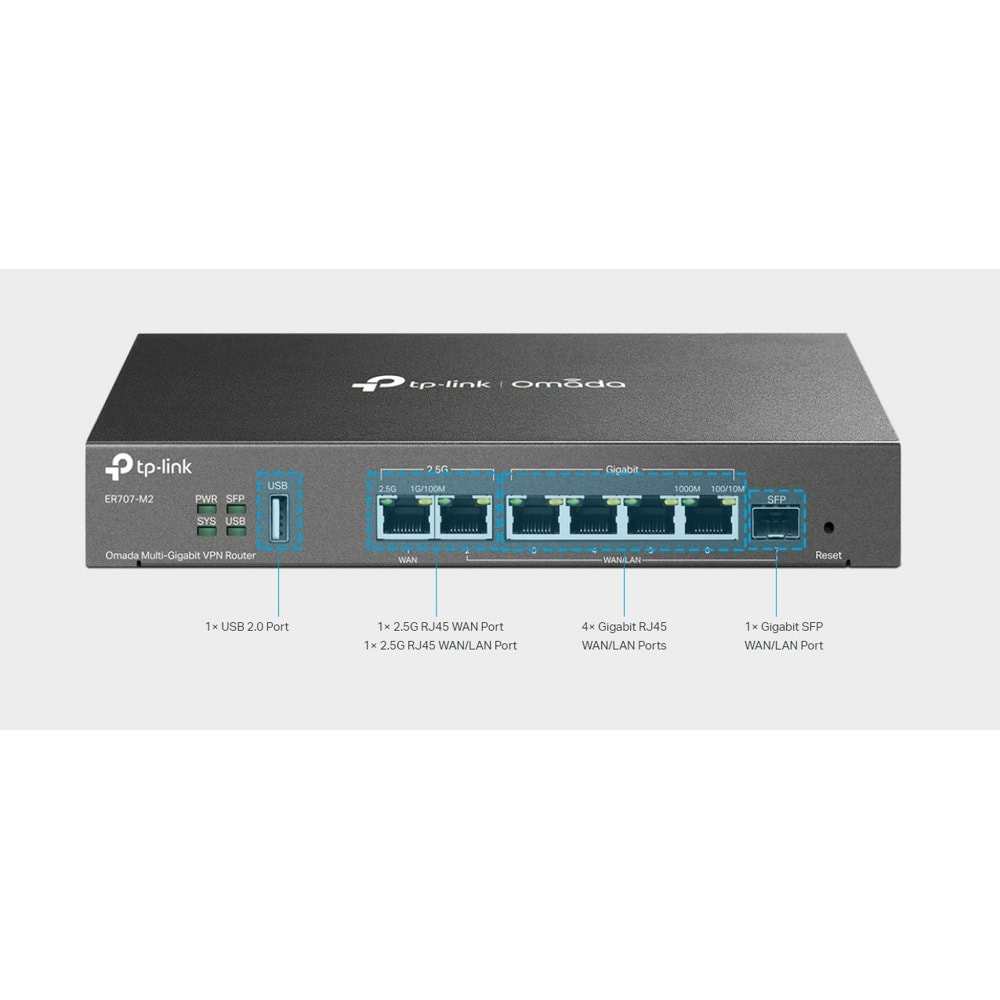

| ХАРДУЕРНИ ХАРАКТЕРИСТИКИ | Стандарти и протоколи: • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q， IEEE802.3bz · • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN Интерфейс: • 1× 2.5G RJ45 WAN Port · • 1× 2.5G RJ45 WAN/LAN Port · • 1× Gigabit SFP WAN/LAN Port · • 4× Gigabit RJ45 WAN/LAN Ports · • 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle) Мрежова медия: • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) · • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) · • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) · • 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) Брой вентилатори: Fanless Бутон: Reset Button Захранване: 12V/1.5A Adapter PoE Budget: - Flash: 128MB NAND DRAM: 1 GB DDR4 LED: PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act) Размери (Ш x Д x В ): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) · Защита: 4 kV surge protection Корпус: Steel Монтаж: Desktop/Wall Mounting Макс. консумация на енергия: 14.2 W (with USB2.0 connected) · 7.1 W (without USB2.0 connected) |
| ПРОИЗВОДИТЕЛНОСТ | IPS Throughput: TCP: 208 Mbps; · UDP: 161 Mbps DPI Throughput: TCP: 1823 Mbps; · UDP: 1272 Mbps · Concurrent Session: 500,000 New Sessions /Second: 6,000 NAT (Static IP): 2365.17 Mbps / 2364.45 Mbps NAT(DHCP): 2364.45 Mbps / 2366.04 Mbps NAT(PPPoE): 2347.14 Mbps / 2348.29 Mbps NAT (L2TP): 1308.86 Mbps / 974.10 Mbps NAT (PPTP): 1236.27 Mbps / 1280.99 Mbps IPsec VPN Throughput: • ESP-SHA1-AES256: 673.3 Mbps · • ESP-SHA256-AES256: 650.2 Mbps · • ESP-SHA384-AES256: 629.3 Mbps · • ESP-SHA512-AES256: 633.8 Mbps L2TP VPN Throughput: • Unencrypted: 1243.7 Mbps · • Encrypted: 561.0 Mbps SSL VPN Throughput: 132.24 Mbps 66 Byte Packet forwarding rate: 1832.69 Mbps / 1741.84 Mbps 1,518 Byte Packet forwarding rate: 2461.18 Mbps / 2457.32 Mbps |
| BASIC FUNCTIONS | WAN Connection Type: • IPv4_Static IP · • IPv4_Dynamic IP · • IPv4_PPPOE · • IPv4_L2TP · • IPv4_PPTP · • IPv6_PPP · • IPv6_DHCPv6 · • IPv6_Static IP · • IPv6_6in4 · • IPv6_Pass-Through · • Mobile Broadband: 4G/3G modem for backup via USB port MAC Clone: Modify WAN/LAN MAC Address† DHCP: • DHCP Server · • DHCPv6 PD Server (only in Standalone Mode) · • DHCP Options Customization · • DHCP Address Reservation · • Multi-IP Interfaces* · • Multi-Net DHCP* IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode VLAN: 802.1Q VLAN IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FUNCTIONS | Advanced Routing: • Static Routing · • Policy Routing · • RIP (only in Standalone Mode) · • OSPF (only in Standalone Mode) Bandwidth Control: • IP/Port-based Bandwidth Control · • Guarantee & Limited Bandwidth Load Balance: • Intelligent Load Balance · • Application Optimized Routing · • Link Backup (Timing§, Failover) · • Online Detection NAT: • One-to-One NAT§ · • Multi-Net NAT · • Port Forwarding · • Port Triggering§ · • NAT-DMZ · • FTP/H.323/SIP/IPSec/PPTP ALG · • UPnP Session Limit: IP-based Session Limit |
| VPN | IPsec VPN: • 100 IPSec VPN Tunnels · • LAN-to-LAN, Client-to-LAN · • Main, Aggressive Negotiation Mode · • DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm · • IKEv1/v2 · • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm · • NAT Traversal (NAT-T) · • Dead Peer Detection (DPD) · • Perfect Forward Secrecy (PFS) PPTP VPN: • PPTP VPN Server · • PPTP VPN Clients (12) · • 60 Tunnels (Shared with L2TP) · • PPTP with MPPE Encryption L2TP VPN: • L2TP VPN Server · • L2TP VPN Clients (12) · • 60 Tunnels (Shared with PPTP) · • L2TP over IPSec OpenVPN: • OpenVPN Server · • OpenVPN Clients (6) · • 66 OpenVPN Tunnels* |
| AUTHENTICATION | Web Authentication: • No Authentication · • Simple Password* · • Hotspot (Local User/Voucher* /SMS*/Radius*) · • External Radius Server · • External Portal Server* · • LDAP |
| MANAGEMENT | Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management: • Omada Cloud-Based Controller · • Omada Hardware Controller (OC300) · • Omada Hardware Controller (OC200) · • Omada Software Controller Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) Maintenance: • Web Management Interface · • Remote Management · • Export & Import Configuration · • SNMP v1/v2c/v3* · • Diagnostics (Ping & Traceroute)§ · • NTP Synchronize§ · • Port Mirroring · • CLI (only in Standalone Mode) · • Syslog Support Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller. Management Features: • Automatic Device Discovery · • Intelligent Network Monitoring · • Abnormal Event Warnings · • Unified Configuration · • Reboot Schedule · • Captive Portal Configuration · • ZTP (Zero-Touch Provisioning) |
