Рутер TP-Link Omada ER706W

TP-Link Omada ER706W

Flexible Wi-Fi Coverage through Business Wired Connectivity

Ubiquitous Connectivity Starts with WiFi 6

ER706W is an enterprise-grade dual-band wireless router. It’s ideal for remote administration that requires high performance due to the revolutionary combination of the latest WiFi 6 technologies, including HE160, OFDMA, 1024 QAM, and more. Simultaneously supporting 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, ER706W’s concurrent transmission rate reaches up to 3 Gbps. Bufferless network experience is at your fingertips.

Up to Five WAN Ports & One USB 3.0 Port for Mobile Broadband

Up to 5× WAN SFP and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. The USB 3.0 port delivers a higher transmission rate for mobile connectivity. Mobile broadband via a 4G/3G modem is also supported for WAN backup by connecting to the USB port.

Professional Hardware Empowers the Wireless Future

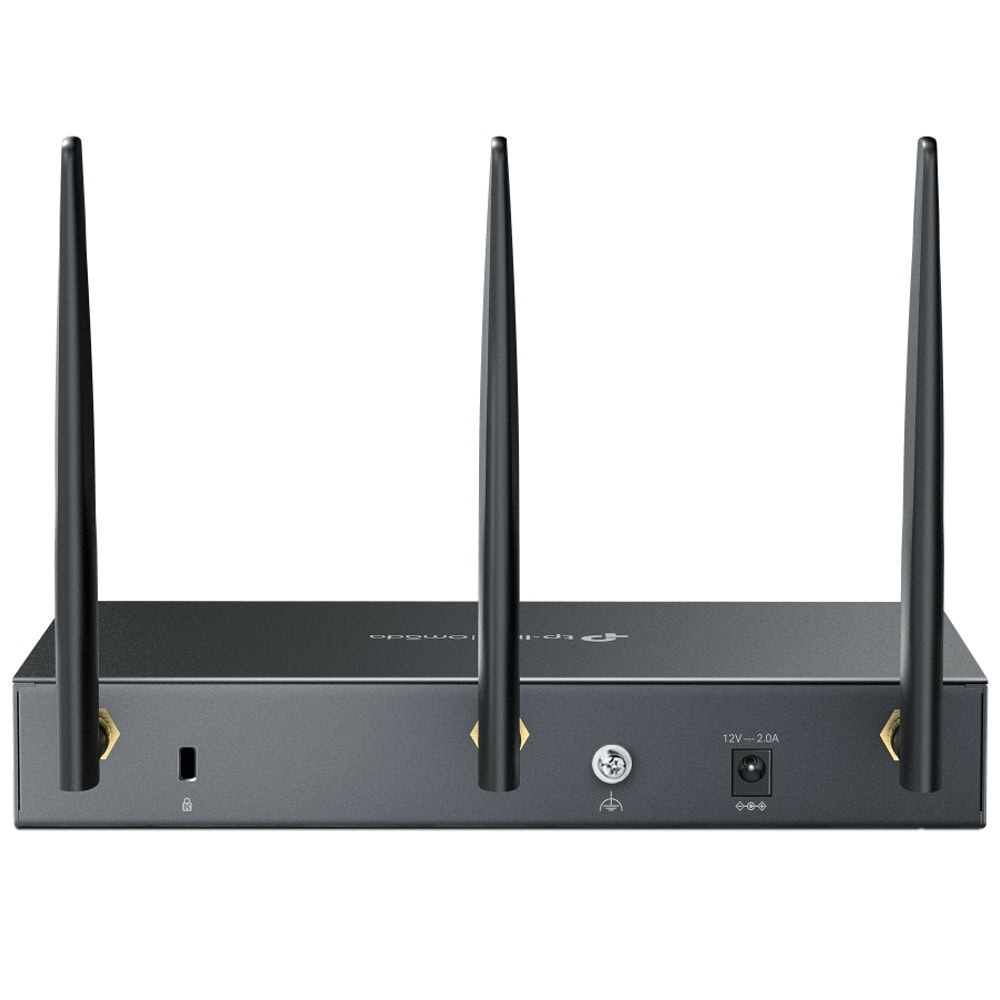

The triple external detachable antenna design grants ER706W excellent wireless coverage, reliable signal strength, and higher receiving sensitivity. It’s easier for users to adjust the quantity and angle of antennas to fit various network environments.

ER706W adopts steel material for higher thermal conductivity and heat dissipation, ensuring operation reliability.

High-Security VPN

Pass-through traffic and a variety of VPN protocols, such as IPSec/SSL/Wireguard/PPTP/L2TP VPN, are available on ER706W, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features a built-in hardware engine to boost VPN performance.

СИГУРНОСТ

Контрол на достъпаSource/Destination IP Based Access Control

Filtering• Web Group Filtering† • URL Filtering • Web Security

ARP Inspection• Sending GARP Packets • ARP Scanning† • IP-MAC Binding

Attack Defense• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

ХАРДУЕРНИ ХАРАКТЕРИСТИКИ

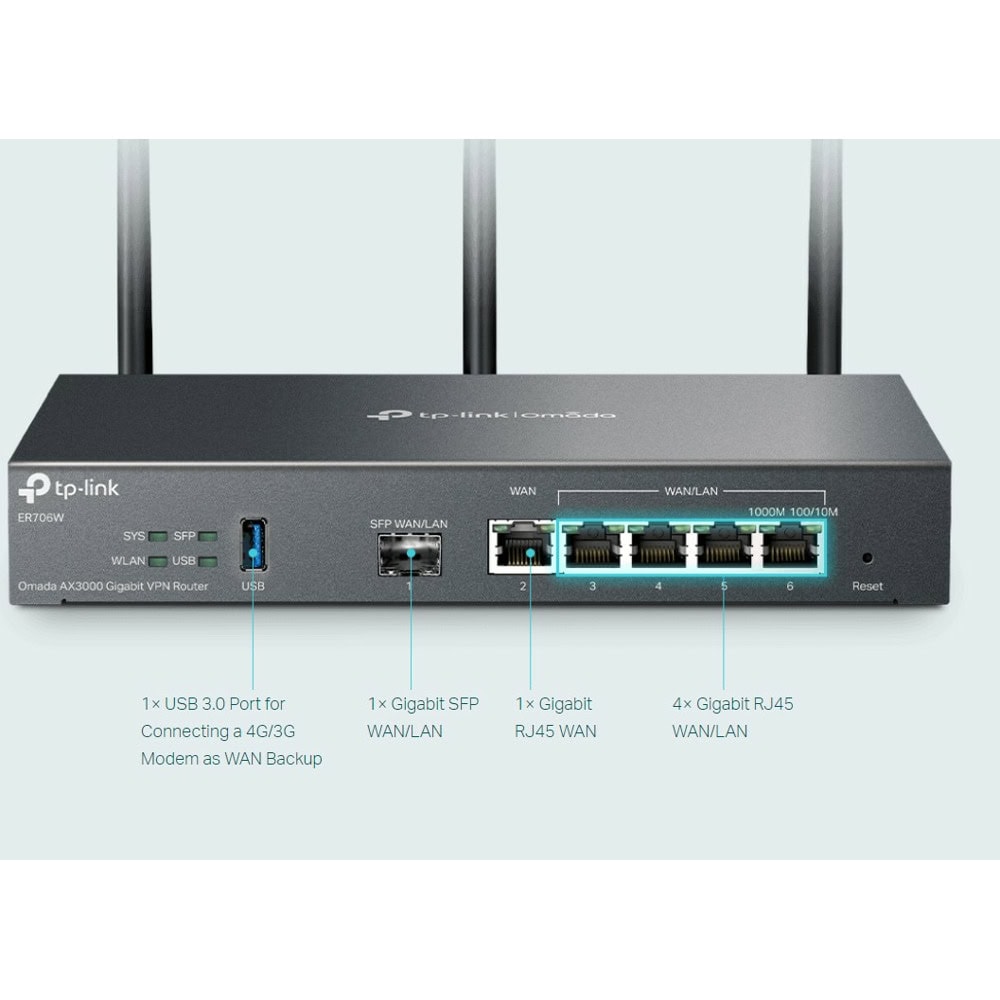

Интерфейс• 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports • 1 USB3.0 (supports USB LTE dongle and USB Storage)

БутонReset Button

Захранване12VDC / 2A Power Adapter

Wi-Fi Frequency & Signal Rate• 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160)

Flash128 MB NAND

DRAM512 MB DDR4

Размери (Ш x Д x В )226 × 131 × 35 mm (Antenna dimensions are not included)

Антена• 2.4 GHz: 2x 3 dBi dual-band detachable antennas • 5 GHz: 3x 4.5 dBi dual-band detachable antennas
