TP-Link
Рутер TP-Link ER8411
Артикул №: 1000028154
Категория:
Рутери Жични
658,99 €
✓ Налично във външен склад
ER8411
Omada VPN Router with 10G Ports
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*3, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Two 10GE SFP+ Ports: 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
- Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband 1.
- Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH.
- Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.

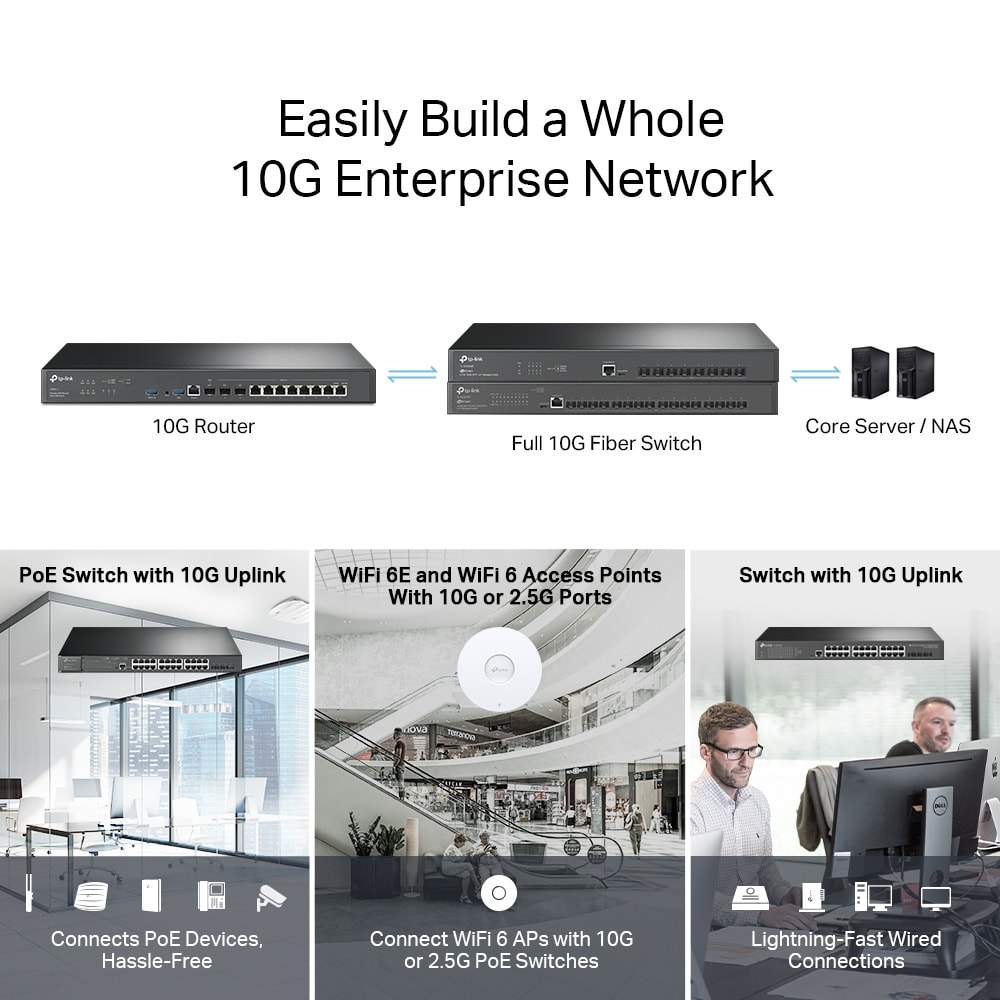

Future-Proof Your Business with 10G Enterprise Connectivity
Omada VPN Router with 10G Ports

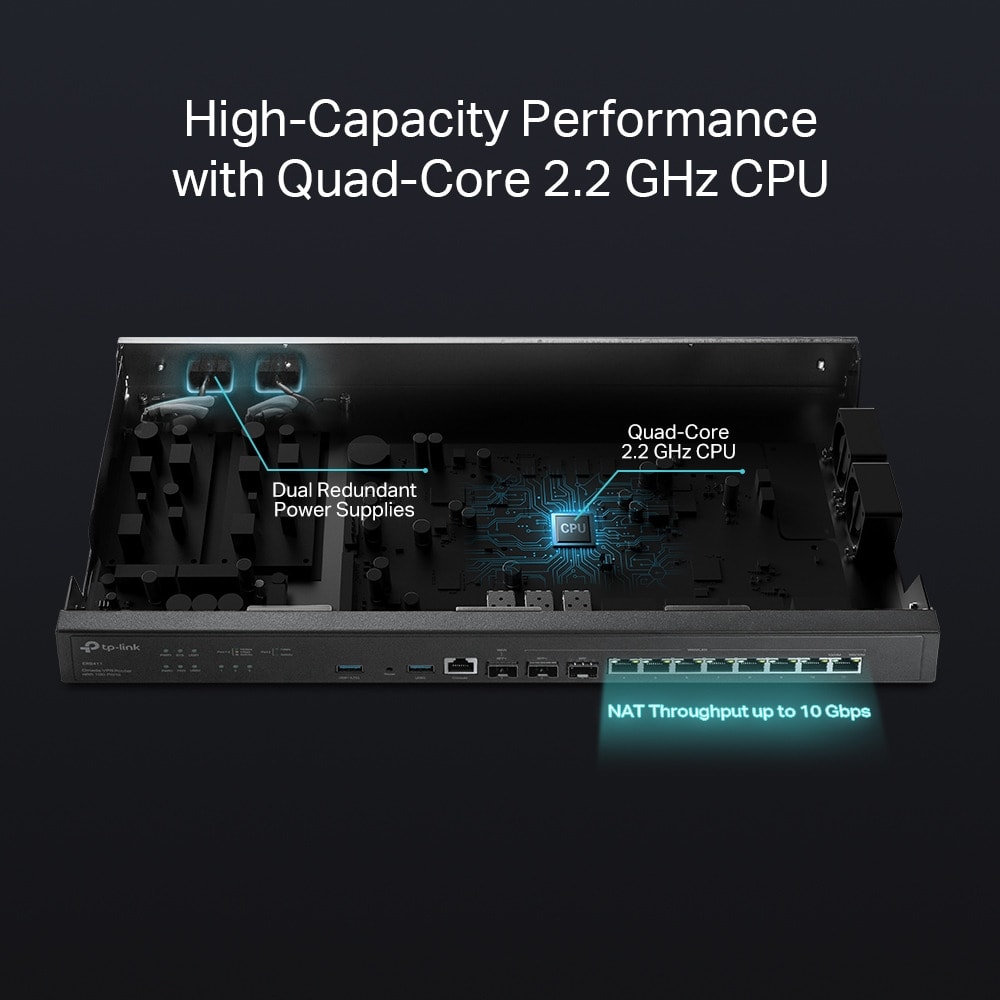

High-Capacity Performance with Quad-Core 2.2 GHz CPU
Manage your entire business network with the right amount of processing power. Dual redundant power supplies further ensure carrier-class reliability for enterprise networking.

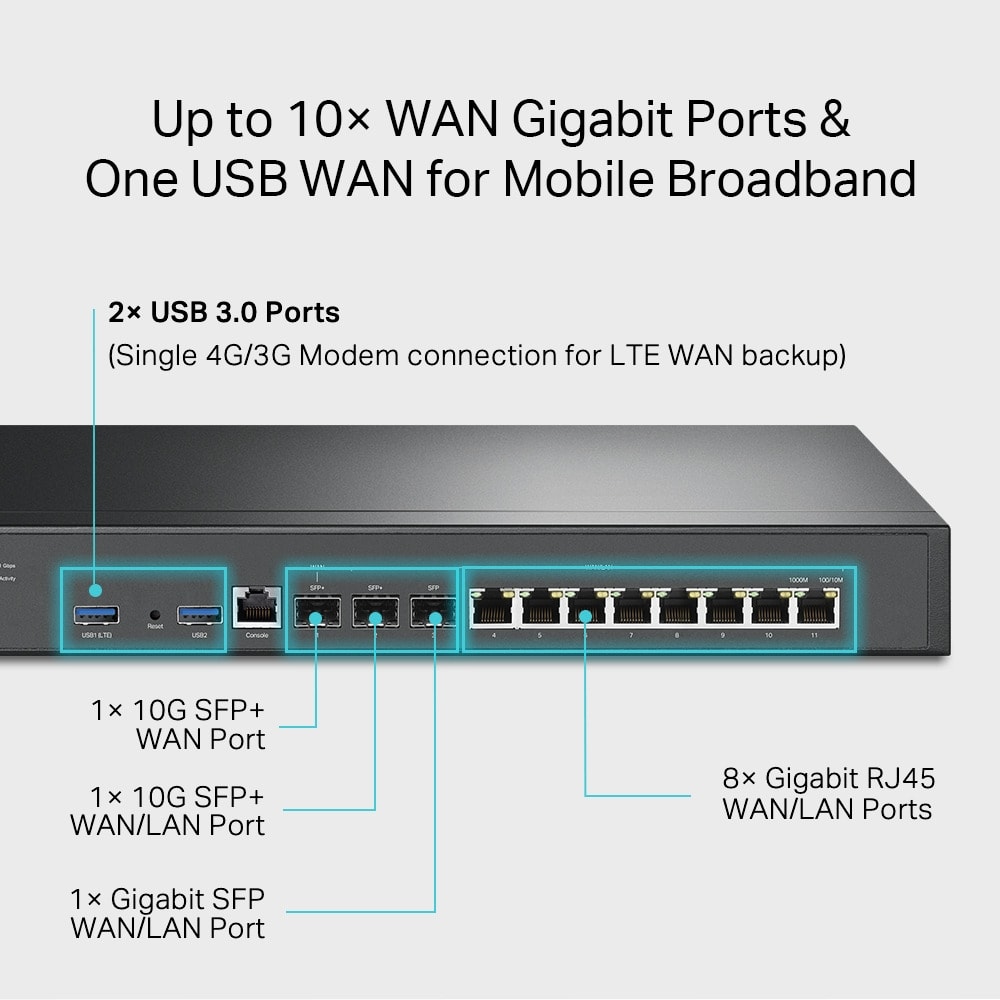

10× WAN Ports & One USB WAN for Mobile Broadband
Up to 10× WAN SFP+, SFP, and RJ45 ports allow the router to support various internet access requirements.*1 Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup.
Note: At least one of the ten WAN/LAN ports needs to function as a LAN.

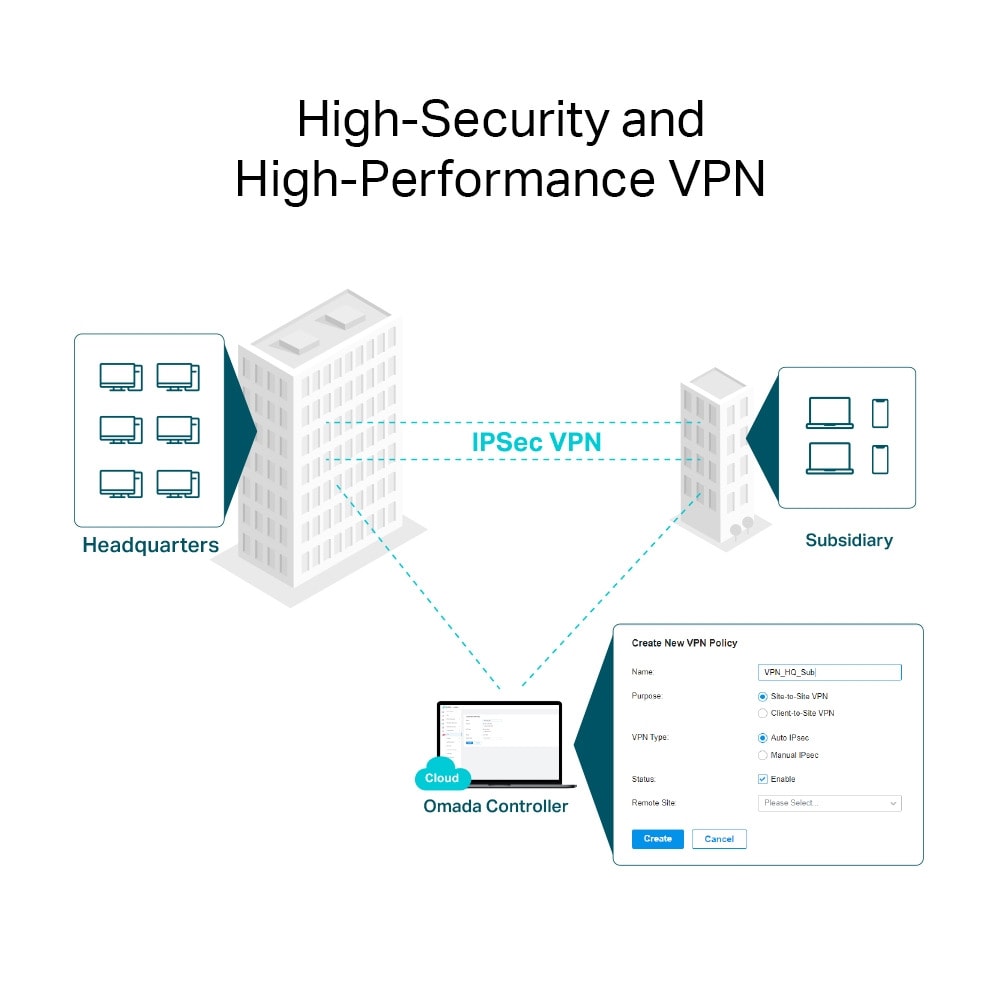

High-Security and High-Performance VPN
ER8411 supports pass-through traffic and multiple VPN protocols, including SSL, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.*2 The router also features built-in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.
Robust Security Features
SECURITY
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • WEB Group Filtering*5 · • URL Filtering · • Web Security*5 |
| ARP Inspection | • Sending GARP Packets*5 · • ARP Scanning*5 · • IP-MAC Binding*5 |
| Attack Defense | • TCP/UDP/ICMP Flood Defense · • Block TCP Scan (Stealth FIN/Xmas/Null) · • Block Ping from WAN |
HARDWARE FEATURES
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q · • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| Интерфейс | • 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN) · • 1× 1GE SFP WAN/LAN Ports · • 8× 1GE RJ45 WAN/LAN Ports · • 1× RJ45 Console Ports · • 2× USB Ports (Connecting 4G/3G Modem as WAN Backup) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) · EIA/TIA-568 100Ω STP (Max 100 m) · • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) · EIA/TIA-568 100Ω STP (Max 100 m) · • 1000BASE-T: UTP category 5e, 6 cable (Max 100 m) |
| Fan Quantity | 2 |
| Button | Reset Button |
| Захранване | Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz) |
| Flash | 4MB SPI NOR + 256 MB NAND |
| DRAM | 4 GB DDR4 |
| LED | PWR, SYS, WAN, LAN, USB, FAN |
| Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Защита | 4 kV surge protection |
| Enclosure | Steel |
| Монтаж | Rack Mountable |
| Max Power Consumption | • 26.36 W (with USB 3.0 connected) · • 19.12 W (without USB 3.0 connected) |
PERFORMANCE
| WireGuard VPN | 1411 Mbps |
| Concurrent Session | 2,300,000 |
| New Sessions /Second | 20,000 |
| NAT (Static IP) | • Upload: 9445.82 Mbps · • Download: 9449.26 Mbps |
| NAT(DHCP) | • Upload: 9426.83 Mbps · • Download: 9426.20 Mbps |
| NAT(PPPoE) | • Upload: 9413.96 Mbps · • Download: 9102.01 Mbps |
| NAT (L2TP) | • Upload: 4230.62 Mbps · • Download: 4169.53 Mbps |
| NAT (PPTP) | • Upload: 3933.86 Mbps · • Download: 3821.97 Mbps |
| 64 Byte Packet Forwarding Rate | • Upload: 1080 Mbps · • Download: 1030 Mbps |
| IPsec VPN Throughput | • SHA1-AES256: 2140.45 Mbps · • SHA2-AES256: 2080.20 Mbps |
| OpenVPN | 1665.64 Mbps |
| L2TP VPN Throughput | • Unencrypted: 5013.50 Mbps · • Encrypted: 2274.74 Mbps |
| PPTP VPN Throughput | • Unencrypted: 3933.86 Mbps · • Encrypted: 3821.97Mbps |
| SSL VPN Throughput | 1511.10 Mbps |
| 1,518 Byte Packet forwarding rate | • Upload: 9970 Mbps · • Download: 9970 Mbps |
BASIC FUNCTIONS
| WAN Connection Type | • Static/Dynamic IP · • PPPoE · • PPTP · • L2TP · • 6to4 Tunnel · • Pass-Through · • Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Clone | Modify WAN/LAN MAC Address*4 |
| DHCP | • DHCP Server/Client · • DHCP Address Reservation · • Multi-net DHCP · • Multi-IP Interfaces |
| IPv6 | WAN Connection |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
ADVANCED FUNCTIONS
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing · • Policy Routing |
| Bandwidth Control | • IP/Port-based Bandwidth Control · • Guarantee & Limited Bandwidth |
| Load Balance | • Intelligent Load Balance · • Application Optimized Routing · • Link Backup (Timing*5, Failover) · • Online Detection |
| NAT | • One-to-One NAT*5 · • Multi-Net NAT · • Virtual Server · • Port Triggering*5 · • NAT-DMZ · • FTP/H.323/SIP/IPSec/PPTP ALG · • UPnP |
| Security | • SPI Firewall · • VPN Passthrough · • FTP/H.323/PPTP/SIP/IPsec ALG · • DoS Defence, Ping of Death · • Local Management |
| Session Limit | IP-based Session Limit |
VPN
| SSL VPN | • SSL VPN Server · • SSL VPN Client · • 500 OpenVPN Tunnels |
| IPsec VPN | • 300 IPSec VPN Tunnels · • LAN-to-LAN, Client-to-LAN · • Main, Aggressive Negotiation Mode · • DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm · • IKE v1/v2 · • MD5, SHA1 Authentication Algorithm · • NAT Traversal (NAT-T) · • Dead Peer Detection (DPD) · • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server · • PPTP VPN Client (32)*6 · • 300 Tunnels (Shared with L2TP) · • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server · • L2TP VPN Client (32)*6 · • 300 Tunnels (Shared with PPTP) · • L2TP over IPSec |
| OpenVPN | • OpenVPN Server · • OpenVPN Client (10)*6 · • 110 OpenVPN Tunnels |
AUTHENTICATION
| Web Authentication | • No Authentication · • Simple Password*2 · • Hotspot（Local User / Voucher*2 / SMS*2 / Radius*2） · • External Radius Sever · • External Portal Sever*2 · • Facebook Check-In*2 · • Instagram Follow*2 |
MANAGEMENT
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller |
| Centralized Management | • Omada Hardware Controller (OC300) · • Omada Hardware Controller (OC200) · • Omada Software Controller · • Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | • Web Management Interface · • Remote Management · • Export & Import Configuration · • SNMP v1/v2c/v3 · • Diagnostics (Ping & Traceroute)*5 · • NTP Synchronize*5 · • Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| Management Features | • Automatic Device Discovery · • Intelligent Network Monitoring · • Abnormal Event Warnings · • Unified Configuration · • Reboot Schedule · • Captive Portal Configuration |
OTHERS
| Сертификация | CE, FCC, RoHS |
| Съдържание на пакета | • Omada 10G Multi-WAN Security Gateway ER8411 · • Power Cord · • Rack-Mount Kit · • Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); · • Storage Temperature: -40–70 ℃ (-40–158 ℉) · • Operating Humidity: 10–90% RH non-condensing · • Storage Humidity: 5–90% RH non-condensing |
